2004 Toyota Celica GT, StandardFACTORY OEM SERVICE PROCEDURE
SFI System: Injector: Removal
- REMOVAL NO. 2 CYLINDER HEAD COVER
- 1ZZ-FE: REMOVE PCV HOSE

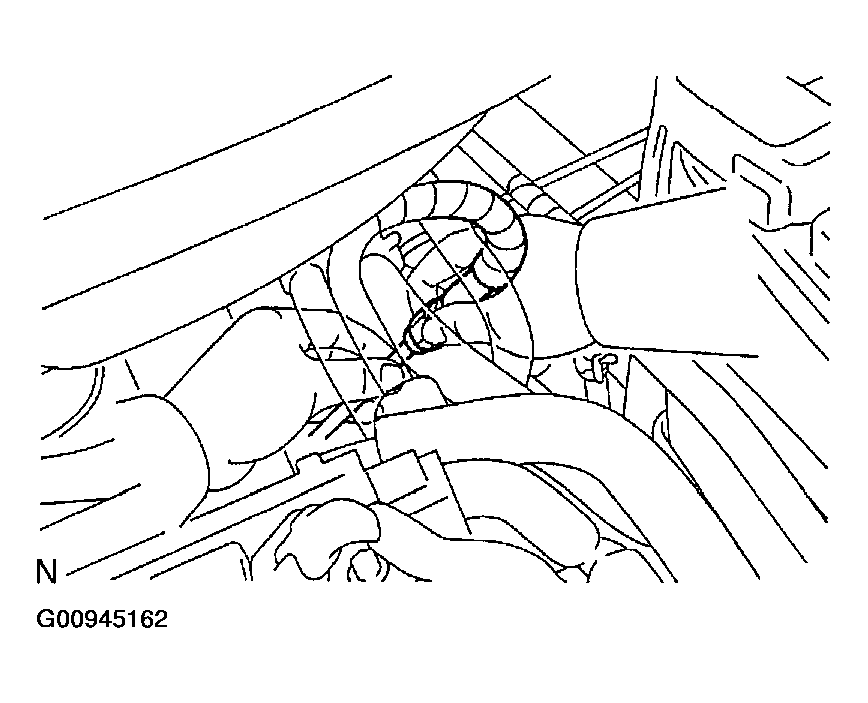

- DISCONNECT FUEL TUBE
- Remove the fuel pipe clamp.
- Disconnect the fuel tube (fuel tube connector) from the fuel pipe.
CAUTION:- Perform disconnecting operations of the fuel tube connector (quick type) after observing the precautions.
- As there is retained pressure in the fuel pipe line, prevent it from splashing inside the engine compartment.
