2004 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

  1. Check voltage between terminals +B and E1 of ECM connectors.

    PREPARATION:

    1. Remove the glove compartment (See ENGINE CONTROL MODULE (ECM) ).
    2. Turn the ignition switch ON.

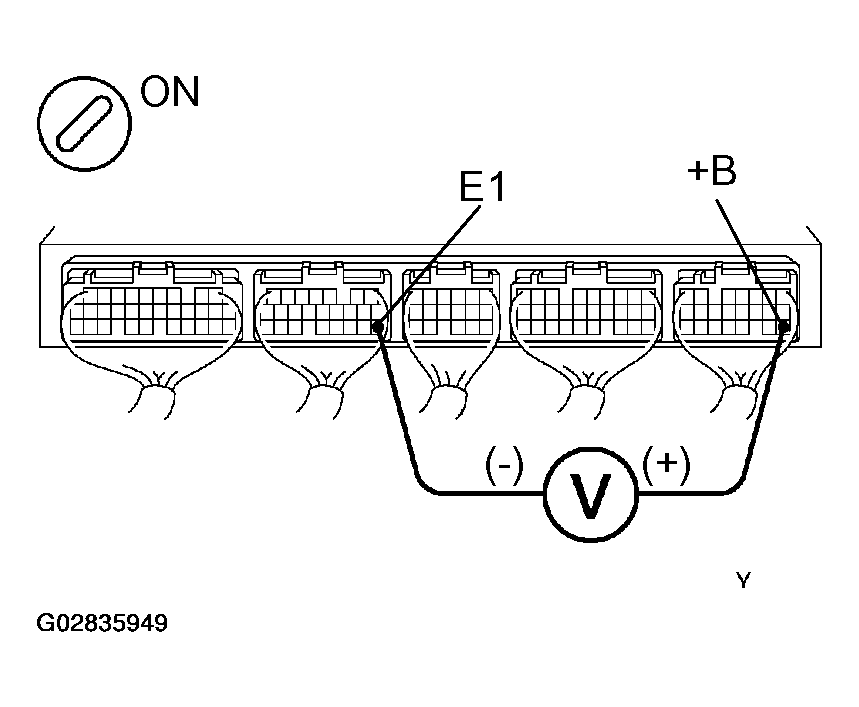

      Fig 1: Checking Voltage Terminals +B And E1 Of ECM Connectors
      G02835949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    CHECK:

    Measure the voltage between terminals +B and E1 of the ECM connectors.

    OK:

    Voltage: 9 - 14 V

    1. OK: Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
    2. NG: Go to next step.
  2. Check for open in harness and connector between terminal E1 of ECM and body ground (See  PROCEDURE  ).
    1. NG: Repair or replace harness or connector.
    2. OK: Go to next step.
  3. Check voltage between terminal IGSW of ECM connector and body ground.

    PREPARATION:

    1. Remove the glove compartment (See ENGINE CONTROL MODULE (ECM) ).
    2. Turn the ignition switch ON.

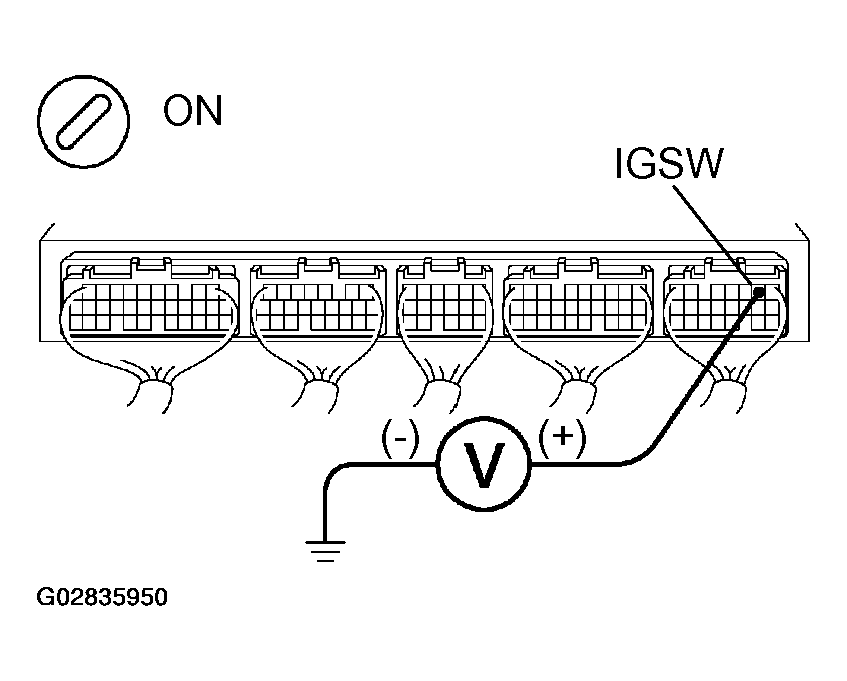

      Fig 2: Measuring Voltage Terminal IGSW Of ECM Connector & Body Ground
      G02835950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    CHECK:

    Measure the voltage between terminal IGSW of the ECM connector and body ground.

    OK:

    Voltage: 9 - 14 V

    1. OK: Go to Step   5 .
    2. NG: Go to next step.
  4. Check AM2 fuse (See  DTC P0351 IGNITION COIL "A" PRIMARY/SECONDARY CIRCUIT, DTC P0352: IGNITION COIL "B" PRIMARY/SECONDARY CIRCUIT, DTC P0353: IGNITION COIL "C" PRIMARY/SECONDARY CIRCUIT, DTC P0354: IGNITION COIL "D" PRIMARY/SECONDARY CIRCUIT, DTC P0355: IGNITION COIL "E" PRIMARY/SECONDARY CIRCUIT, DTC P0356: IGNITION COIL "F" PRIMARY/SECONDARY CIRCUIT  .
    1. NG: Check for short in all harness and components connected to AM2 fuse.
    2. OK: Go to next step.
  5. Check ignition switch (See  INSPECTION  ).
    1. NG: Replace ignition switch.
    2. OK: Check and repair harness and connector between battery and ignition switch, and ignition switch and ECM.
  6. Check voltage between terminal MREL of ECM connector and body ground.

    PREPARATION:

    1. Remove the glove compartment (See ENGINE CONTROL MODULE (ECM) ).
    2. Turn the ignition switch ON.

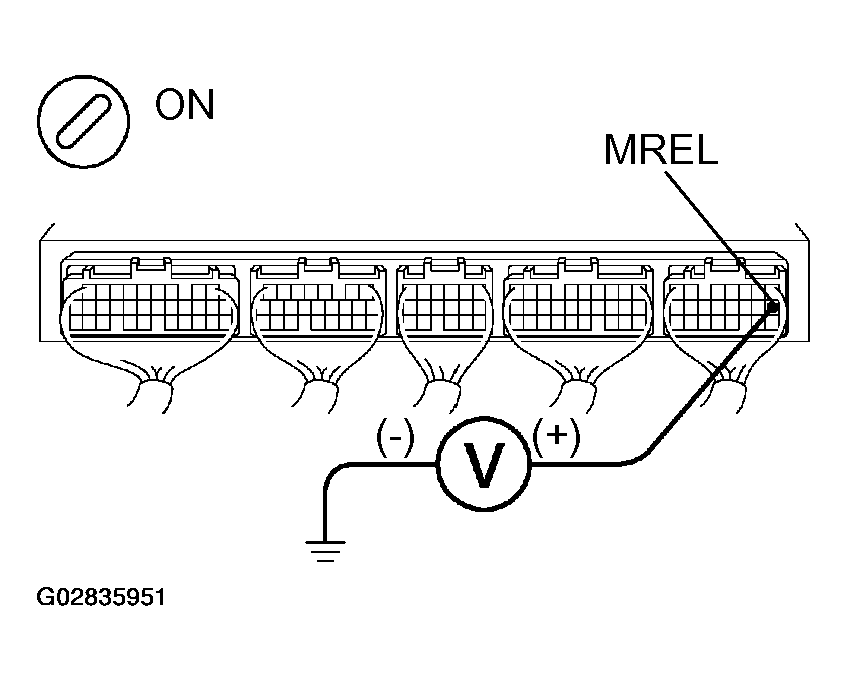

      Fig 3: Measuring Voltage Terminal MREL ECM Connector & Body Ground
      G02835951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    CHECK:

    Measure the voltage between terminal MREL of the ECM connector and body ground.

    OK:

    Voltage: 9 - 14V

    1. NG: Check and replace ECM (See  PROCEDURE  ).
    2. OK: Go to next step.
  7. Check EFI No.1 fuse (See  DTC P0560 SYSTEM VOLTAGE  , step 2).
    1. NG: Check for short in all harness and components connected to EFI No.1 fuse.
    2. OK: Go to next step.
  8. Check EFI No.2 fuse.

    PREPARATION:

    Remove the EFI No.2 fuse from the engine room J/B.

    CHECK:

    Check the continuity of the EFI No.2 fuse.

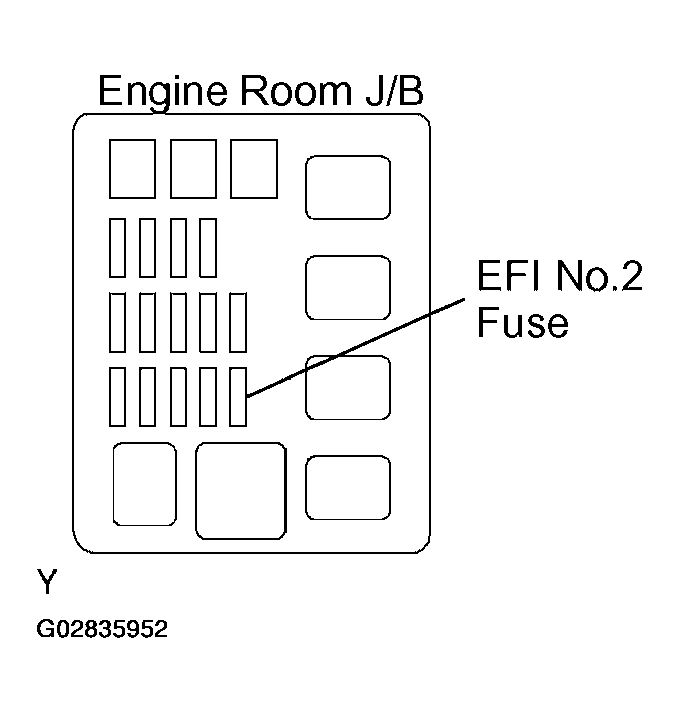

    Fig 4: Identifying Location Of EFI No. 2 fuse In Engine Room J/B
    G02835952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Continuity

    1. NG: Check for short in all harness and components connected to EFI No.2 fuse.
    2. OK: Go to next step.
  9. Check EFI main relay (Marking: EFI) (See  EFI MAIN RELAY  ).
    1. NG: Replace EFI main relay.
    2. OK: Go to next step.
  10. Check for open and short in harness and connector between terminal MREL of ECM and body ground (See  PROCEDURE  ).
    1. NG: Repair or replace harness or connector.
    2. OK: Check and repair harness or connector between EFI No.1 fuse and battery.
