Crankshaft Position Sensor: Replacement
- REMOVE RH FENDER APRON SEAL

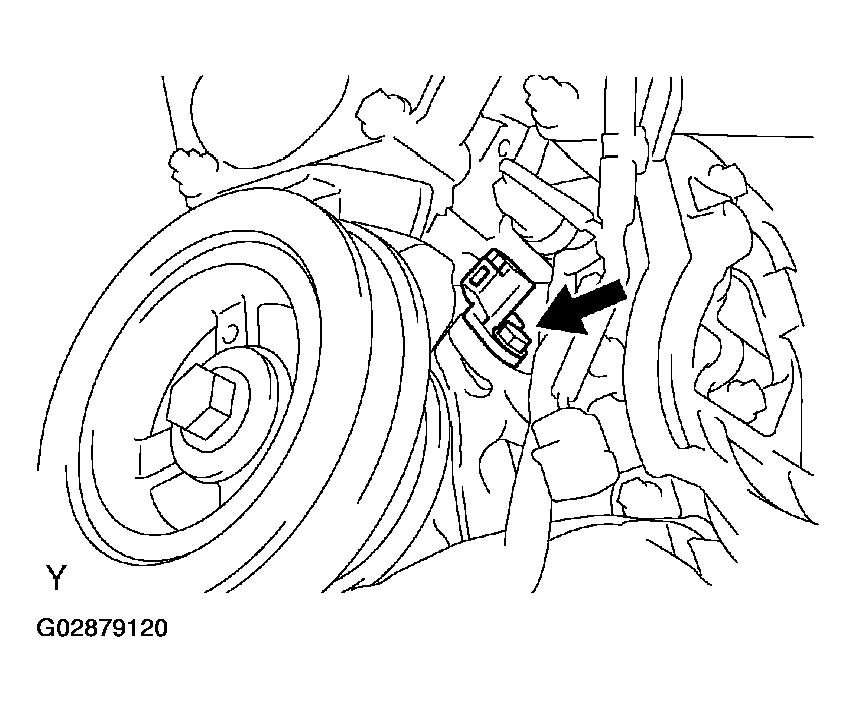

- REMOVE CRANKSHAFT POSITION SENSOR
- Disconnect the crankshaft position sensor connector.
- Remove the bolt and crankshaft position sensor.
- REINSTALL NEW CRANKSHAFT POSITION SENSOR
- Install a new crankshaft position sensor with the bolt.
Torque: 8 N.m (80 kgf.cm, 69 in.lbf)
- Connect the crankshaft position sensor connector.
- Install a new crankshaft position sensor with the bolt.
- REINSTALL RH FENDER APRON SEAL
