REMOVE V-BANK COVER
1. Using a 5 mm hexagon wrench, remove the 3 cap nuts.
2. Loosen the V-bank cover fastener counterclockwise.
3. Remove the V-bank cover.
REMOVE AIR CLEANER HOSE WITH RESONATOR
REMOVE CAMSHAFT POSITION SENSORS
1. Disconnect the 2 camshaft position sensor connectors.

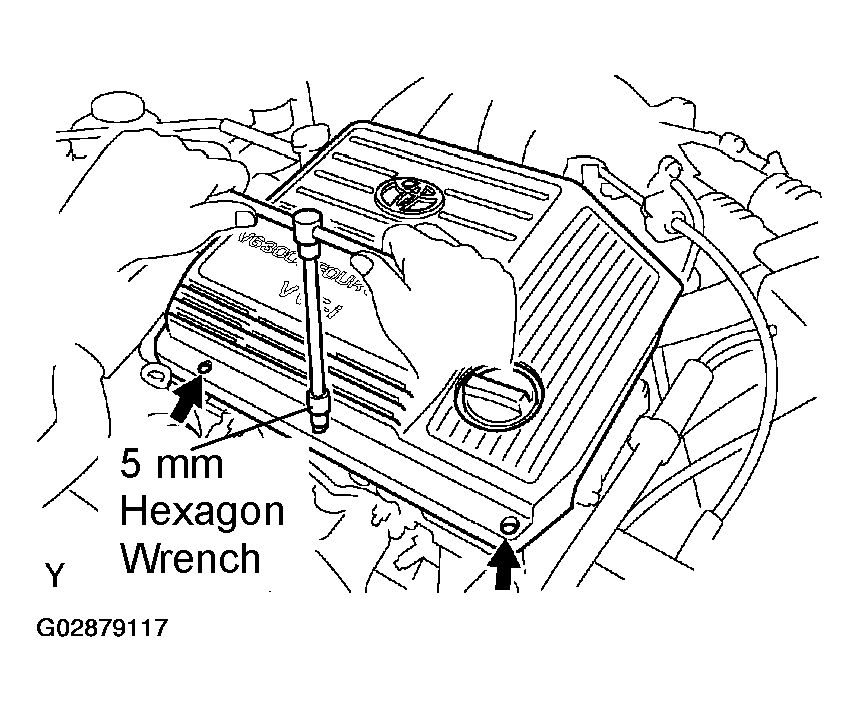

  Fig 1: Removing V-Bank Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and camshaft position sensor. Remove the 2 camshaft position sensors.
3. Remove the O-rings from the camshaft position sensors.
REINSTALL NEW CAMSHAFT POSITION SENSORS
1. Install new O-rings to new camshaft position sensors.
2. Install the camshaft position sensor with the bolt. Install the 2 camshaft position sensors.
  Torque: 8 N.m (80 kgf.cm, 69 in.lbf)
3. Connect the 2 camshaft position sensor connectors.
REINSTALL AIR CLEANER HOSE WITH RESONATOR
REINSTALL V-BANK COVER
1. Using 5 mm hexagon wrench, install the V-bank cover with the 3 cap nuts.
2. Press down the V-bank cover fastener.

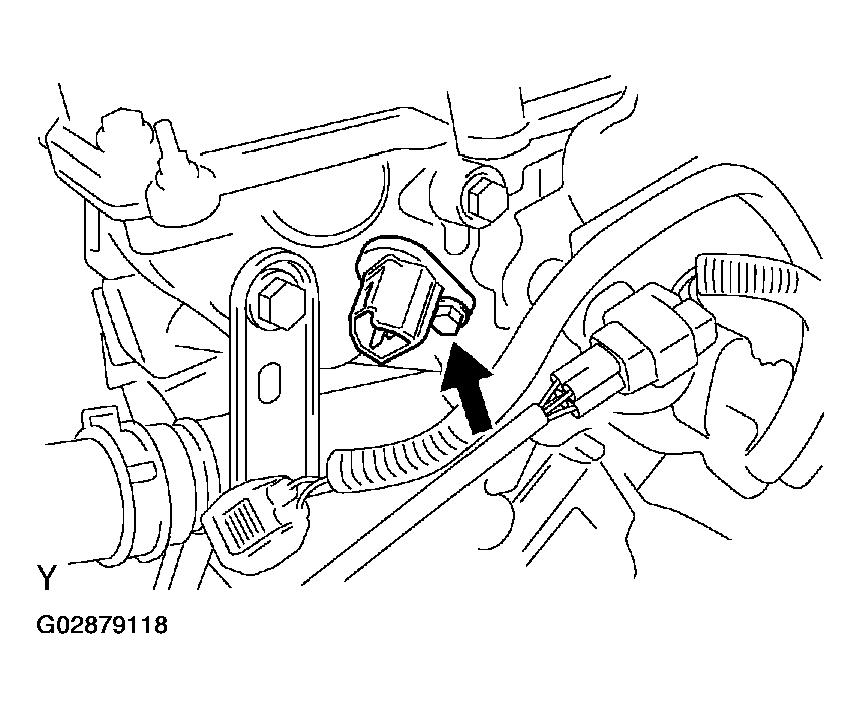

Fig 2: Installing Camshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
