REMOVE V-BANK COVER, AND EMISSION CONTROL VALVE SET
REMOVE VSV
1. Disconnect the 2 vacuum hoses from the VSV.
2. Remove the screw and VSV.
INSPECT VSV FOR OPEN CIRCUIT
Using an ohmmeter, check that there is continuity between each terminals.

Resistance: 33 - 39 Ω at 20°C (68°F)

If there is no continuity, replace the VSV.

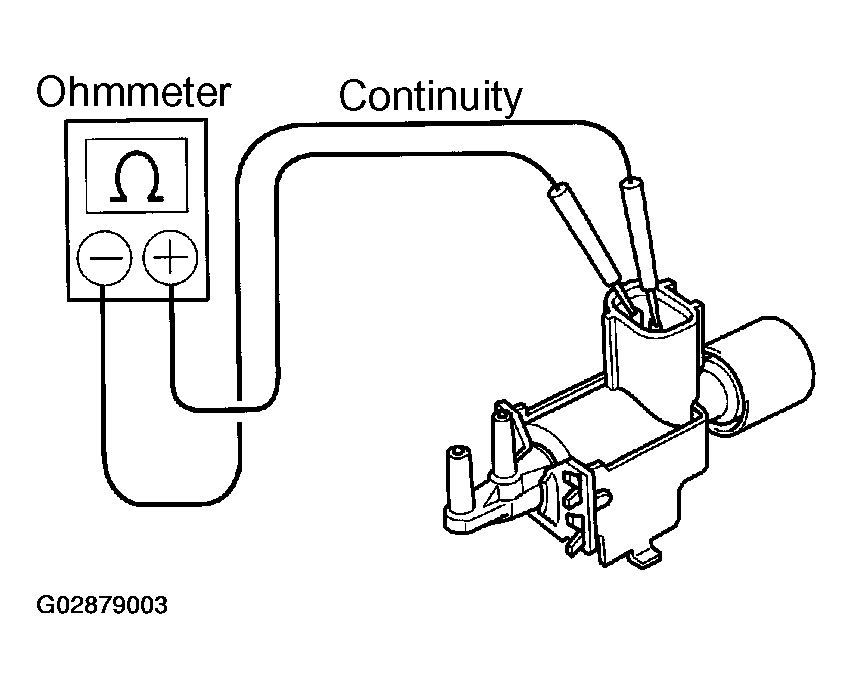

Fig 1: Inspecting VSV For Open Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT VSV FOR GROUND
Using an ohmmeter, check that there is no continuity between each terminal and the body.

If there is continuity, replace the VSV.

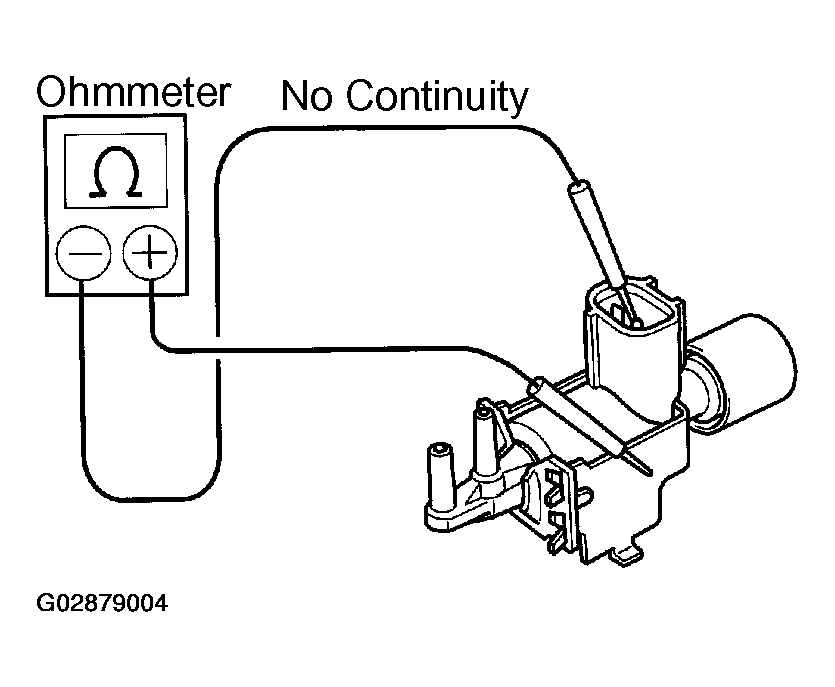

Fig 2: Inspecting VSV For Ground
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT VSV OPERATION
1. Check that air flows from port E to the filter.

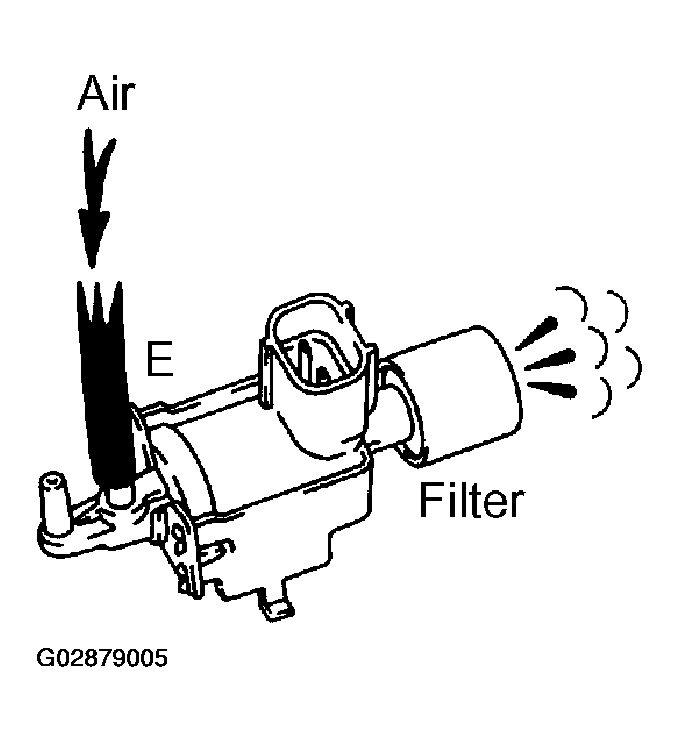

  Fig 3: Inspecting VSV Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery voltage across the terminals.
3. Check that air flows from port E to port F.
If operation is not as specified, replace the VSV.
REINSTALL VSV
1. Install the VSV with the screw.
2. Connect the 2 vacuum to the VSV.

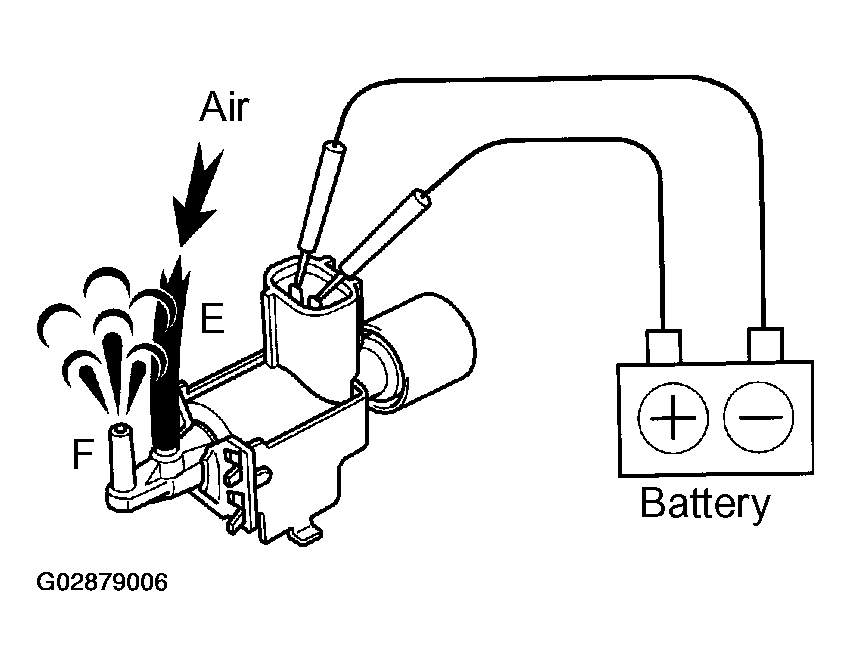

Fig 4: Checking That Air Flows From Port E To Port F
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REINSTALL EMISSION CONTROL VALVE SET
REINSTALL V-BANK COVER
