2004 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE

Throttle Body: Inspection

NOTE: In case of changing, removing or installing the throttle body or IAC valve, must do this.

INSPECT THROTTLE BODY
1. Check that there is no clearance between each throttle stop screw and the throttle lever when applying the vacuum (53.3 kPa (400 mmHg, 15.7 in.Hg)) to the throttle opener using a MITYVAC (Hand-Held Vacuum Pump).
  Standard: Must have no clearance

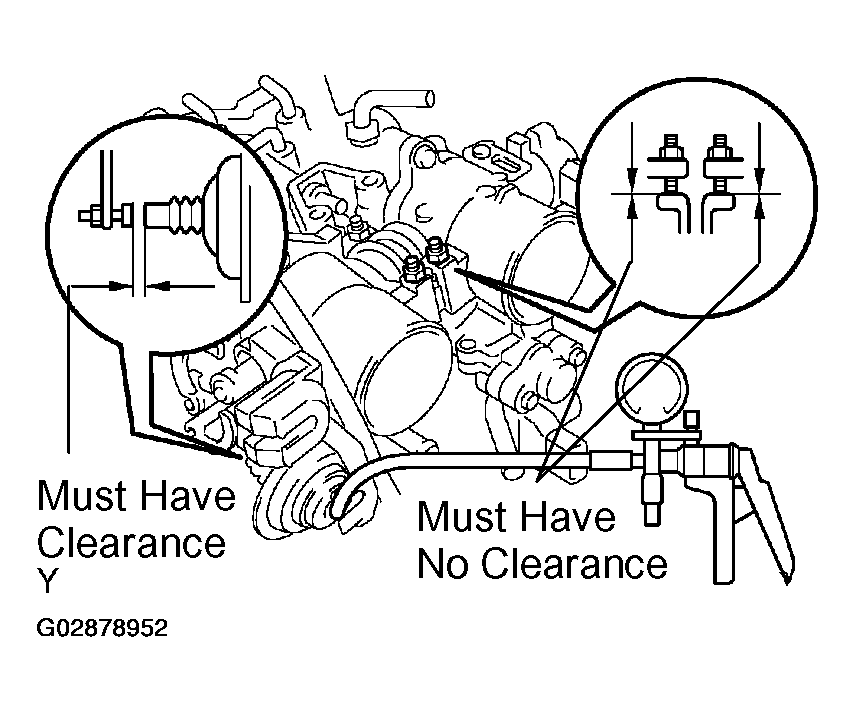

  Fig 1: Checking Clearance Between Each Throttle Stop Screw And Throttle Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
