Fuel Pressure Regulator: Removal
- REMOVE FUEL PUMP ASSEMBLY FROM FUEL TANK (See REMOVAL )

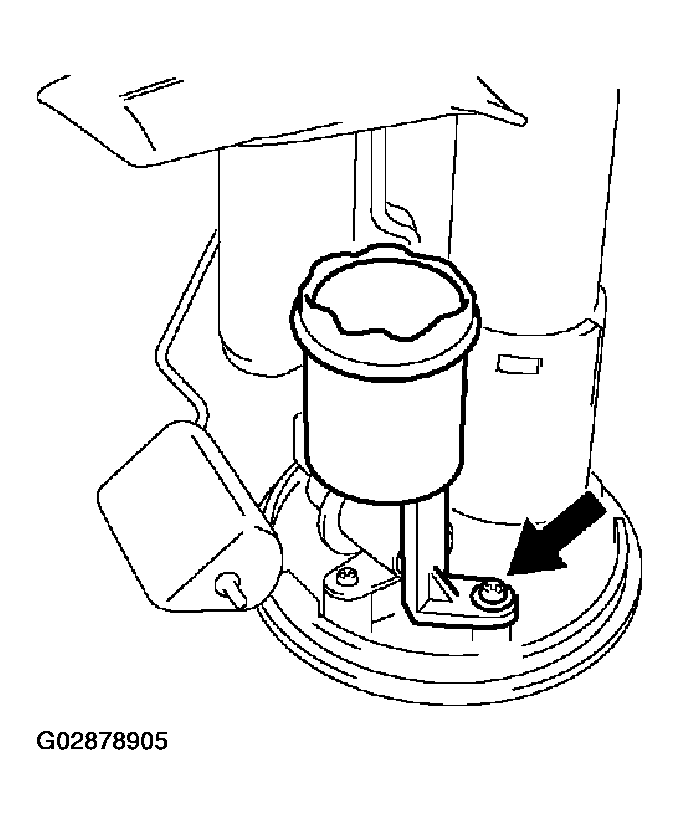

- REMOVE FUEL FILTER
- Remove the screw, and pull out the fuel filter.
Torque: 2.0 N.m (20 kgf.cm, 17 in.lbf)
- Remove the O-ring from the fuel filter.
HINT:
At the time of installation, please refer to the following items. Apply a light coat of gasoline to a new O-ring, and install it to the fuel filter.
- Remove the screw, and pull out the fuel filter.

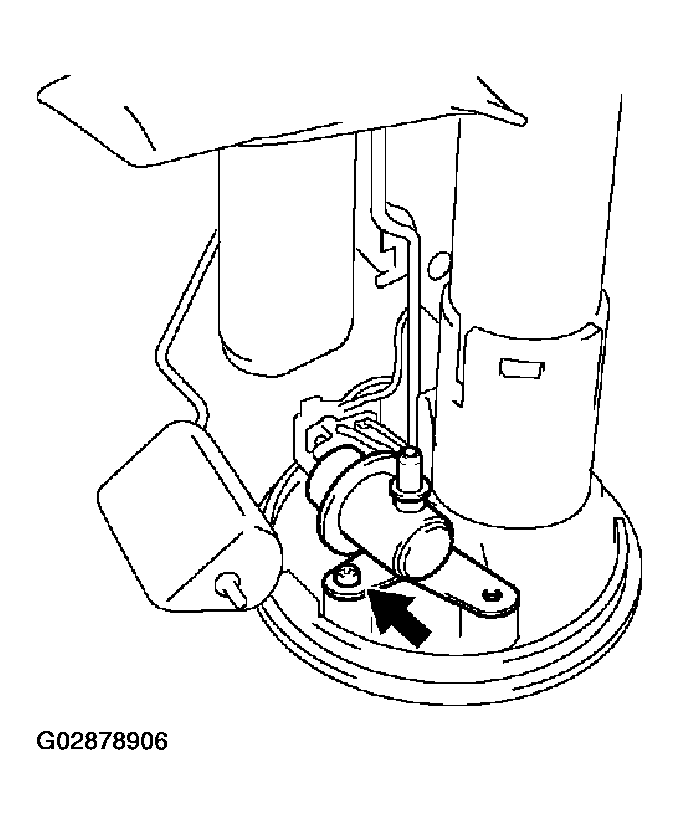

- REMOVE FUEL PRESSURE REGULATOR
- Remove the screw, and pull out the pressure regulator.
Torque: 2.0 N.m (20 kgf.cm, 17 in.lbf)
- Remove the O-ring from the pressure regulator.
HINT:
At the time of installation, please refer to the following items. Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.
- Remove the screw, and pull out the pressure regulator.
