A/F Sensor Heater Relay: Inspection
- REMOVE RELAY BOX COVER

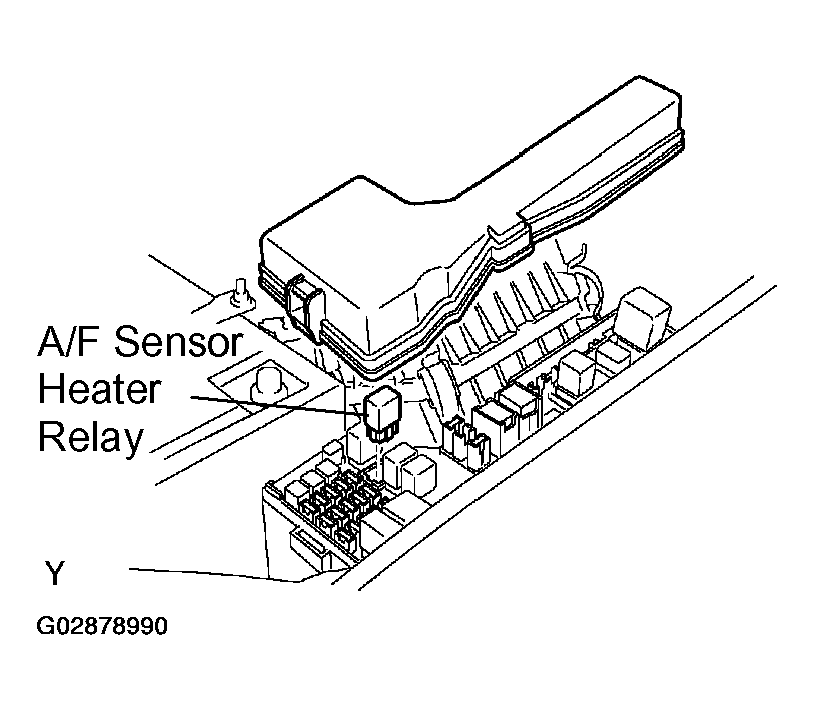

- REMOVE A/F SENSOR HEATER RELAY (Marking: A/F HTR)

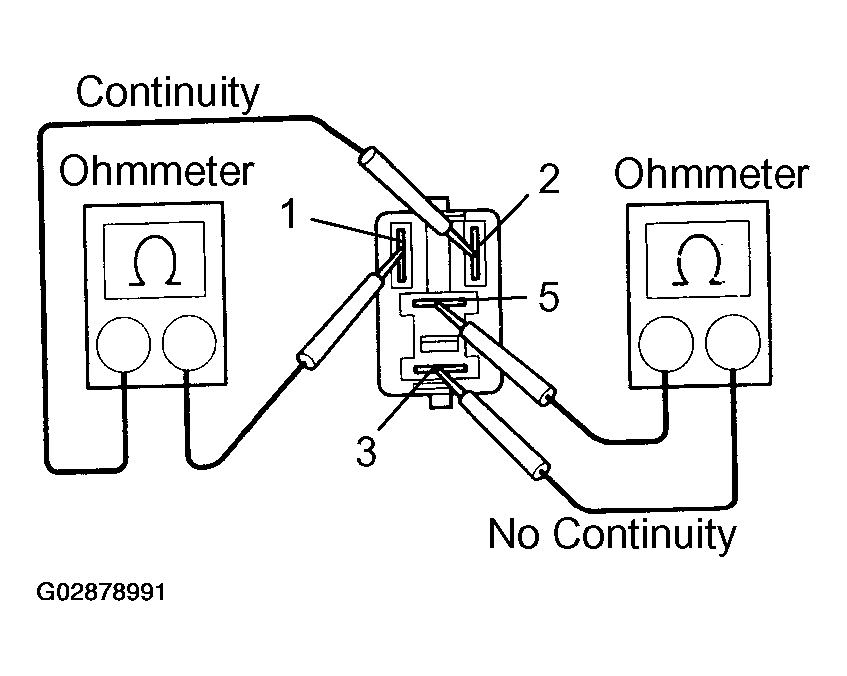

- INSPECT A/F SENSOR HEATER RELAY CONTINUITY
- Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
- Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.
- Using an ohmmeter, check that there is continuity between terminals 1 and 2.

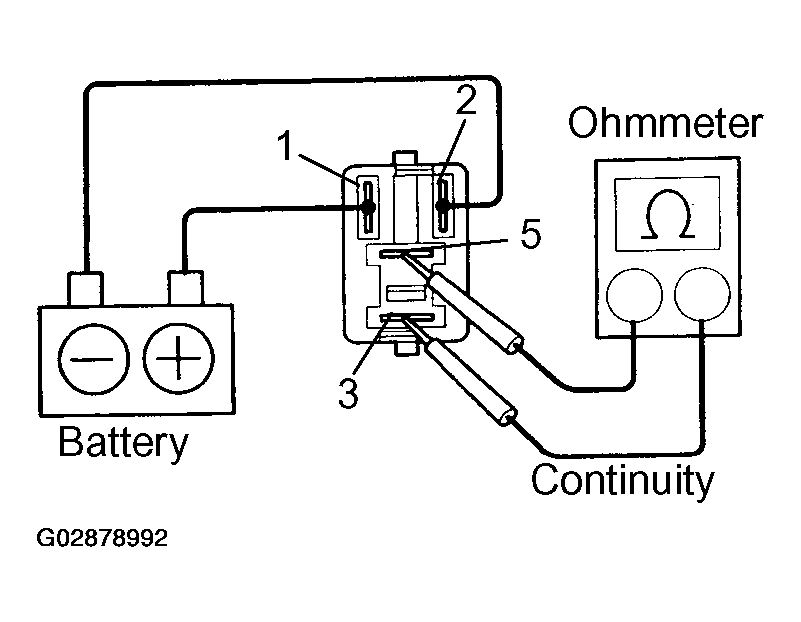

- INSPECT A/F SENSOR HEATER RELAY OPERATION
- Apply battery voltage across terminals 1 and 2.
- Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
- REINSTALL A/F SENSOR HEATER RELAY
- REINSTALL RELAY BOX COVER
