Power Window Control System: Inspection

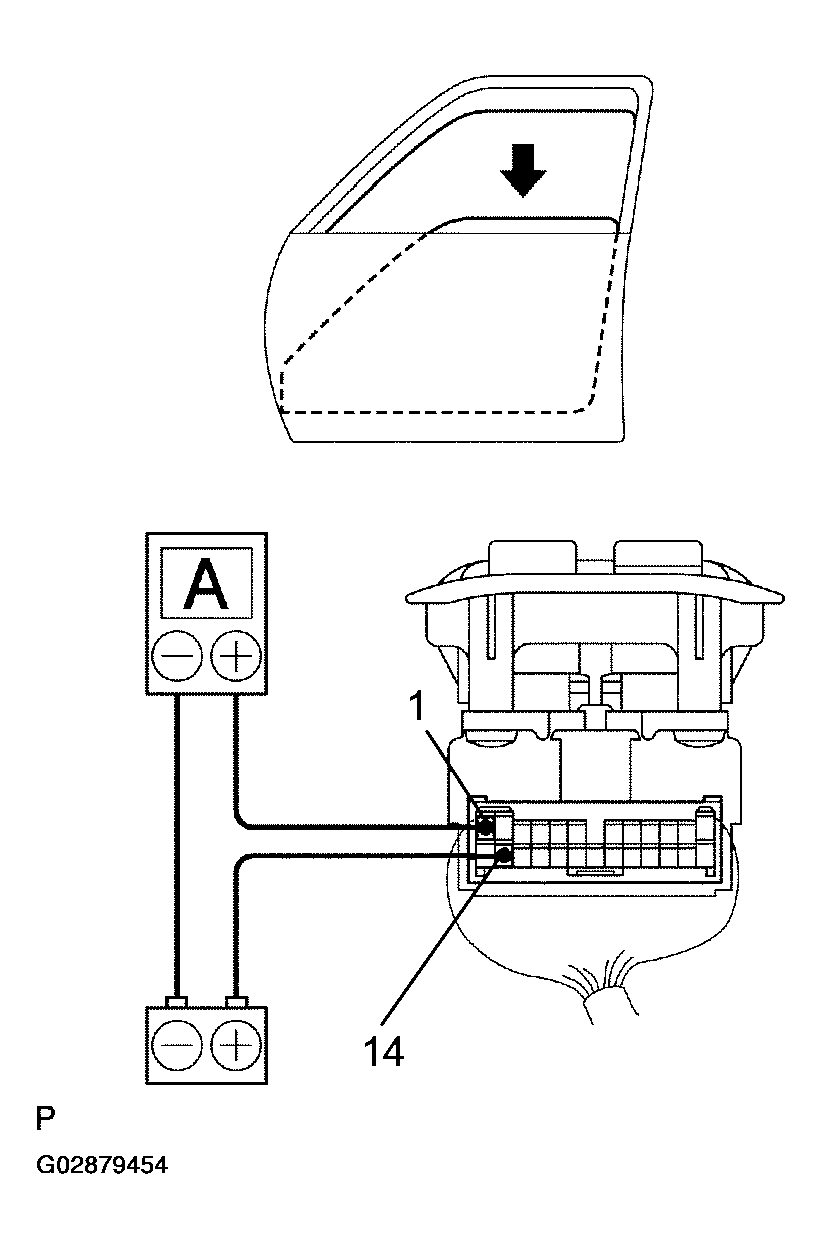

- Using an ammeter:
INSPECT ONE TOUCH POWER WINDOW SYSTEM/ CURRENT OF CIRCUIT
- Disconnect the connector from the master switch.
- Connect the positive (+) lead from the ammeter to terminal 1 on the wire harness side connector and the negative (-) lead to negative (-) terminal of the battery.
- Connect the positive (+) lead from the battery to terminal 14 on the wire harness side connector.
- As the window goes down, check that the current flow is approximately 7 A.
- Check that the current increases up to approximately 14.5 A or more when the window stops going down.
HINT:
The PTC opens some 4 - 90 seconds after the window stops going down, so that check must be made before the PTC operates.
If the operation is as specified, replace the driver door ECU.

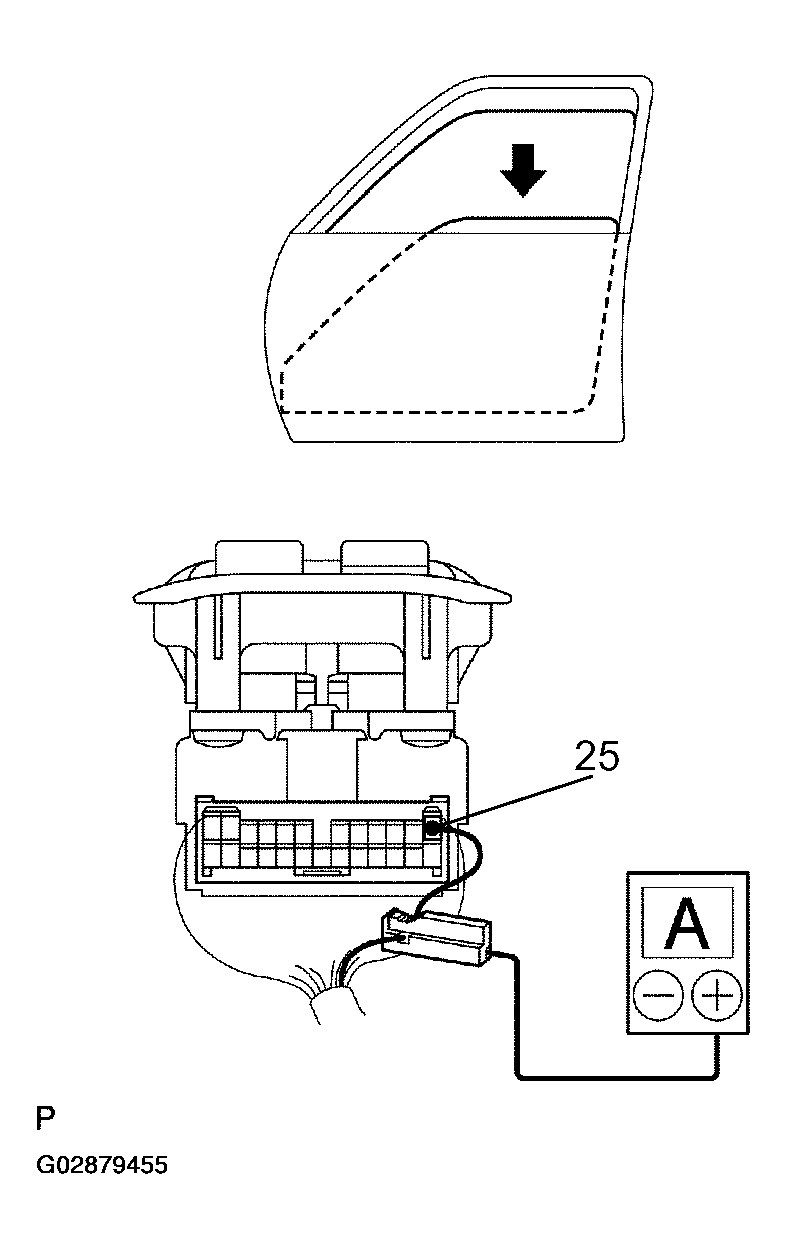

- Using an ammeter with a current-measuring probe:
INSPECT ONE TOUCH POWER WINDOW SYSTEM/ CURRENT OF CIRCUIT
- Remove the driver door ECU with connectors connected.
- Attach a current-measuring probe to terminal 25 of the wire harness.
- Turn the ignition switch ON and set the power window switch in the down position.
- As the window goes down, check that the current flow is approximately 7 A.
- Check that the current increases up to approximately 14.5 A or more when the window stops going down.
HINT:
The PTC opens some 4 - 90 seconds after the window stops going down, so that check must be made before the PTC operates.
If operation is as specified, replace the driver door ECU.

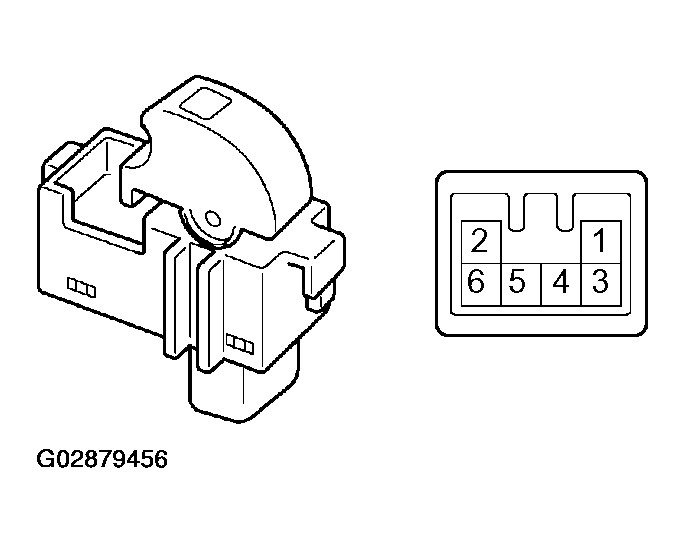

- INSPECT REAR POWER WINDOW SWITCH CONTINUITY CONTINUITY CONDITION
Switch position Tester connection Specified condition UP 5 - 4, 2 - 6 Continuity OFF 4 - 6, 2 - 6 No continuity DOWN 2 -5, 4 - 6 Continuity If continuity is not as specified, replace the switch.

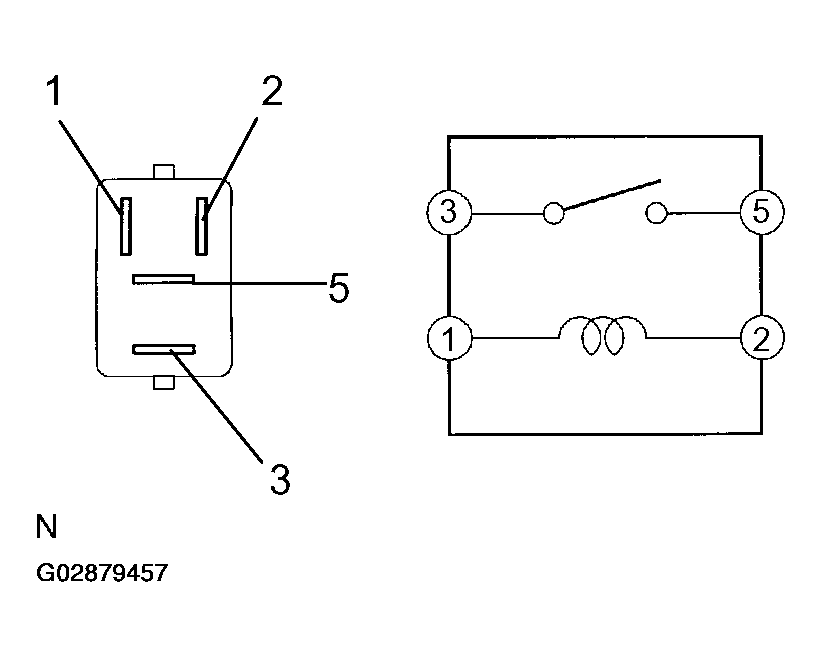

- INSPECT POWER MAIN RELAY CONTINUITY CONTINUITY CONDITION
Condition Tester connection Specified condition Constant 1 - 2 Continuity Apply B+ between terminals 1 and 2 3-5 Continuity If continuity is not as specified, replace the relay.
- Driver's Door:

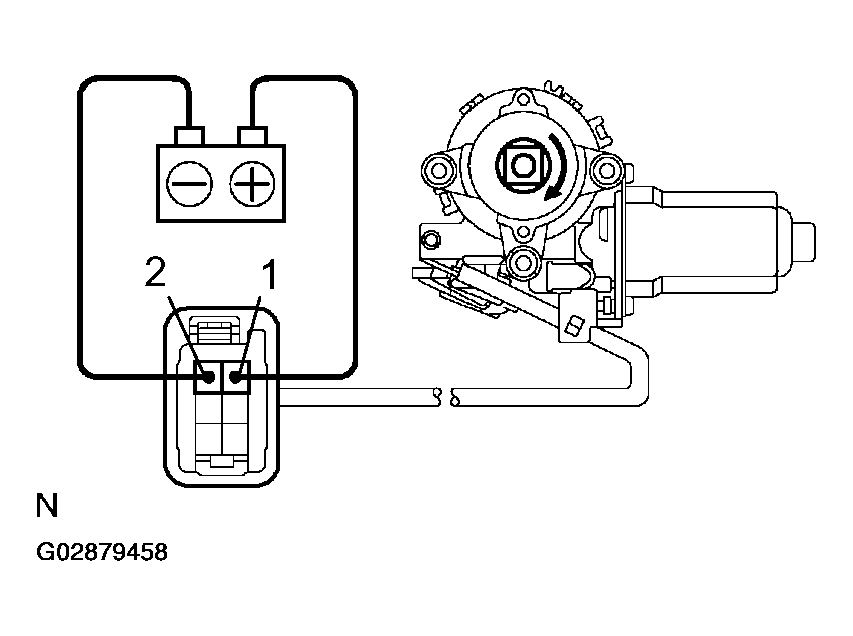

INSPECT POWER WINDOW MOTOR OPERATION
- Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.
- Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.
NOTE: Since the jam protection may not work properly be sure to conduct procedures described in "HOW TO RESET POWER MOTOR (RESET AND PULSE SWITCH)" after this inspection.
