2004 Toyota Avalon XLFACTORY OEM SERVICE PROCEDURE

SFI System: Injector: Removal

  1. REMOVE V-BANK COVER
    1. Using a 5 mm hexagon wrench, remove the 3 cap nuts.
    2. Loosen the V-bank cover fastener counterclockwise.
    3. Remove the V-bank cover.
  2. REMOVE AIR CLEANER HOSE WITH RESONATOR
  3. REMOVE AIR INTAKE CHAMBER ASSEMBLY (See  REMOVAL  )

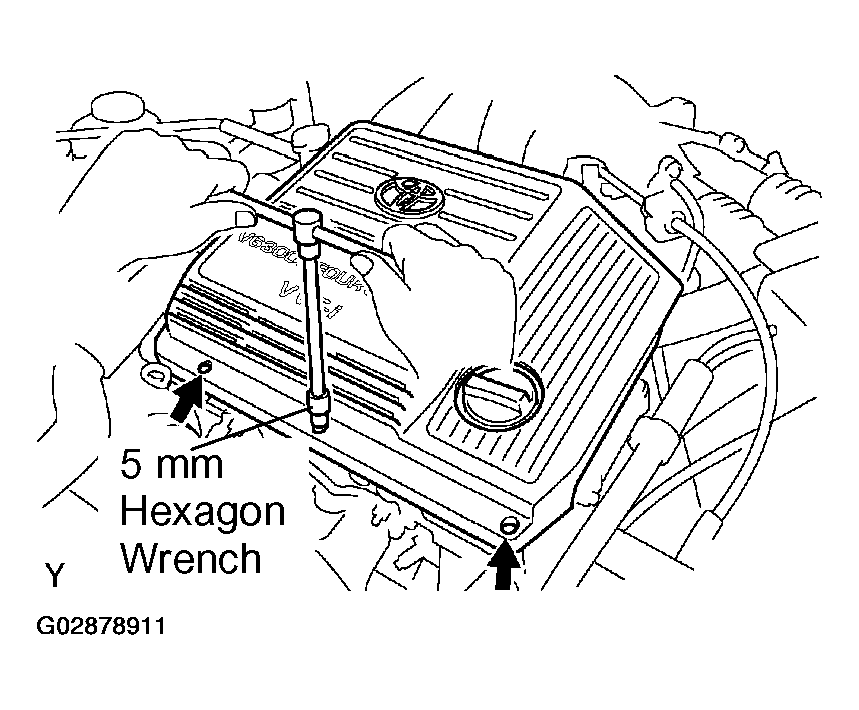

    Fig 1: Removing V-Bank Cover
    G02878911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DISCONNECT INJECTOR CONNECTORS

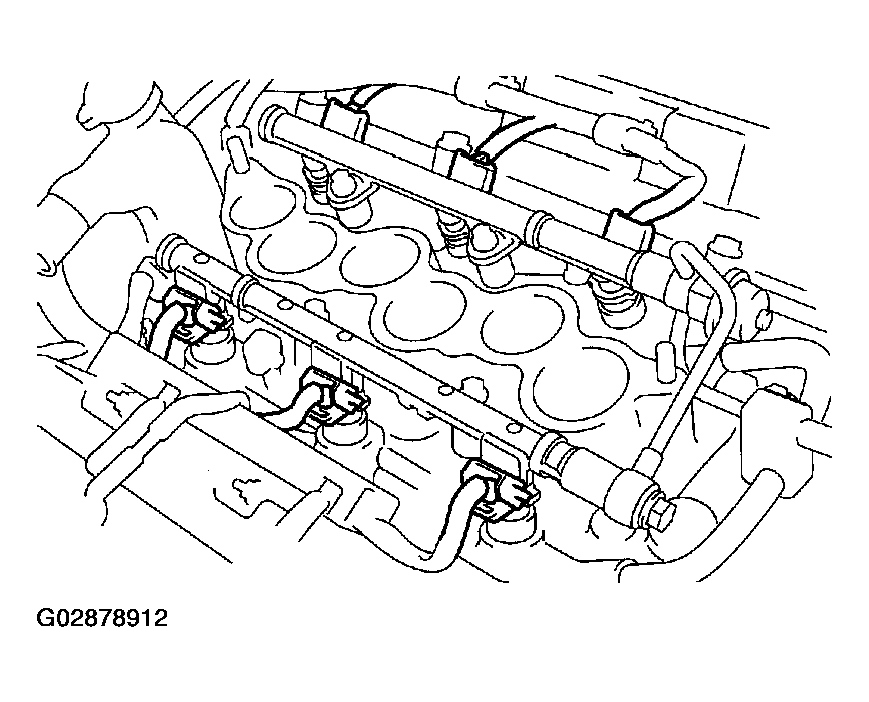

    Fig 2: Disconnecting Injector Connectors
    G02878912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE AIR ASSIST HOSES AND PIPE

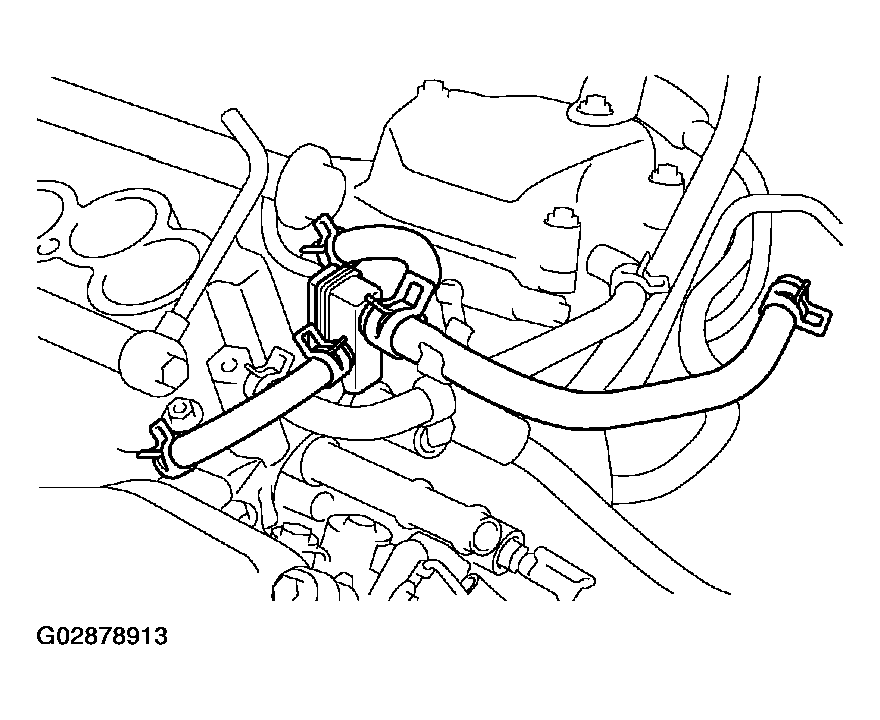

    Fig 3: Removing Air Assist Hoses And Pipe
    G02878913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT NO.1 FUEL PIPE
    1. Remove the fuel hose clamp.

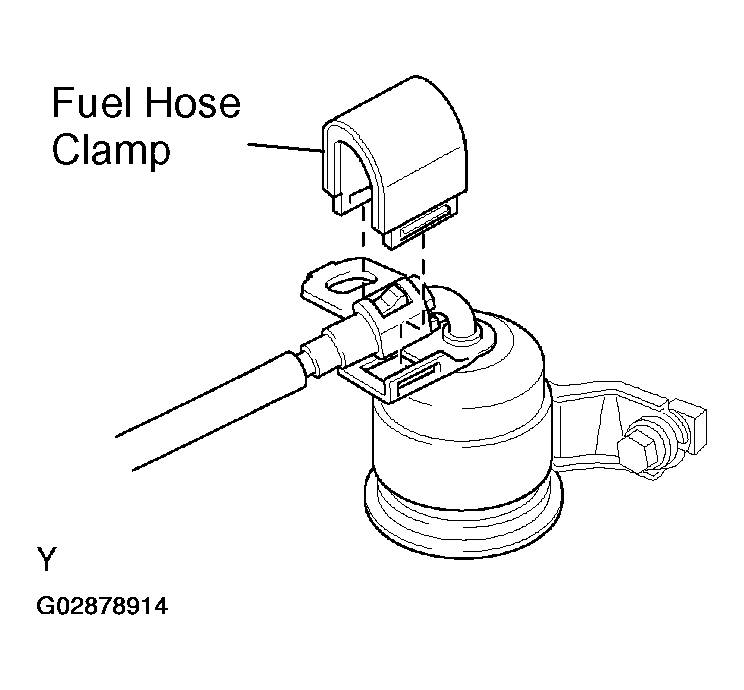

      Fig 4: Removing Fuel Hose Clamp
      G02878914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No.1 fuel pipe (fuel tube connector) from the fuel filter outlet.
    CAUTION:
    • Perform disconnecting operations of the fuel tube connector (quick type) after observing the precautions (See PRECAUTION  ).
    • As there is retained pressure in the fuel pipe line, prevent it from splashing inside the engine compartment.
