Engine Coolant Temperature (ECT) Sensor: Inspection
- DRAIN ENGINE COOLANT
- REMOVE ECT SENSOR
- Disconnect the ECT sensor connector.

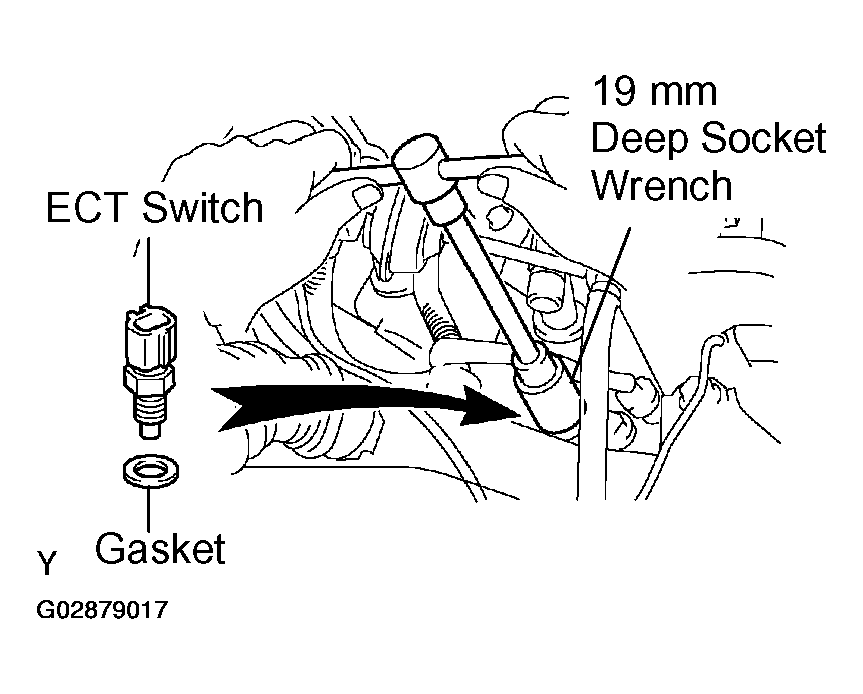

- Using a 19 mm deep socket wrench, remove the ECT sensor and gasket.
- INSPECT ECT SENSOR

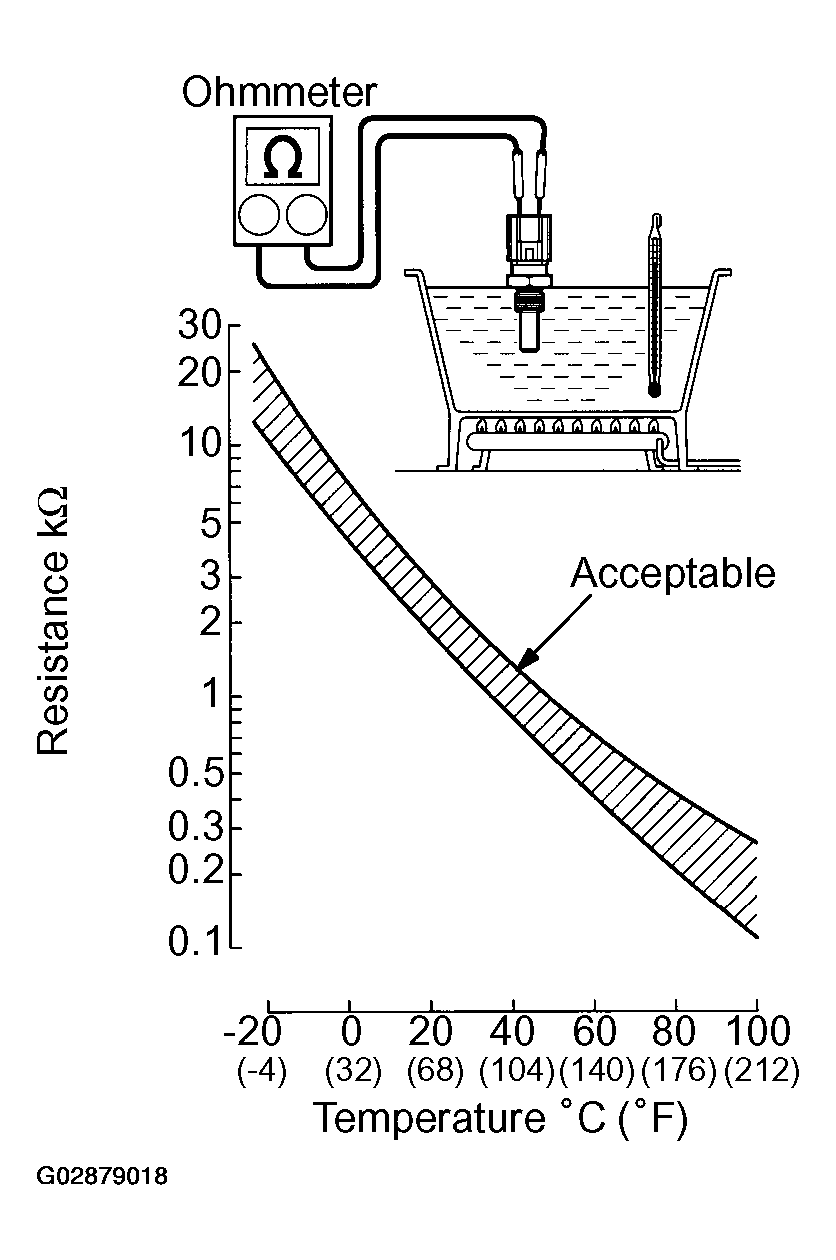

Using an ohmmeter, measure the resistance between the terminals.
Resistance: Refer to Fig 2
If the resistance is not as specified, replace the ECT sensor.
- REINSTALL ECT SENSOR
- Install a new gasket to the ECT sensor.
- Using a 19 mm deep socket, install the ECT sensor.
Torque: 20 N.m (200 kgf.cm, 14 ft.lbf)
- Connect the ECT sensor connector.
- REFILL WITH ENGINE COOLANT
