Acoustic Control Induction System (ACIS): Installation
- INSTALL NO.1 INTAKE AIR CONTROL VALVE (see REPLACEMENT and INSTALLATION )
- INSTALL NO.2 INTAKE AIR CONTROL VALVE
- Install the No.2 intake air control valve.

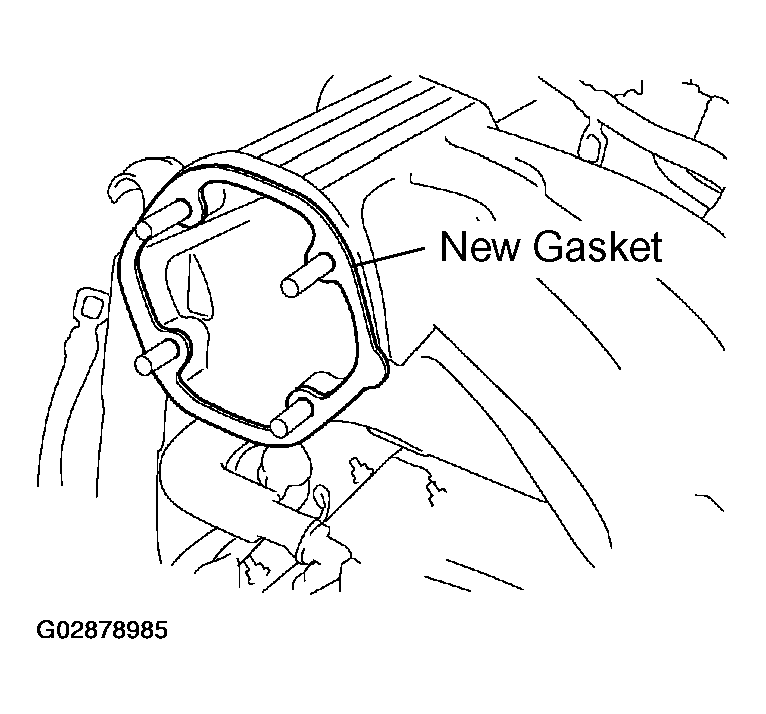

- Install a new gasket to the air intake chamber.
- Apply a light coat of engine oil to the rubber portions.

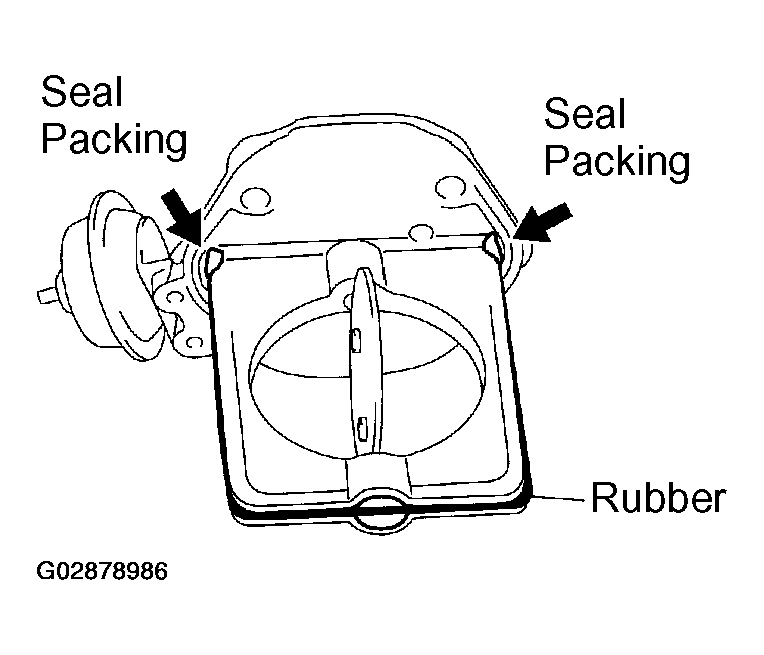

- Apply seal packing to the positions of the intake air control valve shown in Fig 2
.
Seal packing: Part No. 08826-00080 or equivalent
- Install the intake air control valve, ground strap and cable with the 4 nuts.
Torque: 14.5 N.m (145 kgf.cm, 10 ft.lbf)
- Connect the actuator vacuum hose.
- Install the No.2 intake air control valve.
