2003 Toyota Sienna LEFACTORY OEM SERVICE PROCEDURE
Front Wheel Alignment: Inspection
- Measure Vehicle Height VEHICLE HEIGHT SPECIFICATIONS

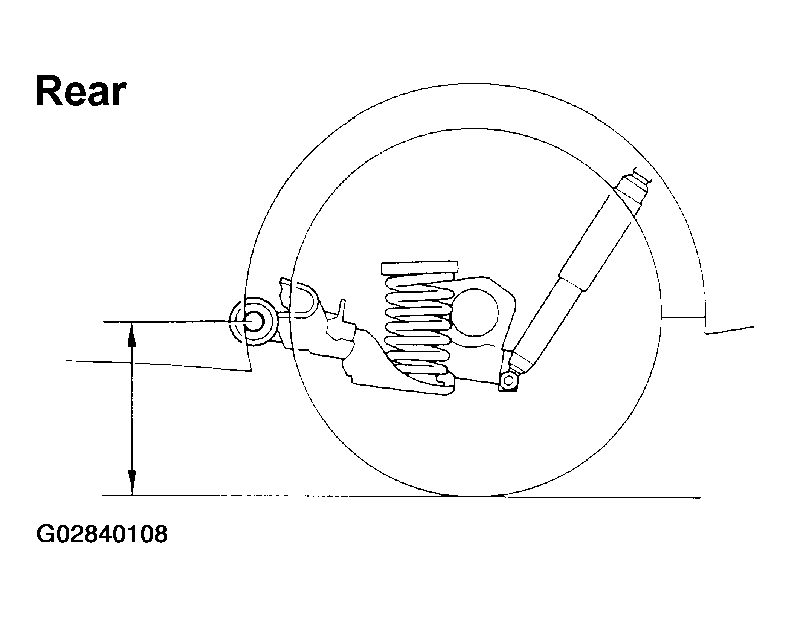

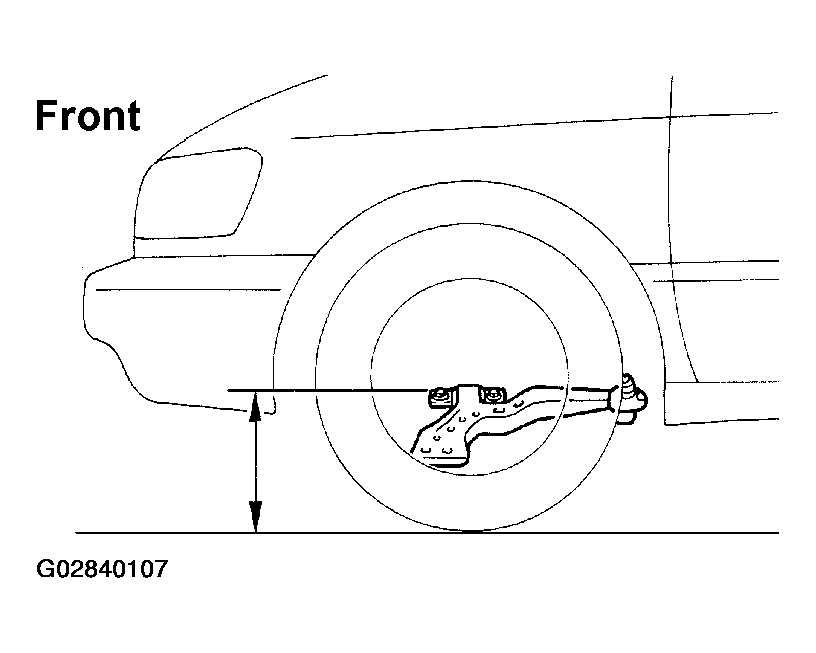

Tire size Front(1) mm (in.) Rear(2) mm (in.) 205/70R15 230 (9.06) 324 (12.76) 215/65R15 226 (8.90) 320 (12.60) (1) Measure from ground to center of front side lower suspension arm mounting bolt. (2) Measure from ground to center of axle beam bushing.
