How To Proceed With Troubleshooting

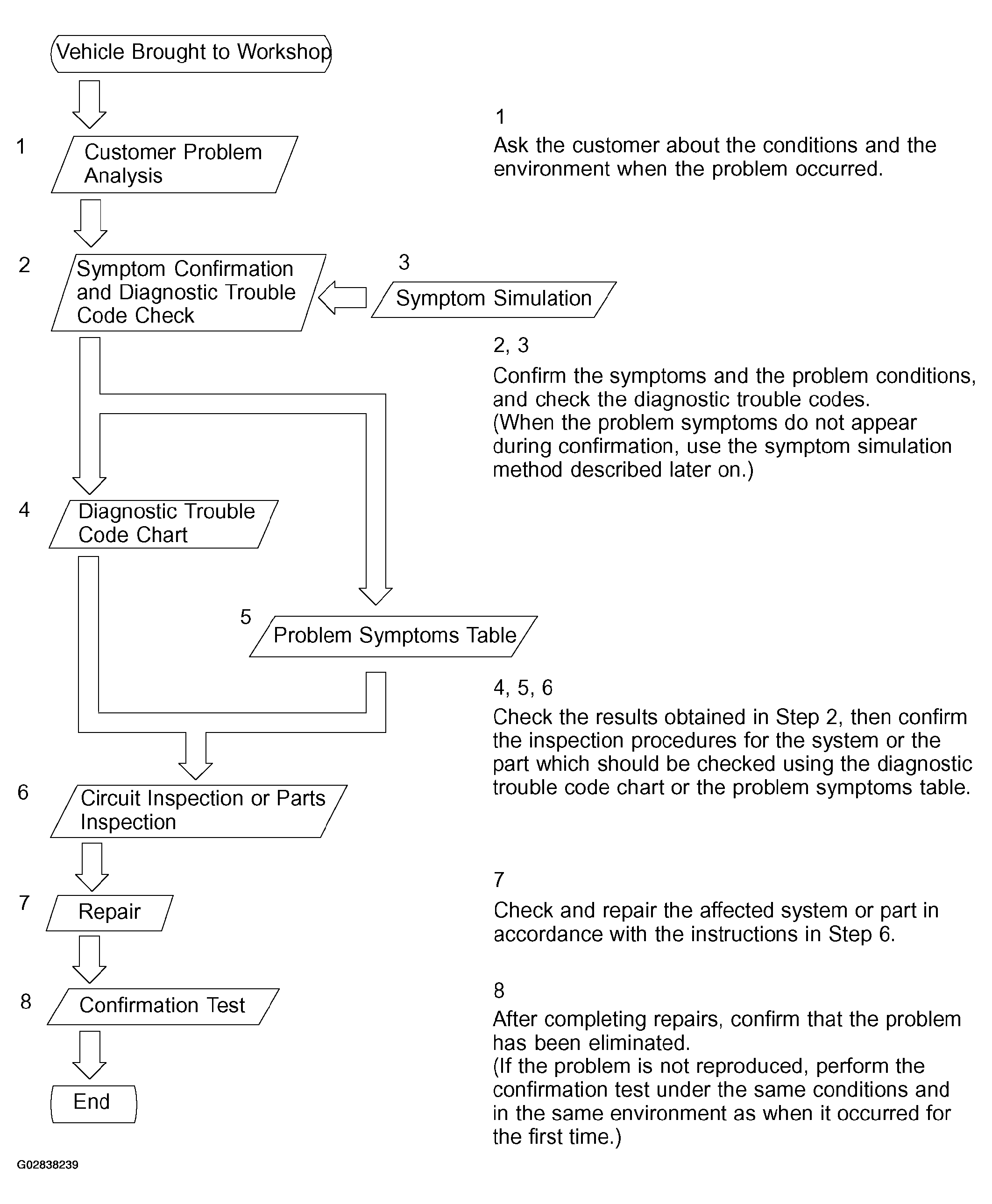

Carry out troubleshooting in accordance with the procedures on the following page. Here, only the basic procedures are shown. Details are provided in Diagnostics section, showing the most effective methods for each circuit. Confirm the troubleshooting procedures first for the relevant circuit before beginning troubleshooting of that circuit.

1. CUSTOMER PROBLEM ANALYSIS

   In troubleshooting, the problem symptoms must be confirmed accurately and all preconceptions must be cleared away in order to give an accurate judgment. To ascertain just what the problem symptoms are, it is extremely important to ask the customer about the problem and conditions at the time it occurred. Important Point in the Problem Analysis:

   The following 5 items are important points in the problem analysis. Past problems which are thought to be unrelated and the repair history, etc. may also help in some cases. So as much information as possible should be gathered and its relationship with the problem symptoms should be correctly ascertained for reference in troubleshooting. A customer problem analysis table is provided in the diagnostics section for each system for your use.

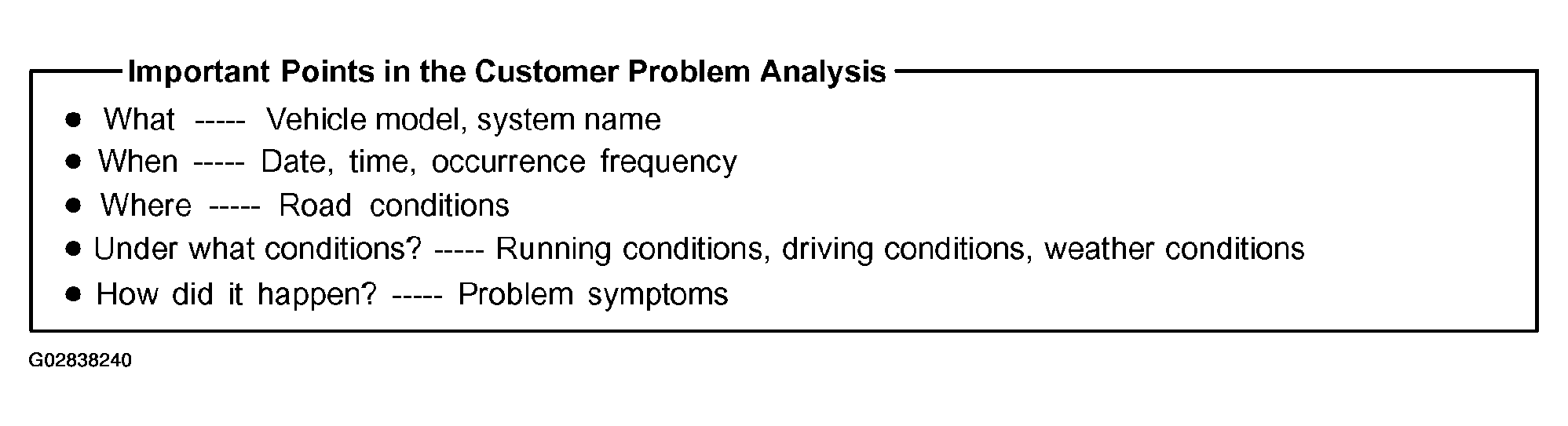

   Fig 2: Problem Analysis Trouble Points

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

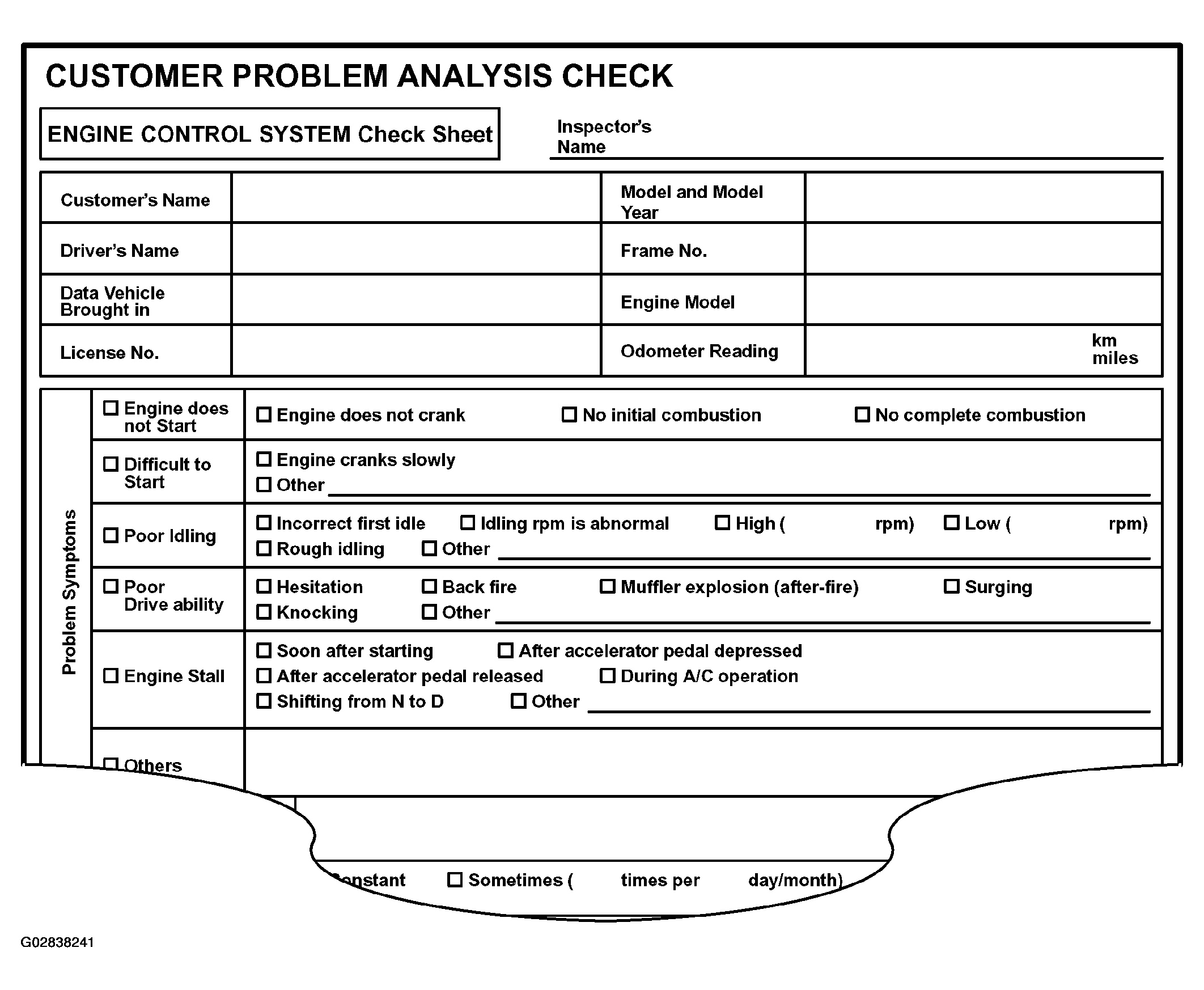

   (Sample) Engine Control System Check Sheet.

   Fig 3: Engine Control System Inspection Check Sheet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. SYMPTOM CONFIRMATION AND DIAGNOSTIC TROUBLE CODE CHECK

   The diagnostic system in the RAV4 fulfills various functions. The first function is the Diagnostic Trouble Code Check in which a malfunction in the signal circuits to the ECU is stored in code in the ECU memory at the time of occurrence, to be output by the technician during troubleshooting. Another function is the Input Signal Check which checks if the signals from various switches are sent to the ECU correctly.

   By using these check functions, the problem areas can be narrowed down quickly and troubleshooting can be performed effectively. The diagnostic functions are incorporated in the following systems in the RAV4.

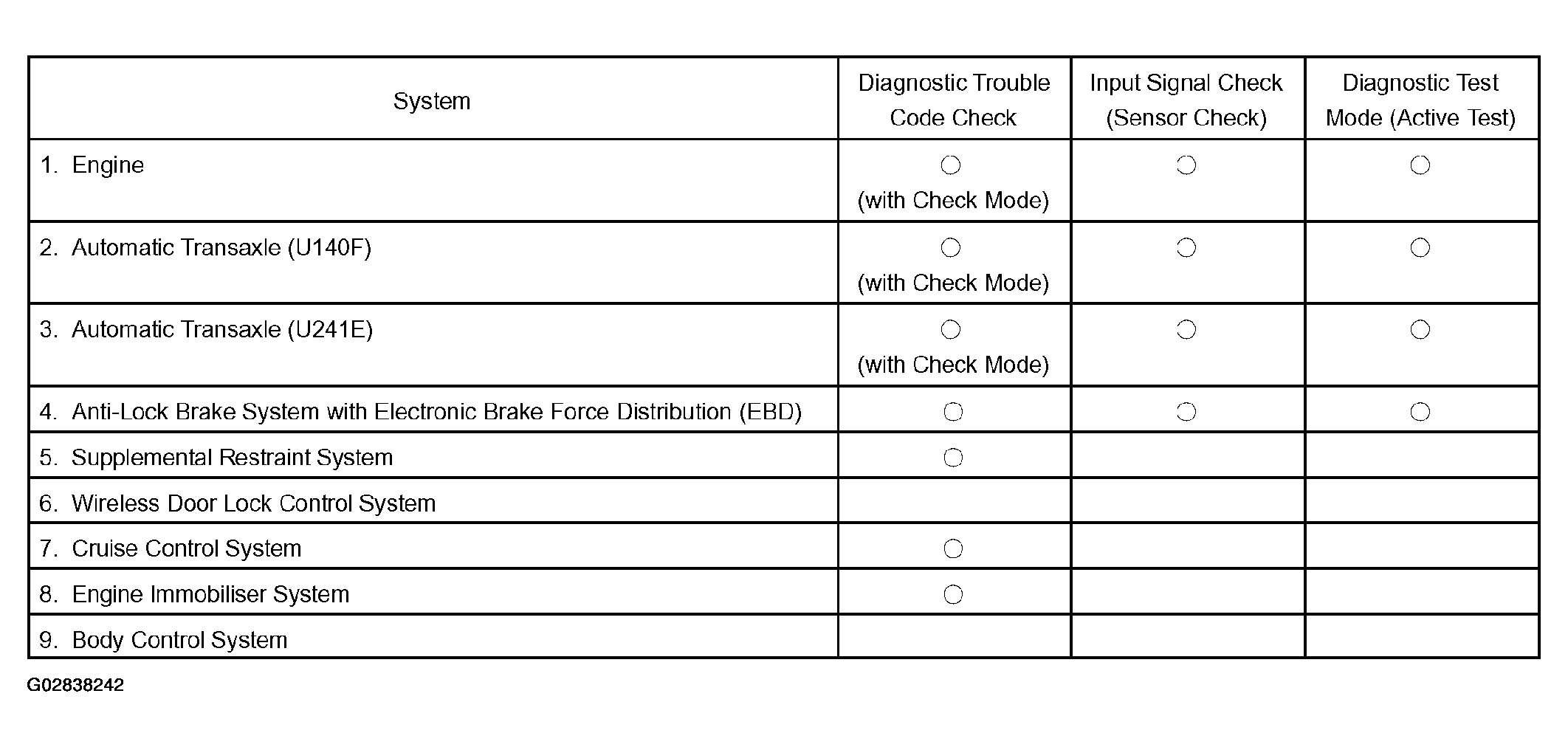

   Fig 4: Diagnostic Trouble Code Checking Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   In diagnostic trouble code check, it is very important to determine whether the problem indicated by the diagnostic trouble code is still occurring or occurred in the past but returned to normal at present. In addition, it must be checked in the problem symptom check whether the malfunction indicated by the diagnostic trouble code is directly related to the problem symptom or not. For this reason, the diagnostic trouble codes should be checked before and after the symptom confirmation to determine the current conditions, as shown in the table below. If this is not done, it may, depending on the case, result in unnecessary troubleshooting for normally operating systems, thus making it more difficult to locate the problem, or in repairs not pertinent to the problem. Therefore, always follow the procedure in correct order and perform the diagnostic trouble code check.

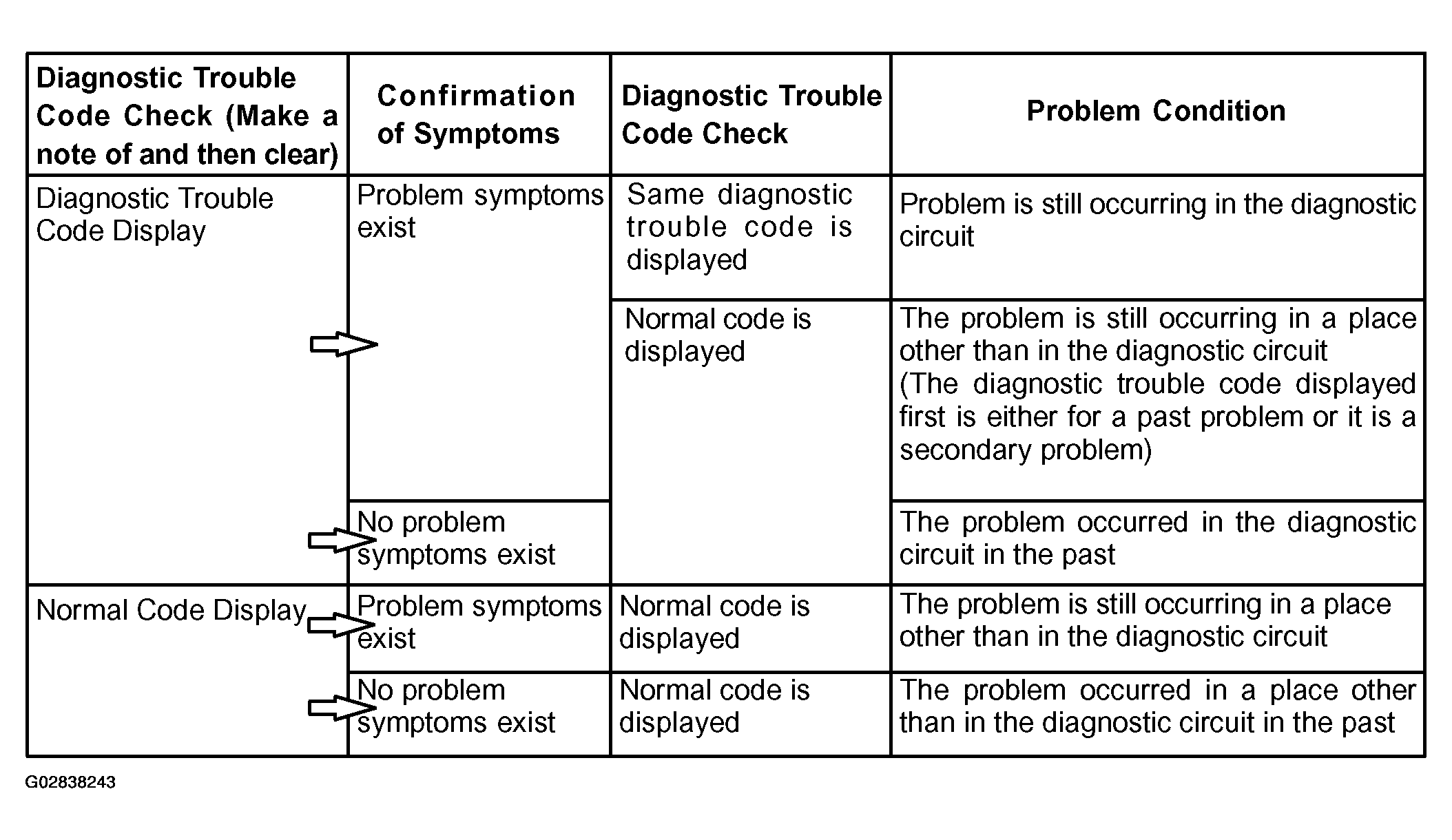

   Fig 5: Diagnostic Trouble Code Check Procedure

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Taking into account the points on the previous page, a flow chart showing how to proceed with troubleshooting using the diagnostic trouble code check is shown in the next page. This flow chart shows how to utilize the diagnostic trouble code check effectively, then by carefully checking the results, this chart indicates how to proceed either to diagnostic trouble code troubleshooting or to troubleshooting of the problem symptoms table.

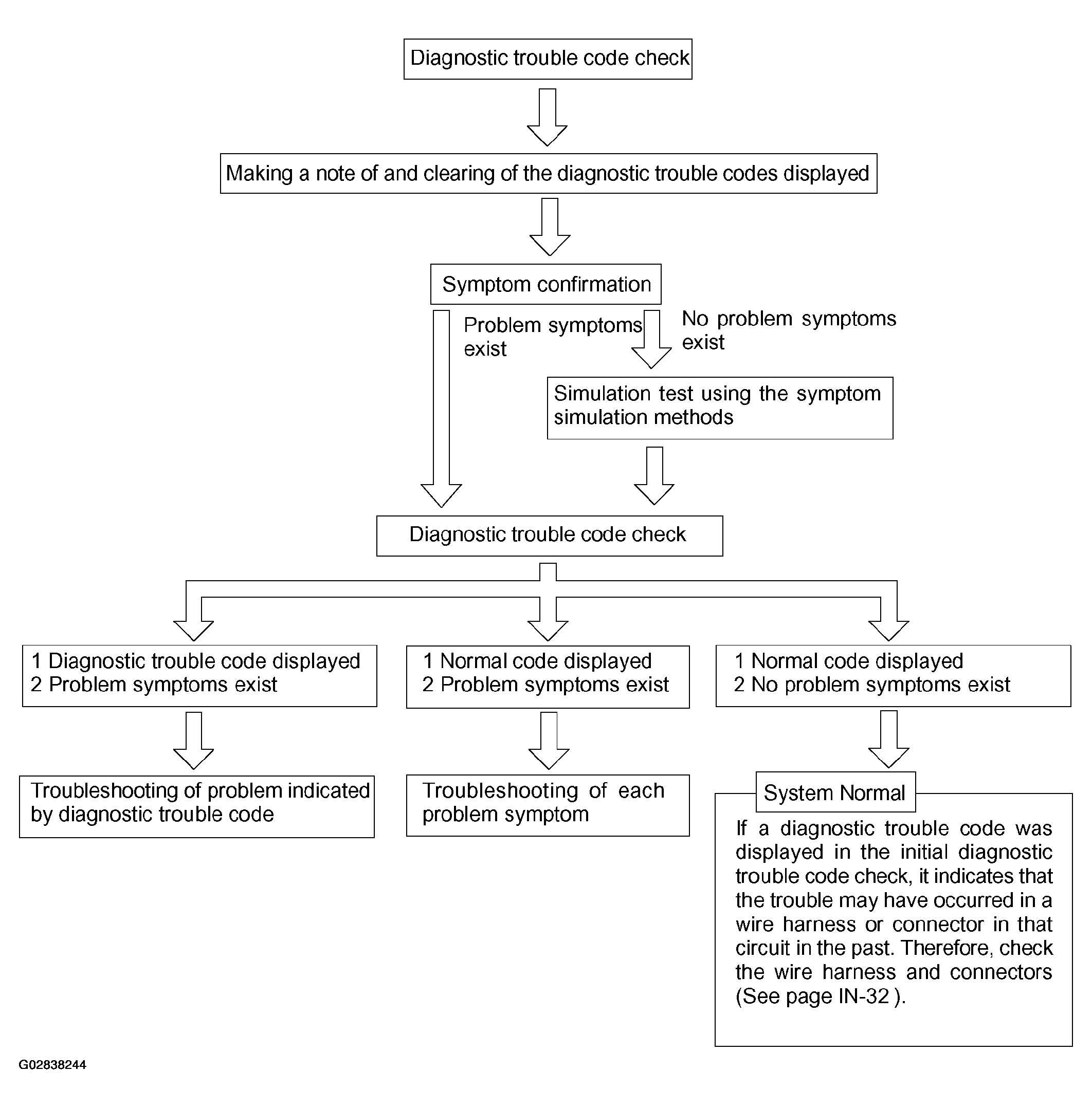

   Fig 6: Diagnostic Trouble Code Checking Flow Procedure

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. SYMPTOM SIMULATION

   The most difficult case in troubleshooting is that there are no problem symptoms occurring. In such cases, a thorough customer problem analysis must be carried out. Then simulate the same or similar conditions and environment in which the problem occurred in the customer's vehicle. No matter how much experience a technician has, or how skilled he may be, if he proceeds to troubleshoot without confirming the problem symptoms he will tend to overlook something important in the repair operation and make a wrong guess somewhere, which will only lead to a standstill. For example, for a problem which only occurs when the engine is cold, or for a problem which occurs due to vibration caused by the road during driving, etc., the problem can never be determined so long as the symptoms are confirmed with the engine hot condition or the vehicle at a standstill. Since vibration, heat or water penetration (moisture) is a likely cause for problem which is difficult to reproduce, the symptom simulation tests introduced here are effective measures in that the external causes are applied to the vehicle in a stopped condition. Important Points in the Symptom Simulation Test.

   In the symptom simulation test, the problem symptoms should, of course, be confirmed, but the problem area or parts must also be found out. To do this, narrow down the possible problem circuits according to the symptoms before starting this test and connect a tester beforehand. After that, carry out the symptom simulation test, judging whether the circuit being tested is defective or normal and also confirming the problem symptoms at the same time. Refer to the problem symptoms table for each system to narrow down the possible causes of the symptom.

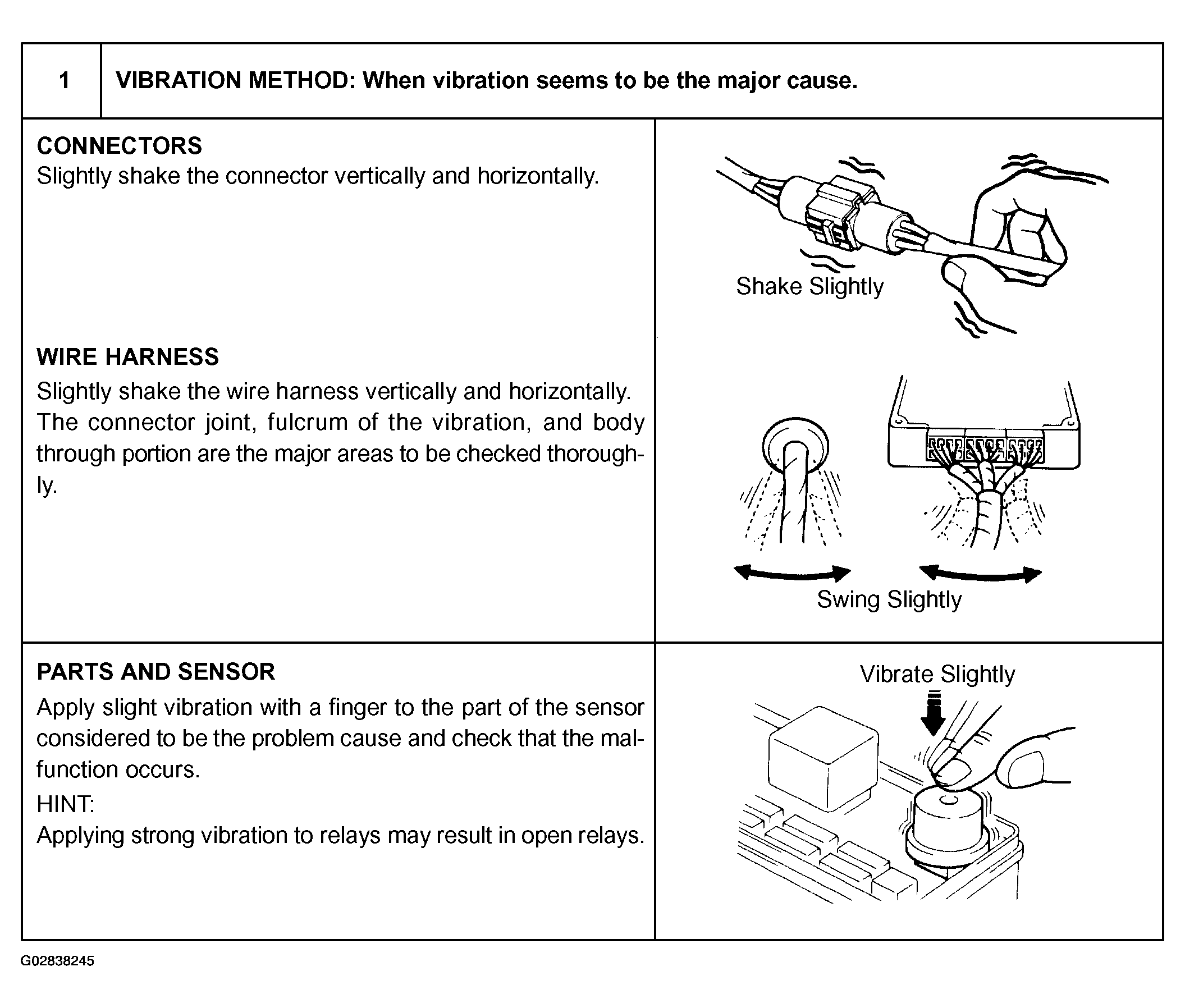

   Fig 7: Identifying Vibration Method

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
