2003 Toyota RAV4 Base, FWD, AutomaticFACTORY OEM SERVICE PROCEDURE
Magnetic Switch Test

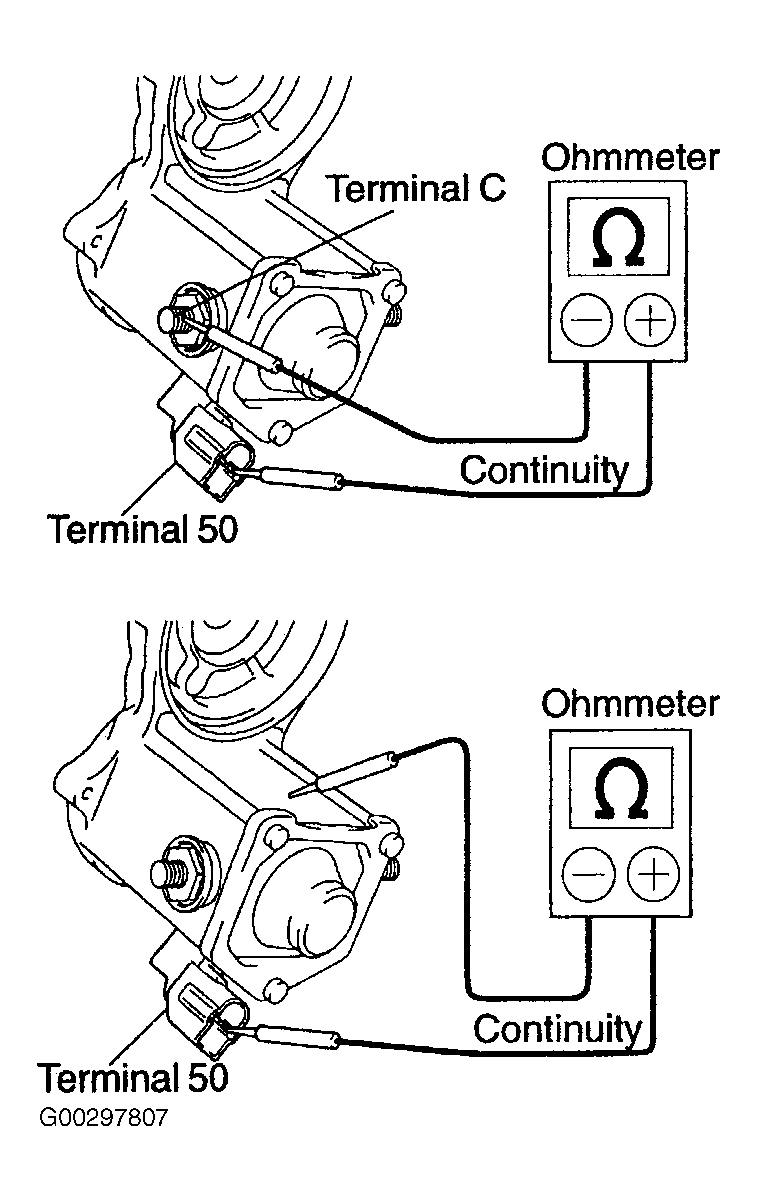

- Using an ohmmeter, check that there is continuity between terminals 50 and "C". See Fig 1. If there is no continuity, replace the repair service starter kit.
- Using an ohmmeter, check. that there is continuity between terminal 50 and the switch body. See Fig 1. If there is no continuity; replace the repair service starter kit.
