On-Vehicle Repair
- REMOVE ENGINE UNDER COVER LH
- REMOVE OIL PUMP

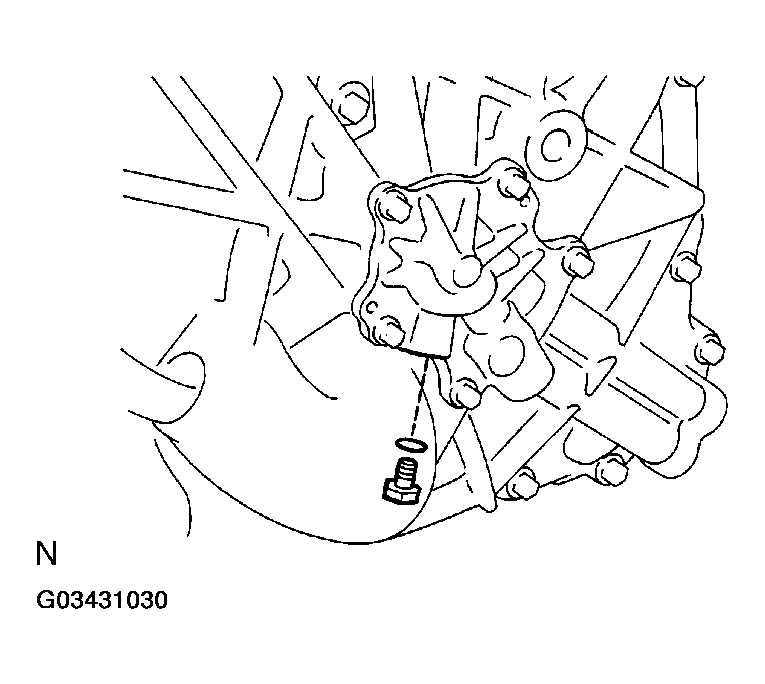

- Remove the plug.
- Remove the O-ring from the plug.

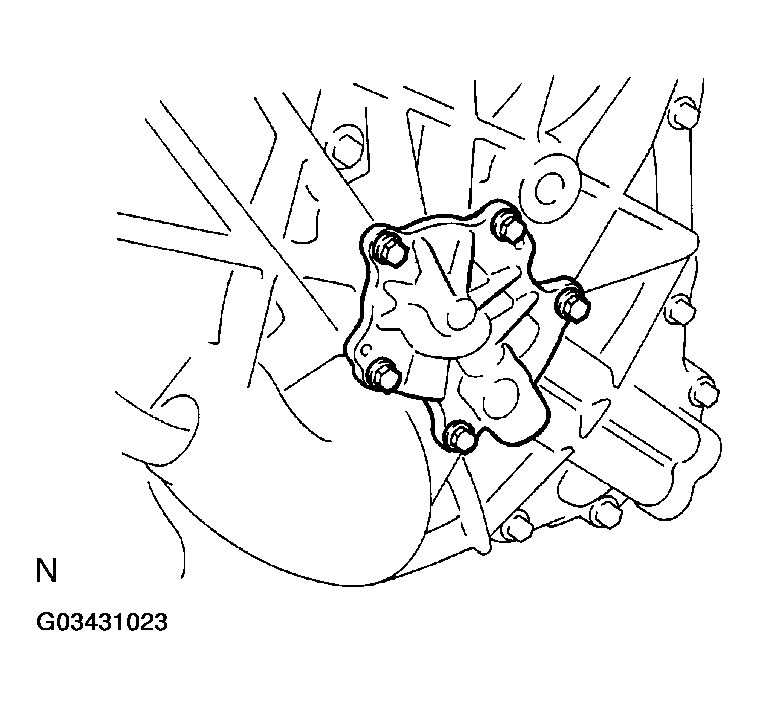

- Remove the 5 bolts and oil pump cover.

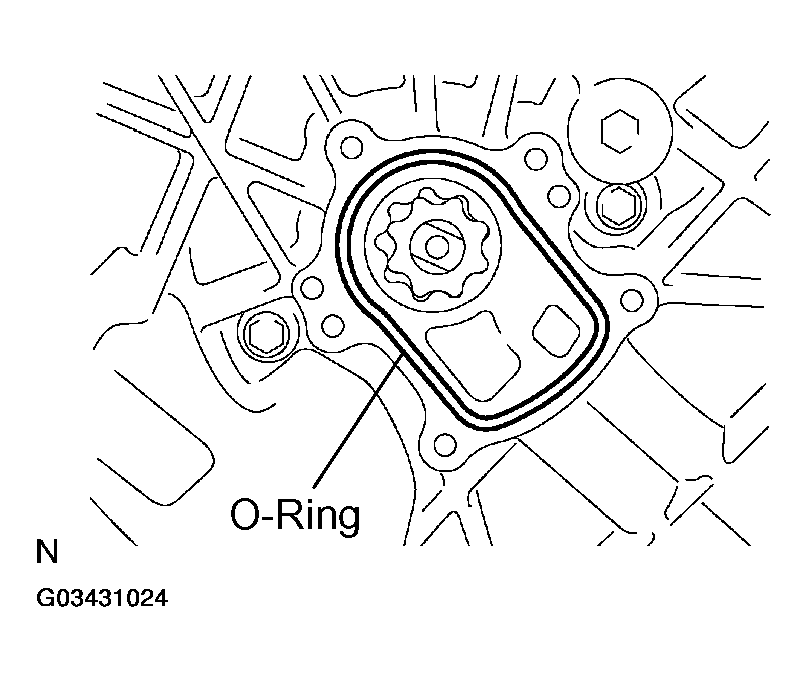

- Remove the O-ring.

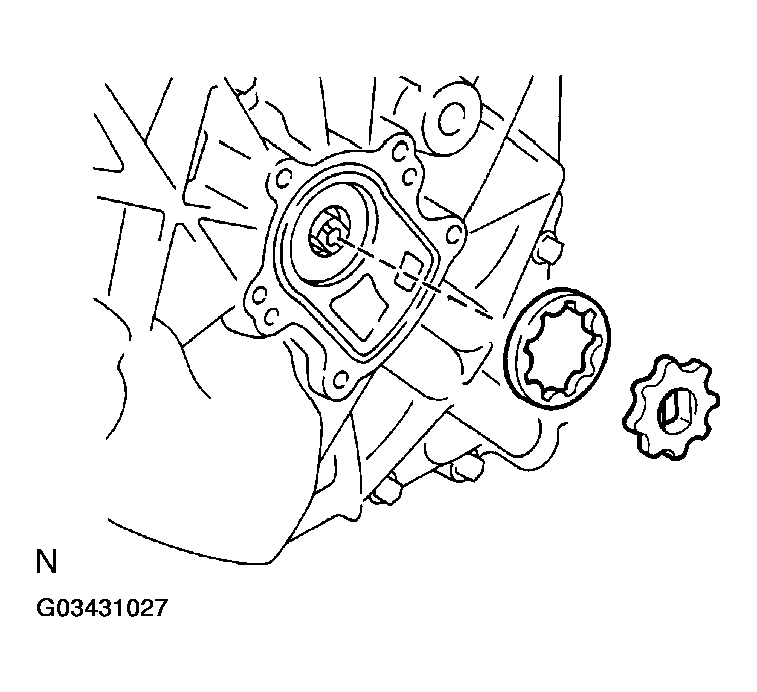

- Remove the oil pump driven rotor and drive rotor.

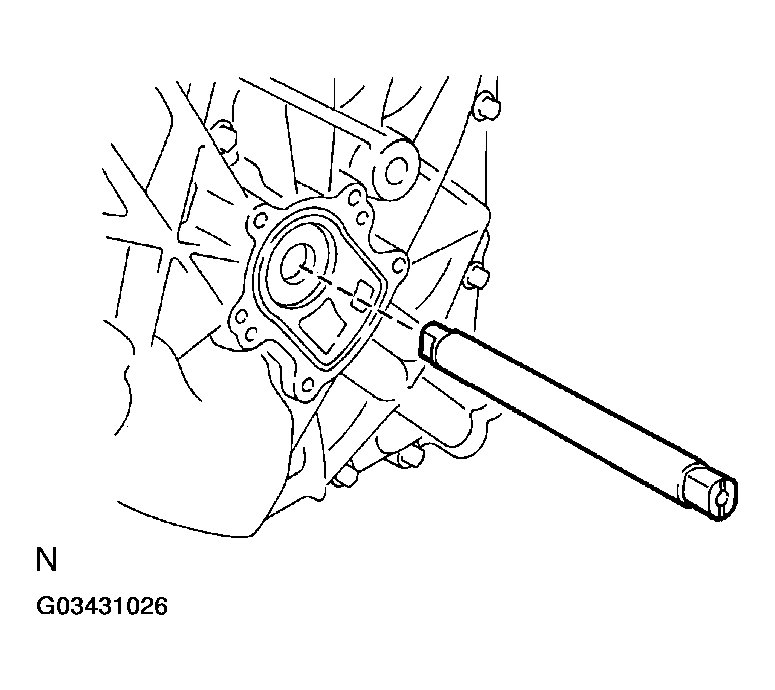

- Remove the oil pump drive shaft.
- INSTALL OIL PUMP
- Apply ATF to each sliding part.
- Install the oil pump drive shaft.
- Install the oil pump driven rotor and drive rotor.

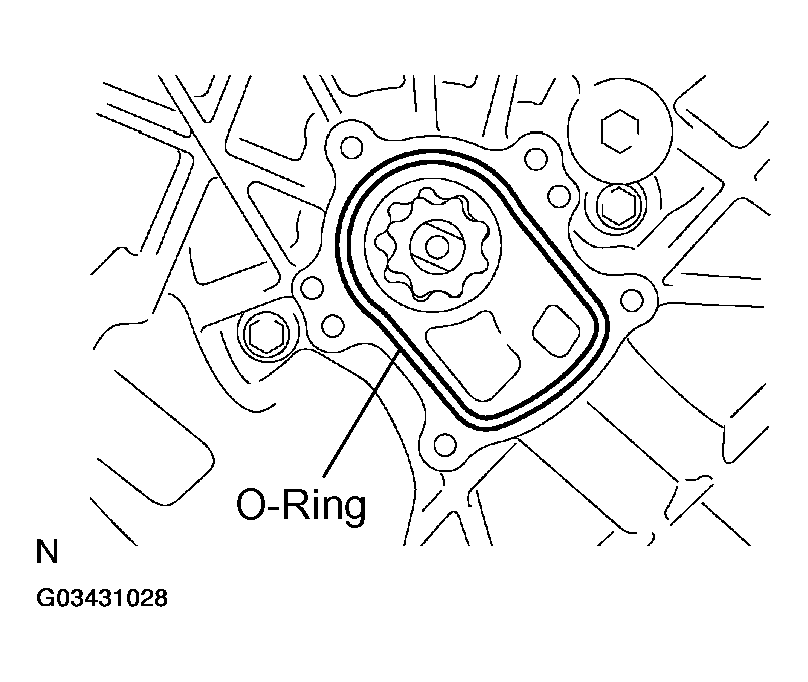

- Install a new O-ring.
- Apply liquid sealer to 2 or 3 threads of the bolt end.
Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
- Install the oil pump cover with the 5 bolts.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
- Install a new O-ring and the plug.
Torque: 7.35 N.m (75 kgf.cm, 65 in.lbf)
- INSTALL ENGINE UNDER COVER LH
