Counter Driven Gear: Reassembly

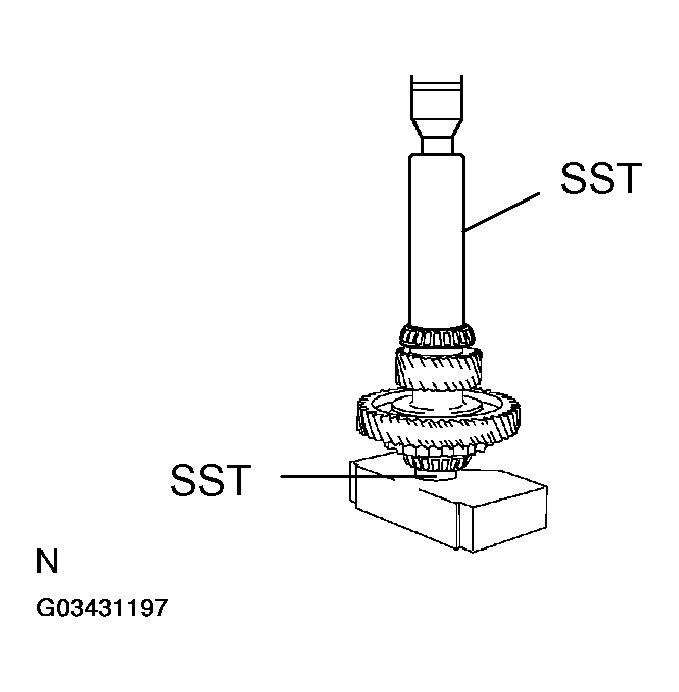

- INSTALL NEW TAPERED ROLLER BEARING (MG1 side)
Using SST and a press, press in a new tapered roller bearing.
SST 09608-06041

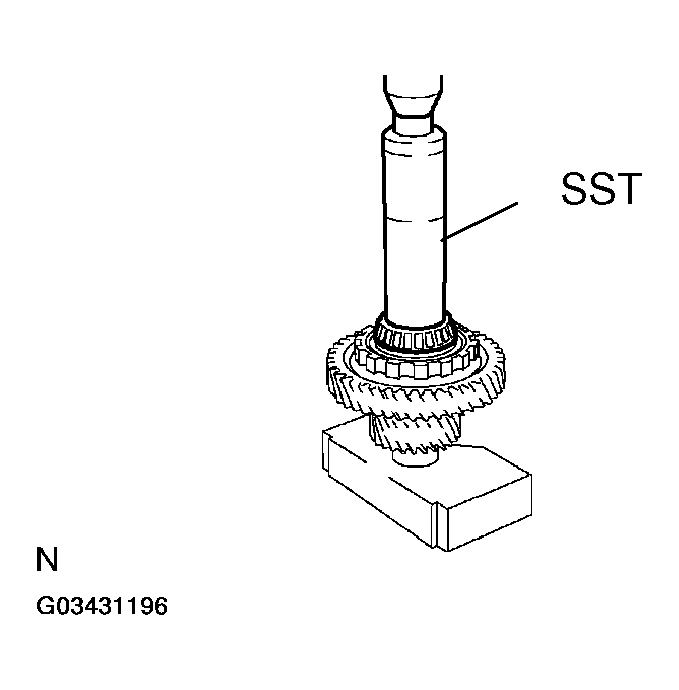

- INSTALL NEW TAPERED ROLLER BEARING (MG2 side)
Using SST and a press, press in a new tapered roller bearing.
SST 09608-06041, 09950-60010 (09951-00370)
