2003 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Column Shift Assembly: Removal

NOTE: Do not disassemble the shift lever assembly.

REMOVE STEERING WHEEL PAD (See REMOVAL )
REMOVE STEERING WHEEL (See REMOVAL )
REMOVE INSTRUMENT LOWER FINISH PANEL (See REMOVAL )
REMOVE COLUMN LOWER AND UPPER PANELS (See REMOVAL )
REMOVE COMBINATION SWITCH (See REMOVAL )
REMOVE SHIFT LEVER ASSEMBLY
1. Remove the 3 bolts.
2. Disconnect the shift lever connector.
3. Disconnect the shift lever assembly and transmission control cable (See REMOVAL ).
4. Remove the shift lever assembly.

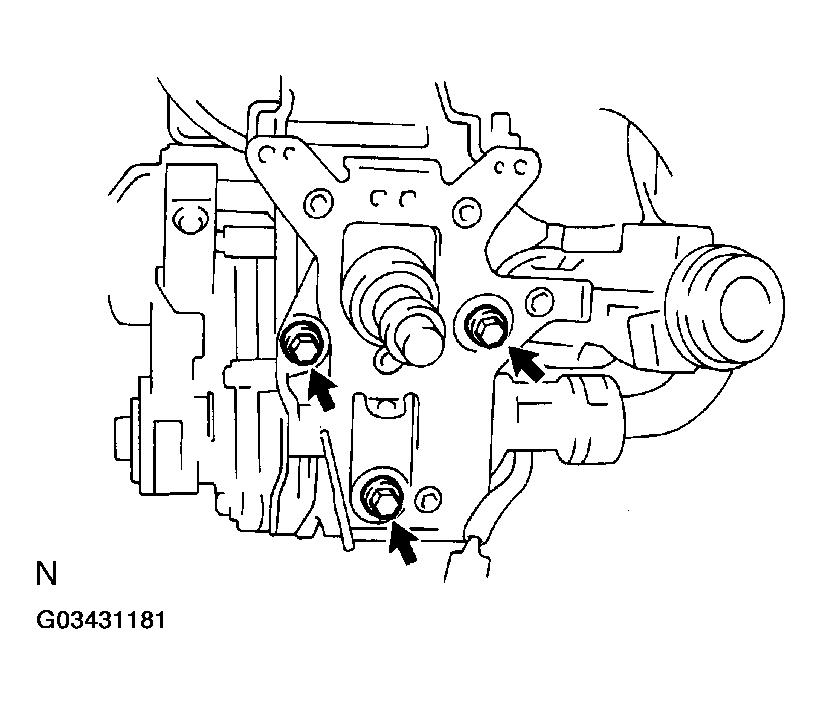

  Fig 1: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
