Column Shift Assembly: Installation
- INSTALL SHIFT LEVER ASSEMBLY
- Connect the shift lever assembly and transmission control cable (See REMOVAL ).
- Connect the shift lever connector.

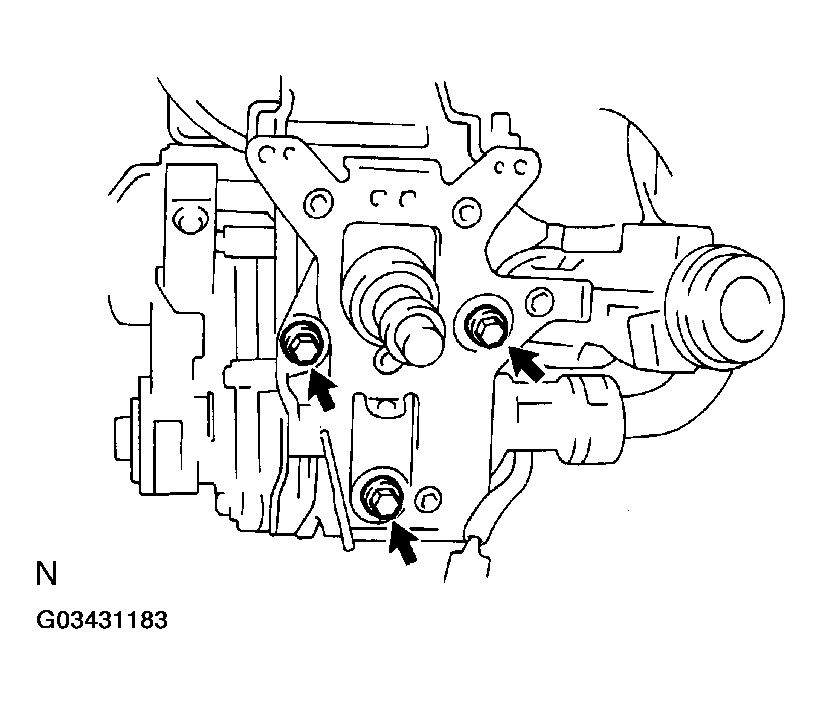

- Install the shift lever assembly with the 3 bolts.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
- INSTALL COMBINATION SWITCH (See INSTALLATION )
- INSTALL COLUMN LOWER AND UPPER PANELS (See INSTALLATION )
- INSTALL INSTRUMENT LOWER FINISH PANEL (See INSTALLATION )
- INSTALL STEERING WHEEL (See INSTALLATION )
- INSTALL STEERING WHEEL PAD (See INSTALLATION )
