Inverter Radiator: Removal
- DRAIN HV COOLANT (See ON-VEHICLE REPAIR )
- REMOVE FRONT BUMPER COVER (See COMPONENTS )
- DISCONNECT AMBIENT TEMPERATURE SENSOR
- DISCONNECT WATER TEMPERATURE SWITCH CONNECTOR
- REMOVE WATER TEMPERATURE SWITCH

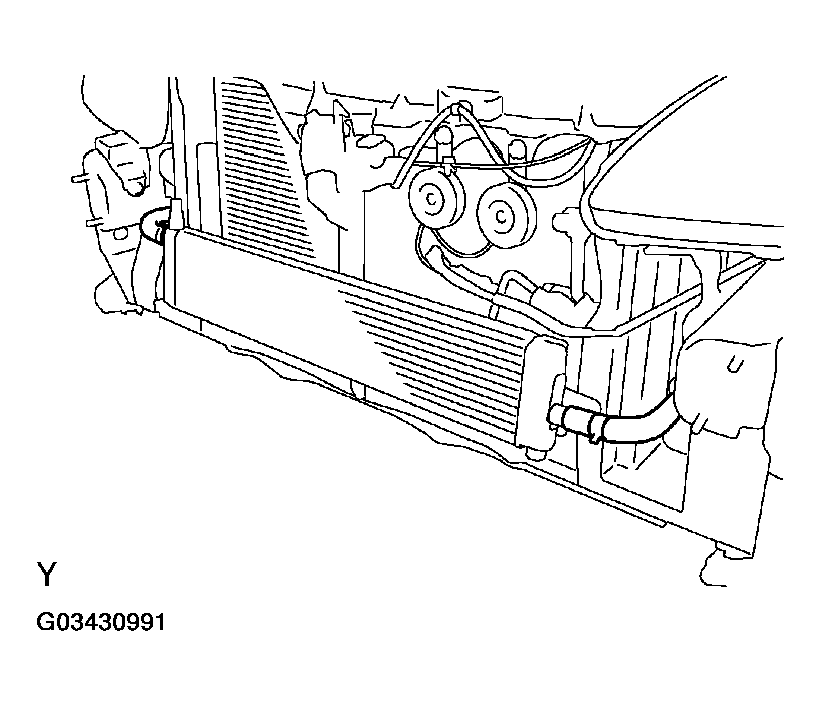

- DISCONNECT 2 WATER HOSES
- REMOVE INVERTER RADIATOR

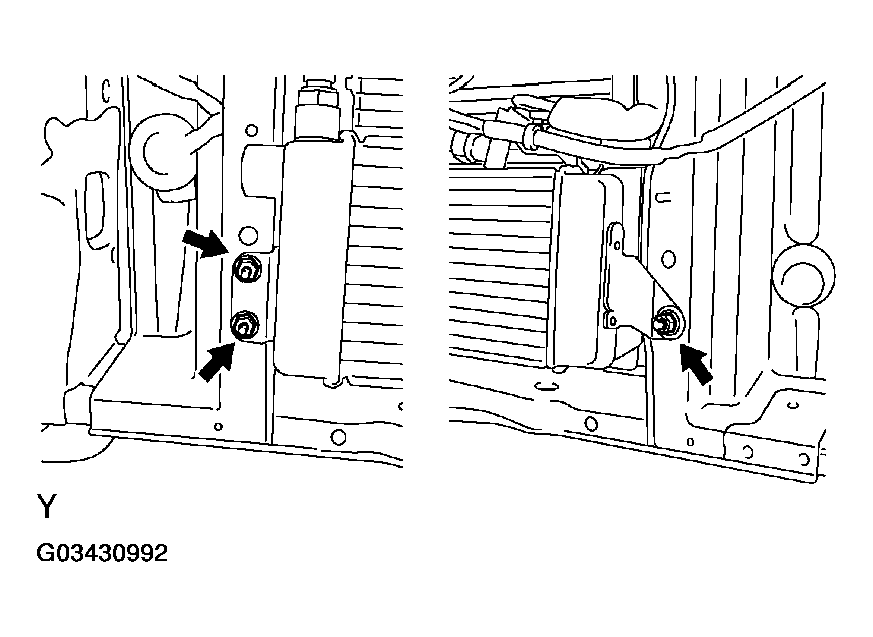

Remove the 3 nuts and inverter radiator.
