Inverter Radiator: Installation

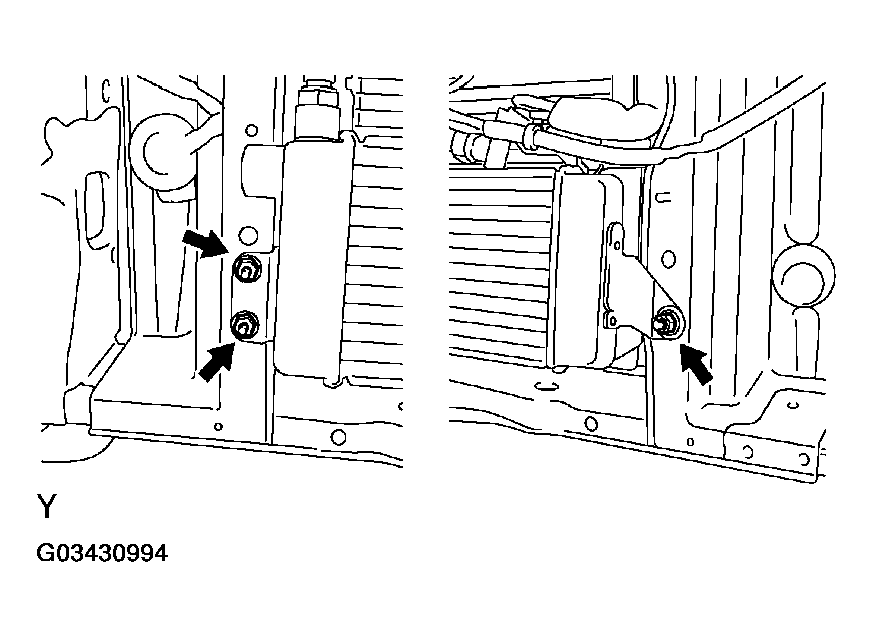

- INSTALL INVERTER RADIATOR
Install the inverter radiator with the 3 nuts.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

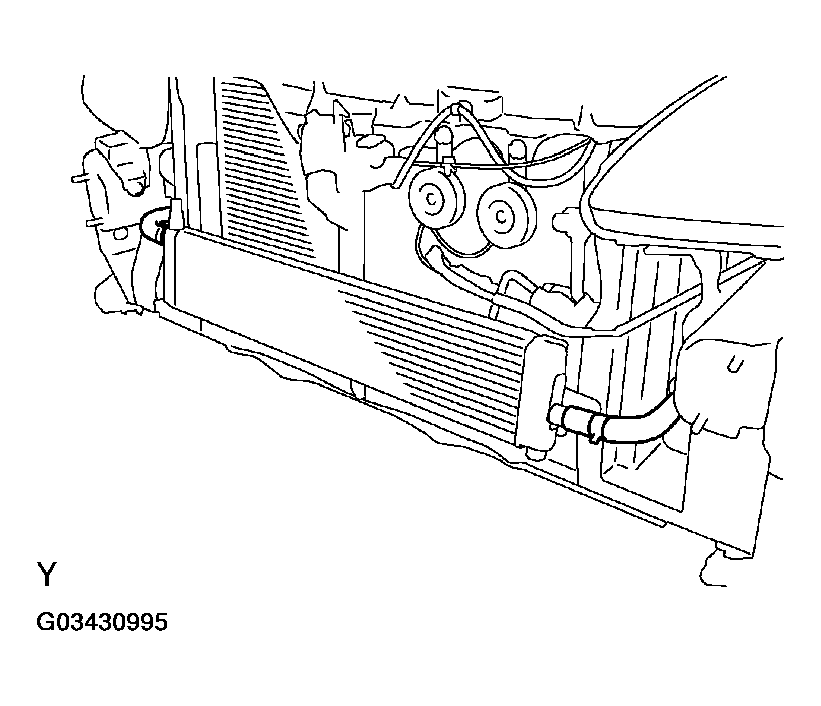

- CONNECT 2 WATER HOSES
- INSTALL WATER TEMPERATURE SWITCH
Torque: 7.4 N.m (75 kgf.cm, 65 in.lbf)
- CONNECT WATER TEMPERATURE SWITCH CONNECTOR
- CONNECT AMBIENT TEMPERATURE SENSOR
- INSTALL FRONT BUMPER COVER (See COMPONENTS )
- FILL WITH HV COOLANT (See ON-VEHICLE REPAIR )
