HV Battery: Installation
- INSTALL HV BATTERY
- Set the HV battery to the body.
- Connect the battery hose to the body.CAUTION: Since alkaline electrolyte may be got on the hose end, carry out the operation with considerable care.
- INSTALL BATTERY BRACKET

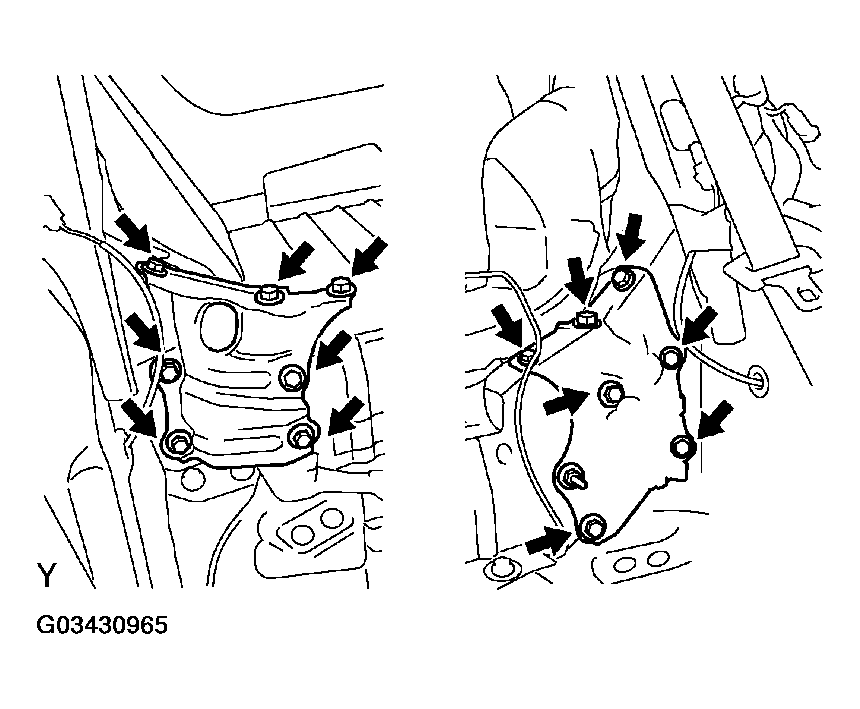

- Install the RH and LH battery bracket with the 13 bolts and nut.
Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

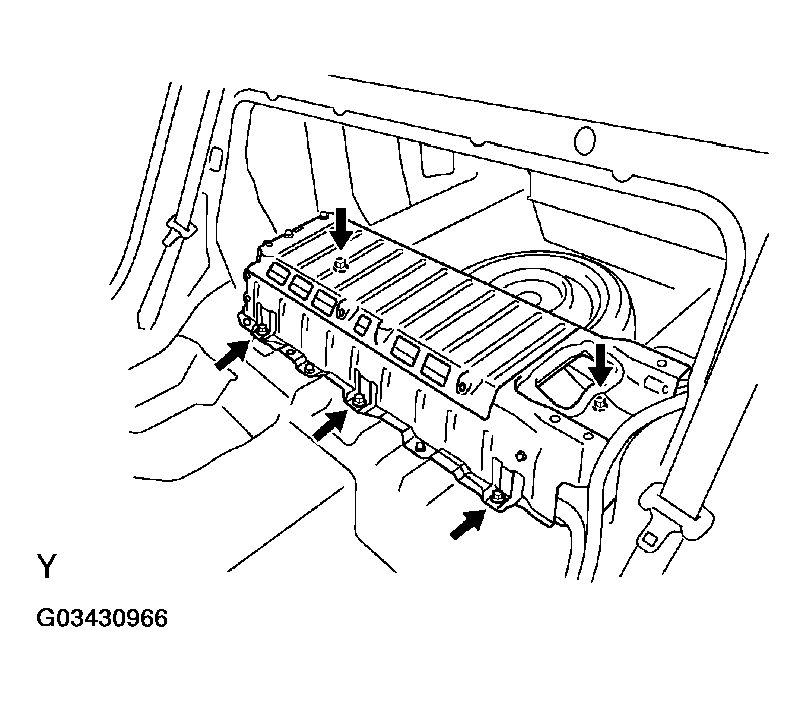

- Install and tighten the 5 bolts for HV battery.
Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)
- Install the RH and LH battery bracket with the 13 bolts and nut.
- INSTALL HIGH TENSION CABLE
- Install the earth terminal.

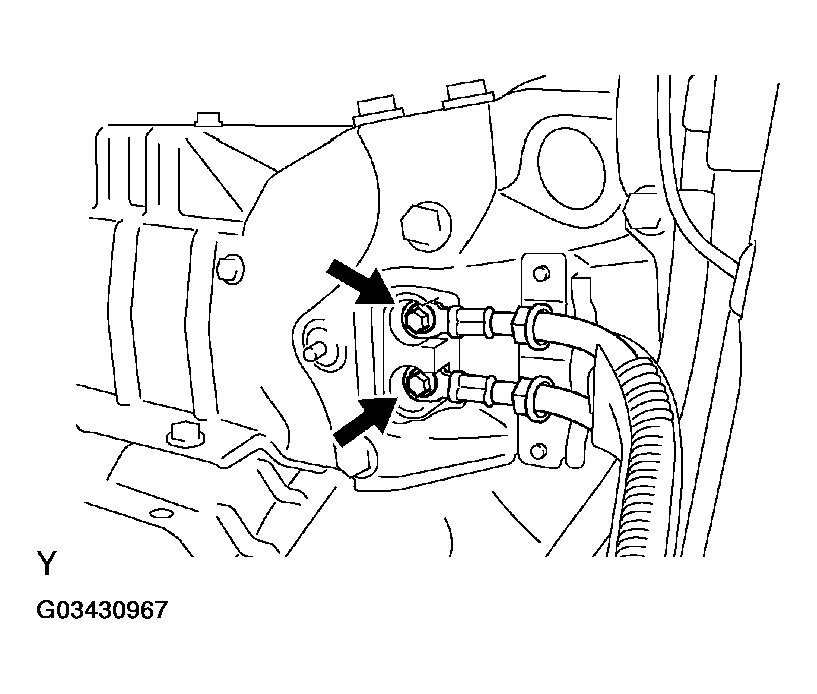

- Install the high tension cable with the 2 bolts.
Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)

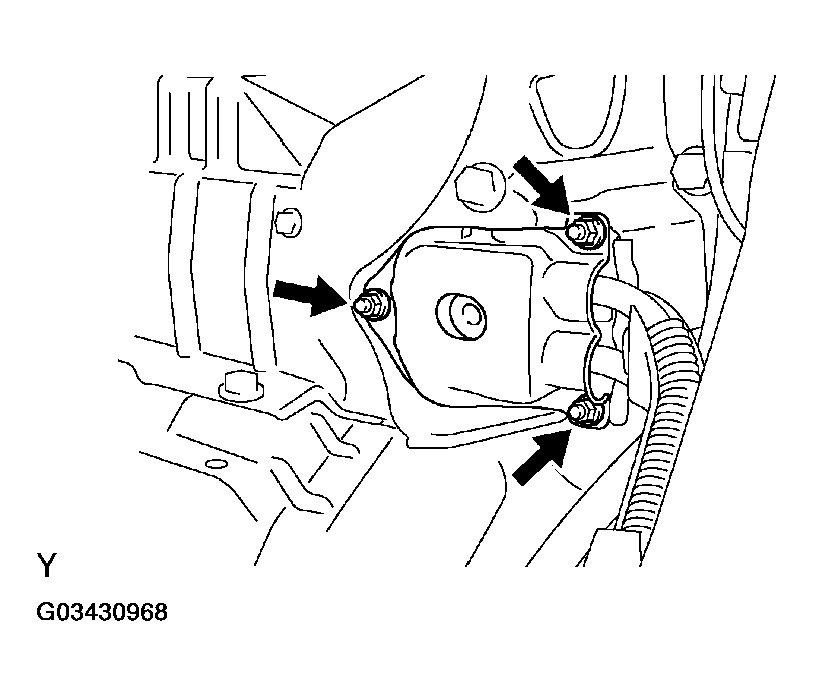

- Install the battery carrier catch bracket with the 3 nuts.
Torque: 8.0 N.m (80 kgf.cm, 71 in.lbf)
