HV Battery Cooling: Removal
- REMOVE REAR SEAT (See COMPONENTS )
- REMOVE LUGGAGE TRIM (See COMPONENTS )

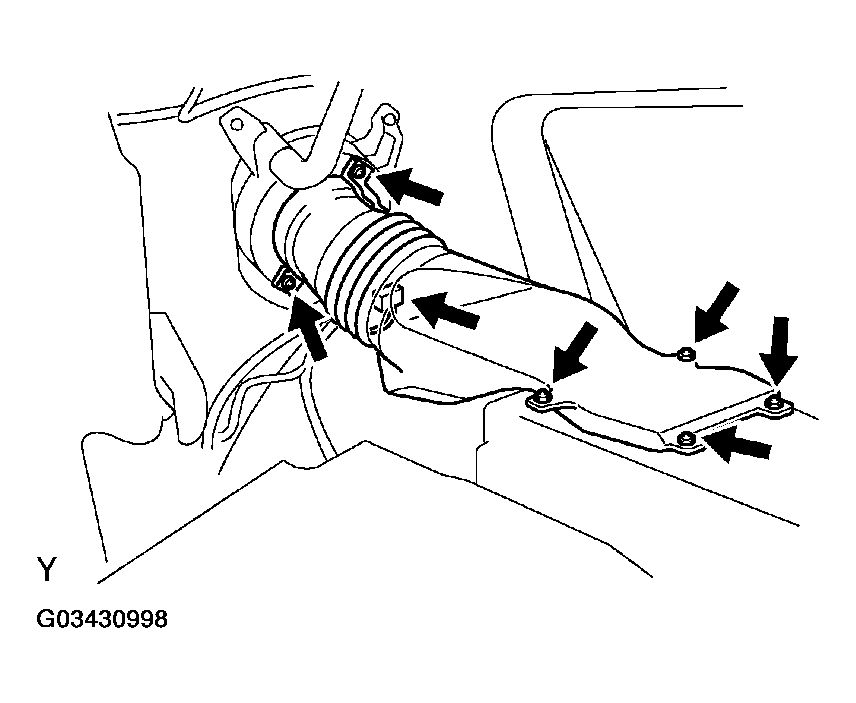

- REMOVE INNER VENTILATOR DUCT
Remove the 4 bolts and inner ventilator duct.

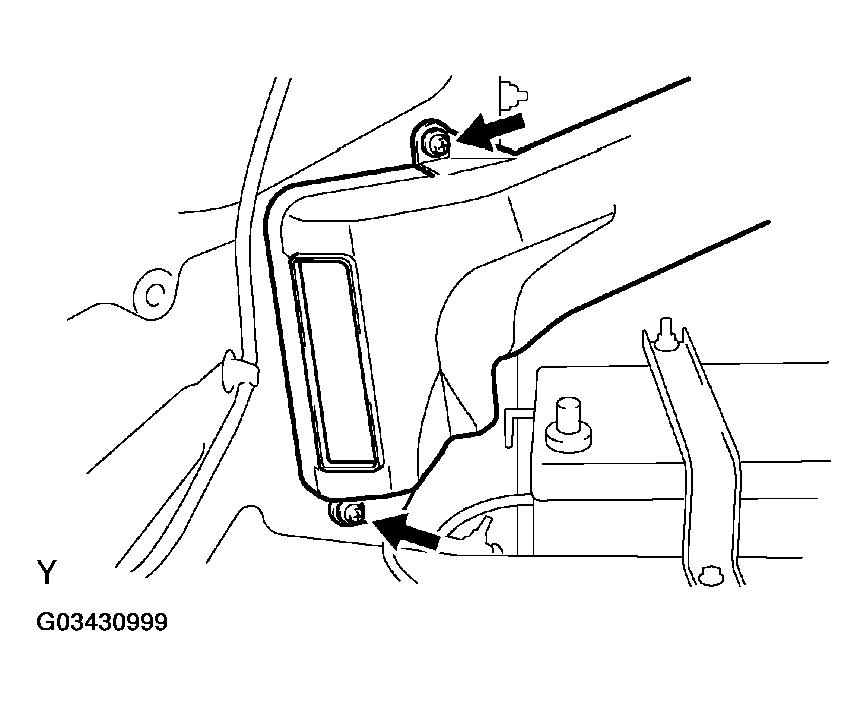

- REMOVE LOWER QUARTER VENTILATOR DUCT
Remove the 2 bolts and lower quarter ventilator duct.

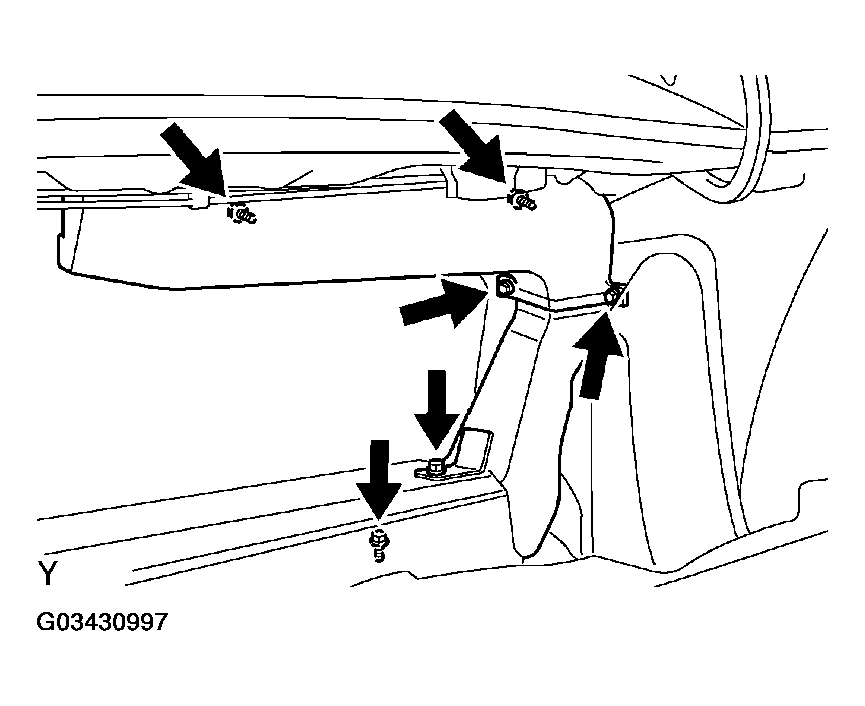

- REMOVE QUARTER VENTILATOR DUCT
- Disconnect the connector for blower motor control.
- Remove the 6 screws and quarter ventilator duct.
- REMOVE QUARTER INNER NO. 2 DUCT
Remove the 2 screws and quarter inner No. 2 duct.

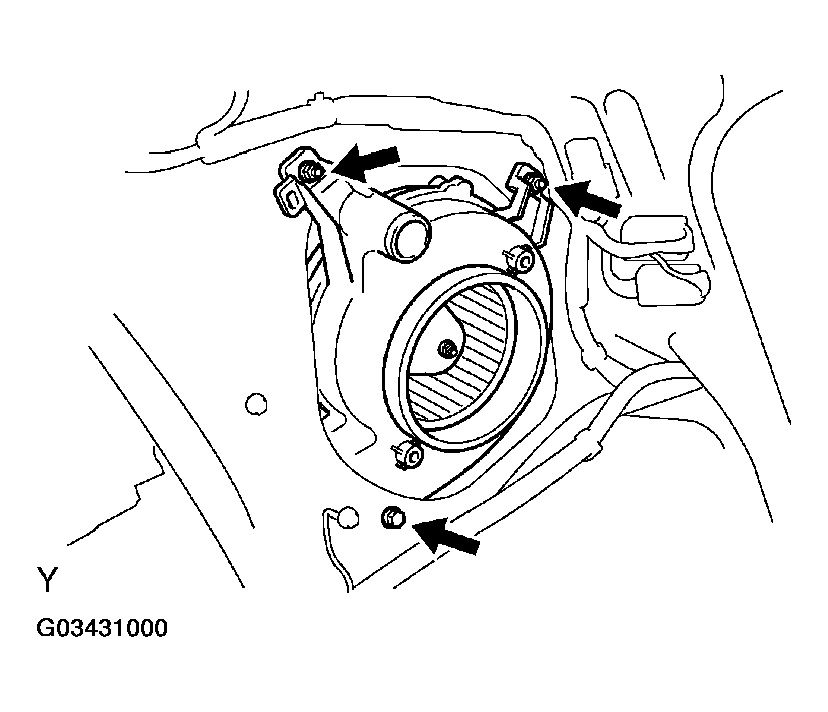

- REMOVE BLOWER ASSEMBLY
- Remove the quarter ventilation inner duct.
- Disconnect the connector for blower motor.
- Remove the bolt, 2 nuts and blower assembly.
