HV Battery Cooling: Inspection
- INSPECT BLOWER MOTOR OPERATION (See DTC P3077: BATTERY COOLING FAN MOTOR CIRCUIT MALFUNCTION )
- INSPECT BATTERY FAN RELAY

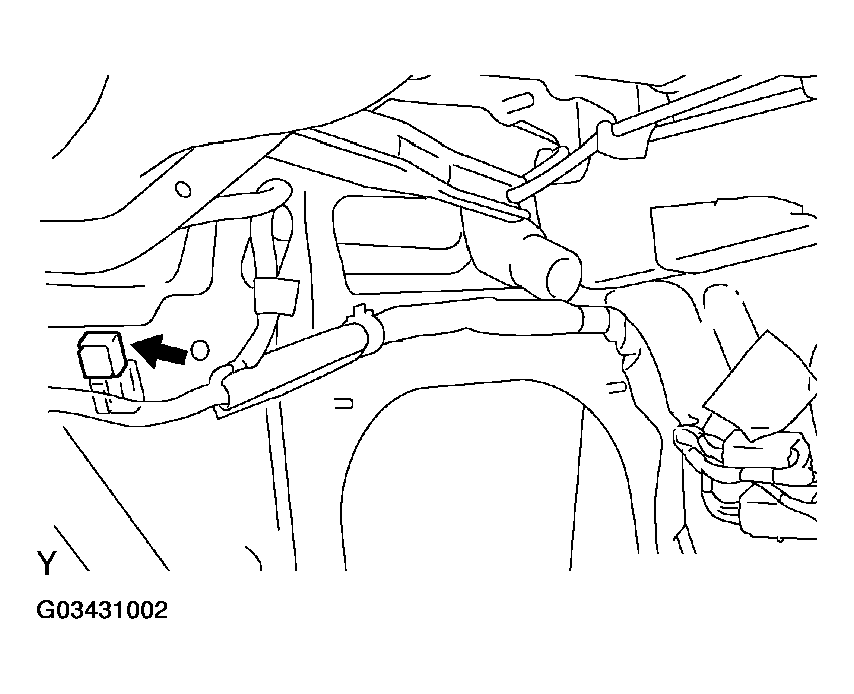

- Remove the battery fan relay.

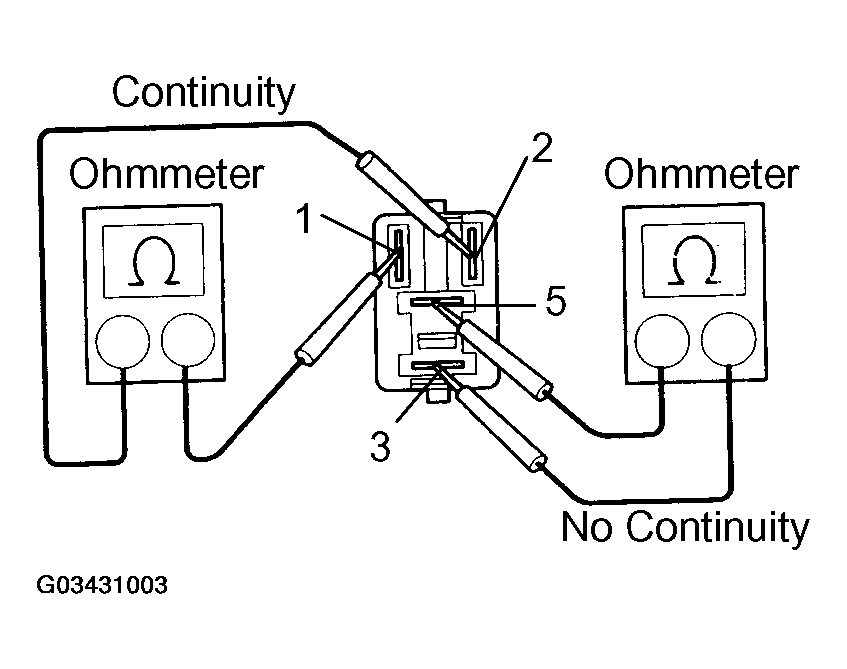

- Inspect the battery fan relay continuity.
- Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
- Check that there is no continuity between terminals 3 and 5.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If there is continuity, replace the relay.
- Using an ohmmeter, check that there is continuity between terminals 1 and 2.

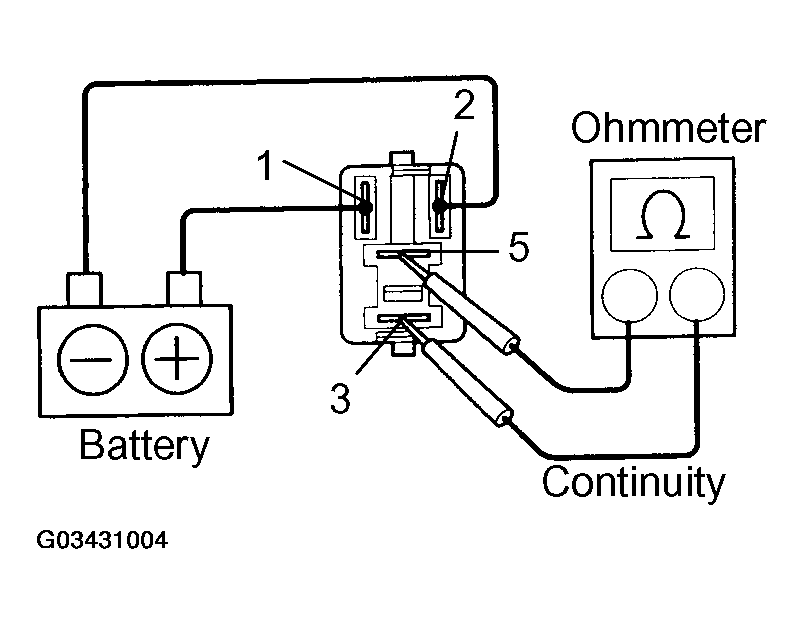

- Inspect the battery fan relay operation.
- Apply battery voltage across terminals 1 and 2.
- Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
- Install the battery fan relay.
