Converter And Inverter Assembly: Reassembly
- INSTALL WATER HOSE
- INSTALL BRACKET
Install the 4 brackets with the 6 bolts.
Torque: 25 N.m (255 kgf.cm, 18 ft.lbf)

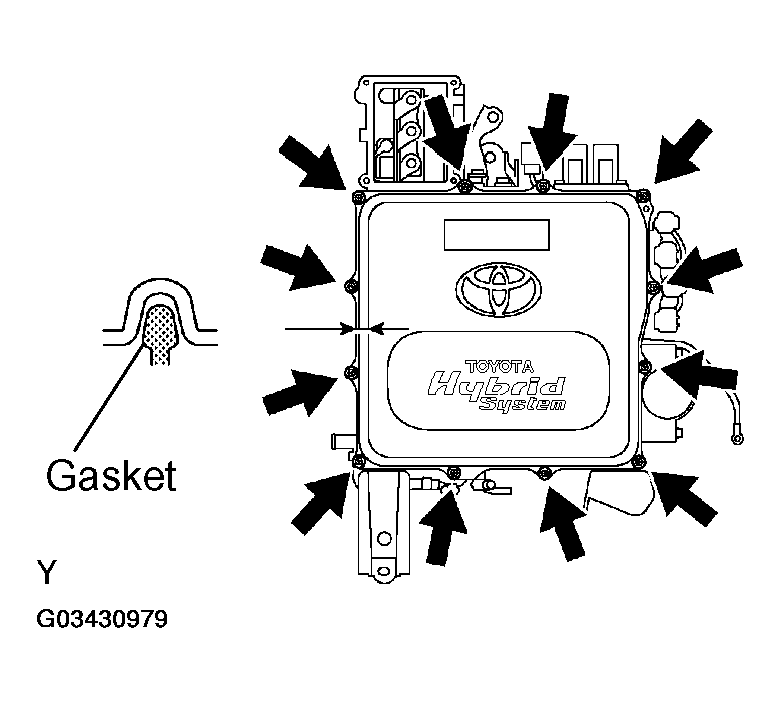

- INSTALL INVERTER COVER
- Install a new gasket to the inverter cover.
- Install the inverter cover with the 12 bolts.
Torque: 2.5 N.m (25 kgf.cm, 22 in.lbf)

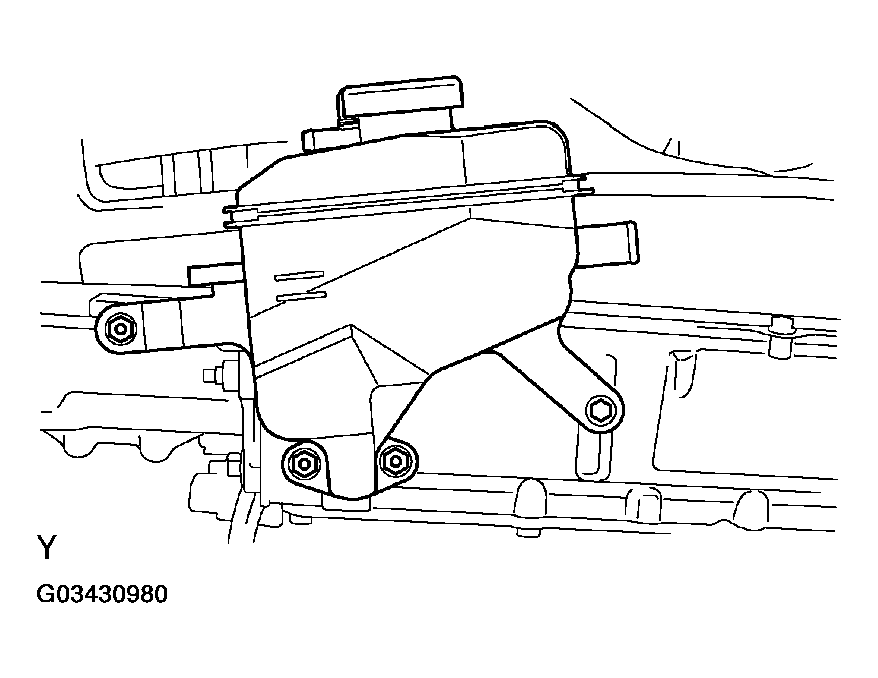

- INSTALL INVERTER RESERVOIR TANK
- Install a new O-ring to the inverter reservoir tank.
- Install the inverter reservoir tank with the 2 bolts and nuts.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
