Converter And Inverter Assembly: Installation
- INSTALL CONVERTER & INVERTER ASSEMBLY

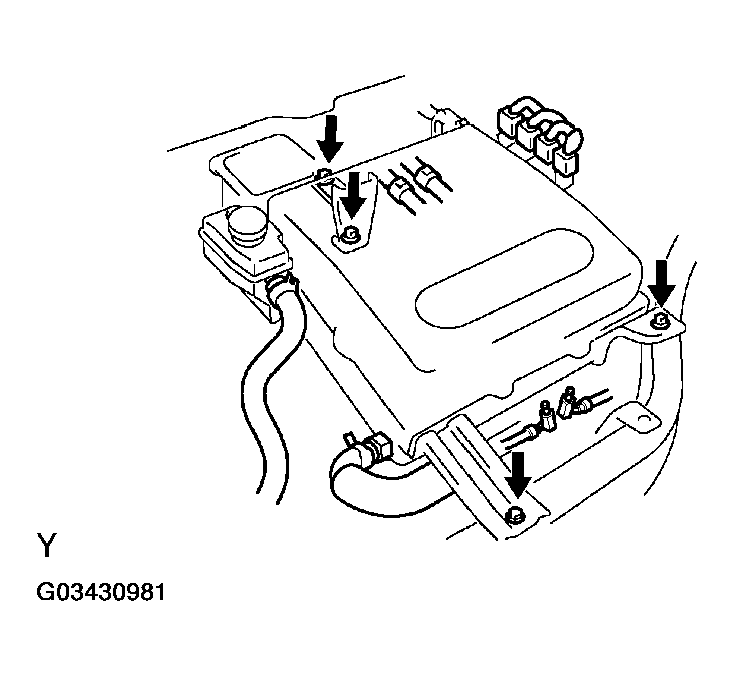

- Install the converter & inverter assembly with the 4 bolts.
Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)
- Connect the 3 water hoses to the converter & inverter assembly.
- Connect the 4 connectors.
- Connect the 2 power cable connectors.
- Install the ground cable to the radiator upper support.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
- Install the power cable for MG1 with the 3 bolts.
Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
NOTE: Be careful to prevent foreign matter from entering the inside of connector cover.
- Install the converter & inverter assembly with the 4 bolts.
