2003 Toyota PriusFACTORY OEM SERVICE PROCEDURE
Converter And Inverter Assembly: Disassembly

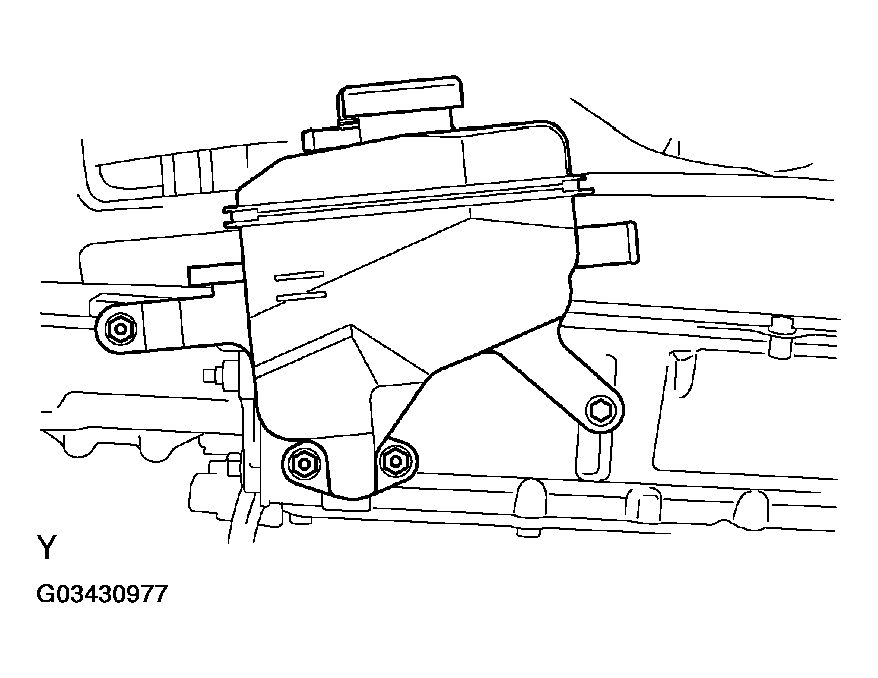

- REMOVE INVERTER RESERVOIR TANK
- Remove the 2 bolts, nuts and inverter reservoir tank.
- Remove the O-ring from the inverter reservoir tank.

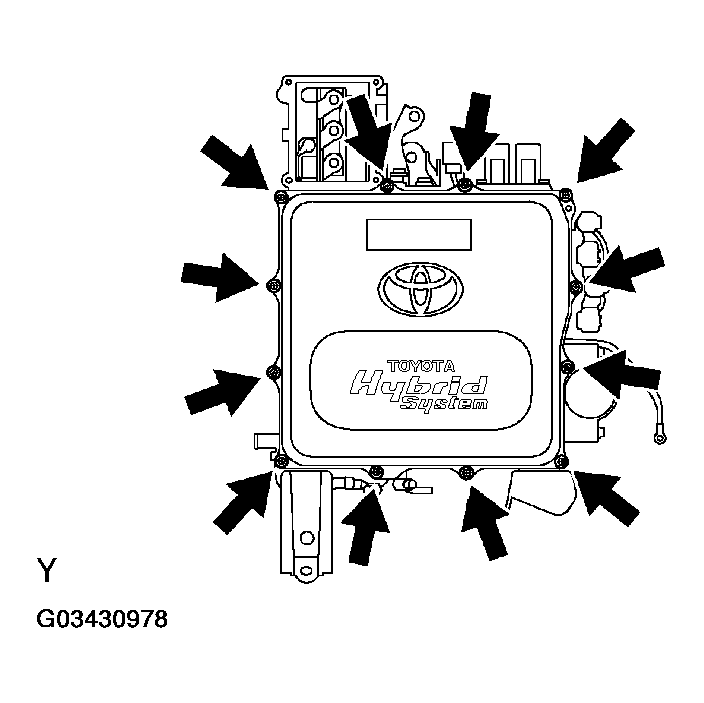

- REMOVE INVERTER COVER NOTE:
- Do not remove the inverter cover unless necessary. Doing so may result in vehicle breakdown or electric shock.
- When replacing the inverter cover, quickly replace it to prevent water, dirt or dust from entering into the inverter.
- Remove the 12 bolts and inverter cover.
- Remove the gasket from the inverter cover.
- REMOVE BRACKET
Remove the 6 bolts and 4 brackets.
- REMOVE WATER HOSE
