2003 Toyota Matrix Base, 4WDFACTORY OEM SERVICE PROCEDURE

Power Window Control System: Inspection

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. POWER WINDOW SYSTEM CIRCUIT

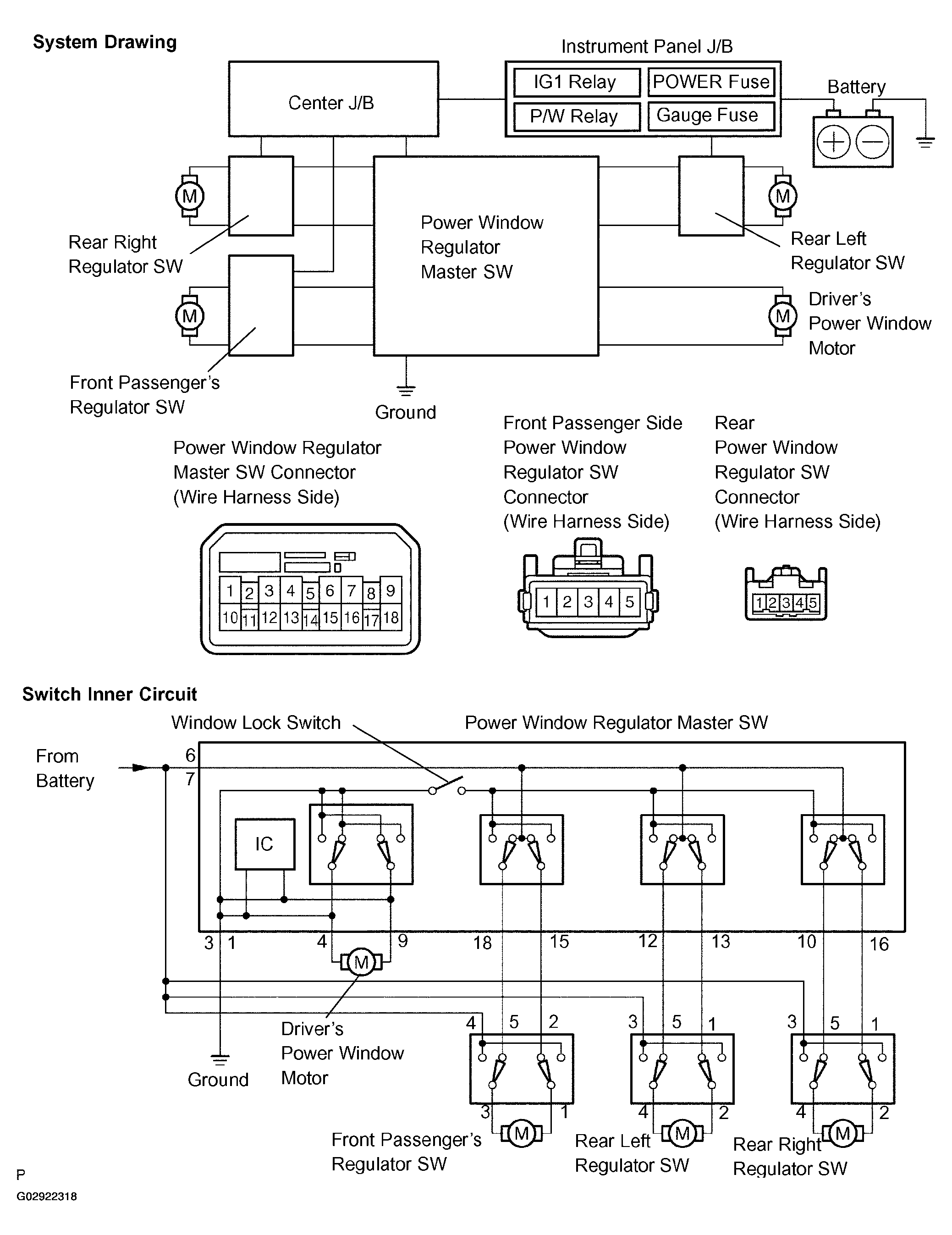

    Fig 1: Inspecting Power Window System Circuit
    G02922318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
    1. Inspect the master switch continuity.

      [Driver's switch (Window unlock and lock)]

      Standard:

      Window Unlock And Lock Drivers Switch Specific Condition

      Switch Position Symbols (Terminal No.) Specified Condition
      UP DU (4) <==> B (6) <==> B (7) Continuity
      UP E (1) <==> E (3) <==> DD (9) Continuity
      OFF E (1) <==> E (3) <==> DU (4) Continuity
      OFF E (1) <==> E (3) <==> DD (9) Continuity
      DOWN E (1) <==> E (3) <==> DU (4) Continuity
      DOWN B (6) <==> B (7) <==> DD (9) Continuity
      DOWN AUTO E (1) <==> E (3) <==> DU (4) Continuity
      DOWN AUTO B (6) <==> B (7) <==> DD (9) Continuity

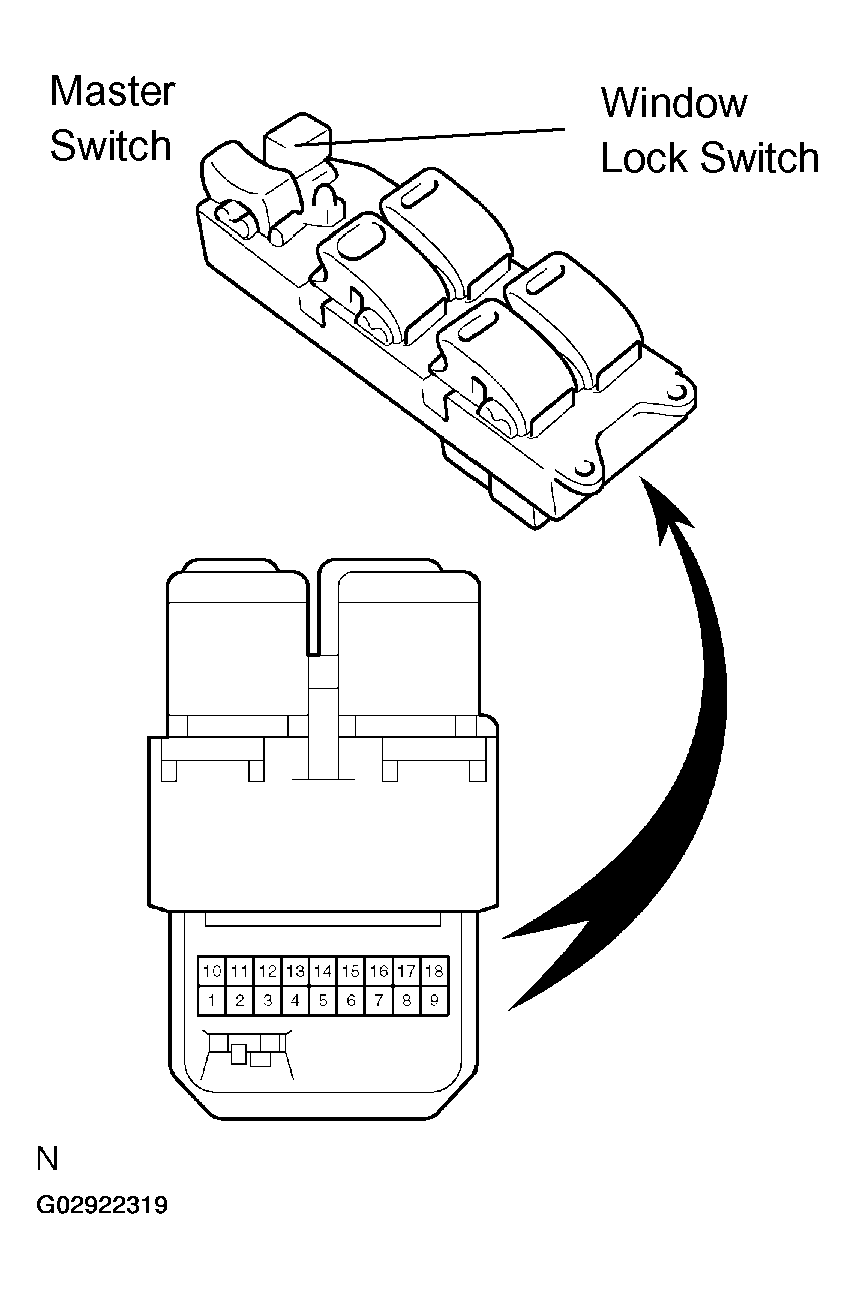

      Fig 2: Inspecting Power Window Regulator Master Switch
      G02922319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      [Front passenger's switch (Window unlock)]

      Standard:

      Window Unlock Front Passenger's Switch Specified Condition

      Switch Position Symbols (Terminal No.) Specified Condition
      UP E (1) <==> E (3) <==> PD (15) Continuity
      UP B (6) <==> B (7) <==> PU (18) Continuity
      OFF E (1) <==> E (3) <==> PD (15) Continuity
      OFF E (1) <==> E (3) <==> PU (18) Continuity
      DOWN E (1) <==> E (3) <==> PU (18) Continuity
      DOWN B (6) <==> B (7) <==> PD (15) Continuity

      [Front passenger's switch (Window lock)]

      Standard:

      Window Lock Front Passenger's Switch Specified Condition

      Switch Position Symbols (Terminal No.) Specified Condition
      UP B (6) <==> B (7) <==> PU (18) Continuity
      OFF PD (15) <==> PU (18) Continuity
      DOWN B (6) <==> B (7) <==> PD (15) Continuity

      [Rear left switch (Window unlock)]

      Standard:

      Window Unlock Rear Left Switch Specified Condition

      Switch Position Symbols (Terminal No.) Specified Condition
      UP E (1) <==> E (3) <==> RLD (13) Continuity
      UP B (6) <==> B (7) <==> RLU (12) Continuity
      OFF E (1) <==> E (3) <==> RLD (13) Continuity
      OFF E (1) <==> E (3) <==> RLU (12) Continuity
      DOWN E (1) <==> E (3) <==> RLU (12) Continuity
      DOWN B (6) <==> B (7) <==> RLD (13) Continuity

      [Rear left switch (Window lock)]

      Standard:

      Window Lock Rear Left Switch Specified Condition

      Switch Position Symbols (Terminal No.) Specified Condition
      UP B (6) <==> B (7) <==> RLU (12) Continuity
      OFF RLU (12) <==> RLD (13) Continuity
      DOWN B (6) <==> B (7) <==> RLD (13) Continuity

      [Rear right switch (Window unlock)]

      Standard:

      Window Unlock Rear Right Switch Specified Condition

      Switch Position Symbols (Terminal No.) Specified Condition
      UP B (6) <==> B (7) <==> RRU (10) Continuity
      UP E (1) <==> E (3) <==> RRD (16) Continuity
      OFF E (1) <==> E (3) <==> RRU (10) Continuity
      OFF E (1) <==> E (3) <==> RRD (16) Continuity
      DOWN E (1) <==> E (3) <==> RRU (10) Continuity
      DOWN B (6) <==> B (7) <==> RRD (16) Continuity

      [Rear right switch (Window lock)]

      Standard:

      Window Lock Rear Right Switch Specified Condition

      Switch Position Symbols (Terminal No.) Specified Condition
      UP B (6) <==> B (7) <==> RRU (10) Continuity
      OFF RRU (10) <==> RRD (16) Continuity
      DOWN B (6) <==> B (7) <==> RRD (16) Continuity

      If the result is not as specified, replace the master switch.

    2. Inspect the master switch illumination.

      Standard:

      Master Switch Specified Condition

      Measuring Condition Specified Condition
      Battery Positive (+) Terminal - 6 Switch Illumination Lights Up
      Battery Negative (-) Terminal - 3 Switch Illumination Lights Up

      If the result is not as specified, replace the master switch.

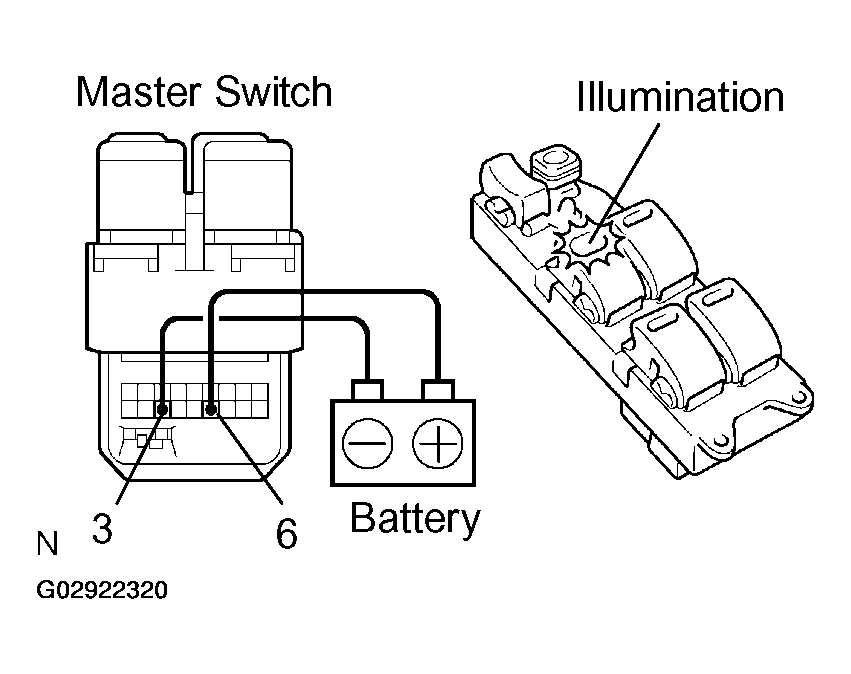

      Fig 3: Inspecting Master Switch Illumination
      G02922320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT POWER WINDOW REGULATOR SWITCH ASSY
    1. Inspect the front passenger's regulator switch continuity.

      Standard:

      Front Passenger's Regulator Switch Specified Condition

      Switch Position Symbols (Terminal No.) Specified Condition
      UP D (1) <==> SD (2) Continuity
      UP U (3) <==> B (4) Continuity
      OFF D (1) <==> SD (2) Continuity
      OFF U (3) <==> SU (5) Continuity
      DOWN D (1) <==> B (4) Continuity
      DOWN U (3) <==> SU (5) Continuity

      If the result is not as specified, replace the regulator switch.

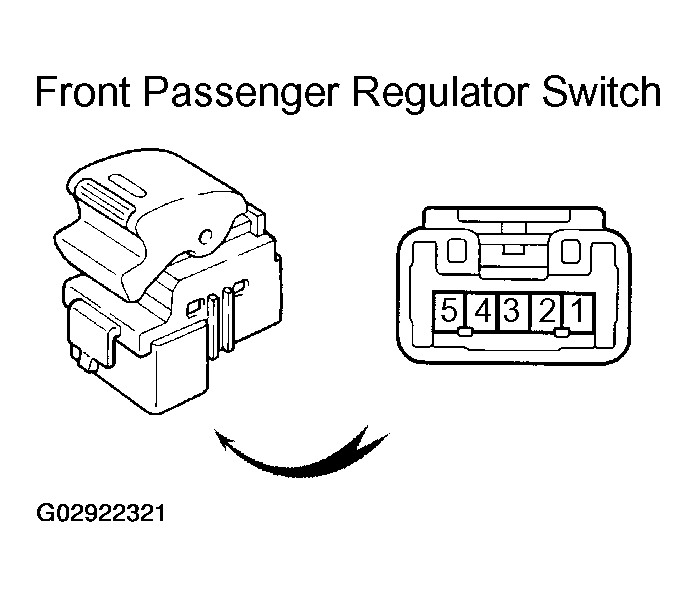

      Fig 4: Identifying Front Passenger Regulator Switch Connector Terminal
      G02922321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT POWER WINDOW REGULATOR SWITCH ASSY REAR
    1. Inspect the rear regulator switch continuity.

      Standard:

      Rear Power Window Regulator Switch Specified Condition

      Switch Position Symbols (Terminal No.) Specified Condition
      UP SD (1) <==> D (2) Continuity
      UP B (3) <==> U (4) Continuity
      OFF SD (1) <==> D (2) Continuity
      OFF U (4) <==> SU (5) Continuity
      DOWN D (2) <==> B (3) Continuity
      DOWN U (4) <==> SU (5) Continuity

      If the result is not as specified, replace the regulator switch.

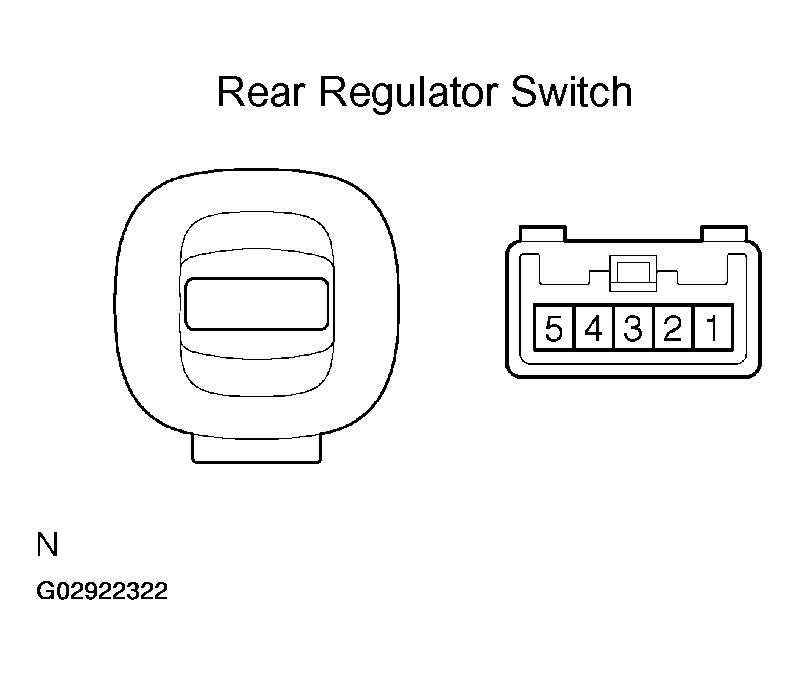

      Fig 5: Identifying Rear Regulator Switch Connector Terminal
      G02922322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT POWER WINDOW REGULATOR MOTOR
    1. Inspect the regulator motor operation.
      NOTE:
      • Driver's side and rear RH regulator motors should be inspected in the same procedure.
      • Passenger's side and rear LH regulator motors should be inspected in the same procedure.
        1. Check that the motor operates smoothly when the battery positive voltage is applied to each terminal of the connector.

        Standard [Driver's side and rear RH side]:

        Measuring Condition Operational Direction

        Measuring Condition Operational Direction
        Battery Positive (+) Terminal - 4 Clockwise Toward Driving Axis
        Battery Negative (-) Terminal - 5 Clockwise Toward Driving Axis
        Battery Positive (+) Terminal - 5 Counterclockwise Toward Driving Axis
        Battery Negative (-) Terminal - 4 Counterclockwise Toward Driving Axis

        Standard [Front passenger's side and rear LH side]:

        Measuring Condition Operational Direction

        Measuring Condition Operational Direction
        Battery Positive (+) Terminal - 5 Clockwise Toward Driving Axis
        Battery Negative (-) Terminal - 4 Clockwise Toward Driving Axis
        Battery Positive (+) Terminal - 4 Counterclockwise Toward Driving Axis
        Battery Negative (-) Terminal - 5 Counterclockwise Toward Driving Axis

        If the result is not as specified, replace the motor.

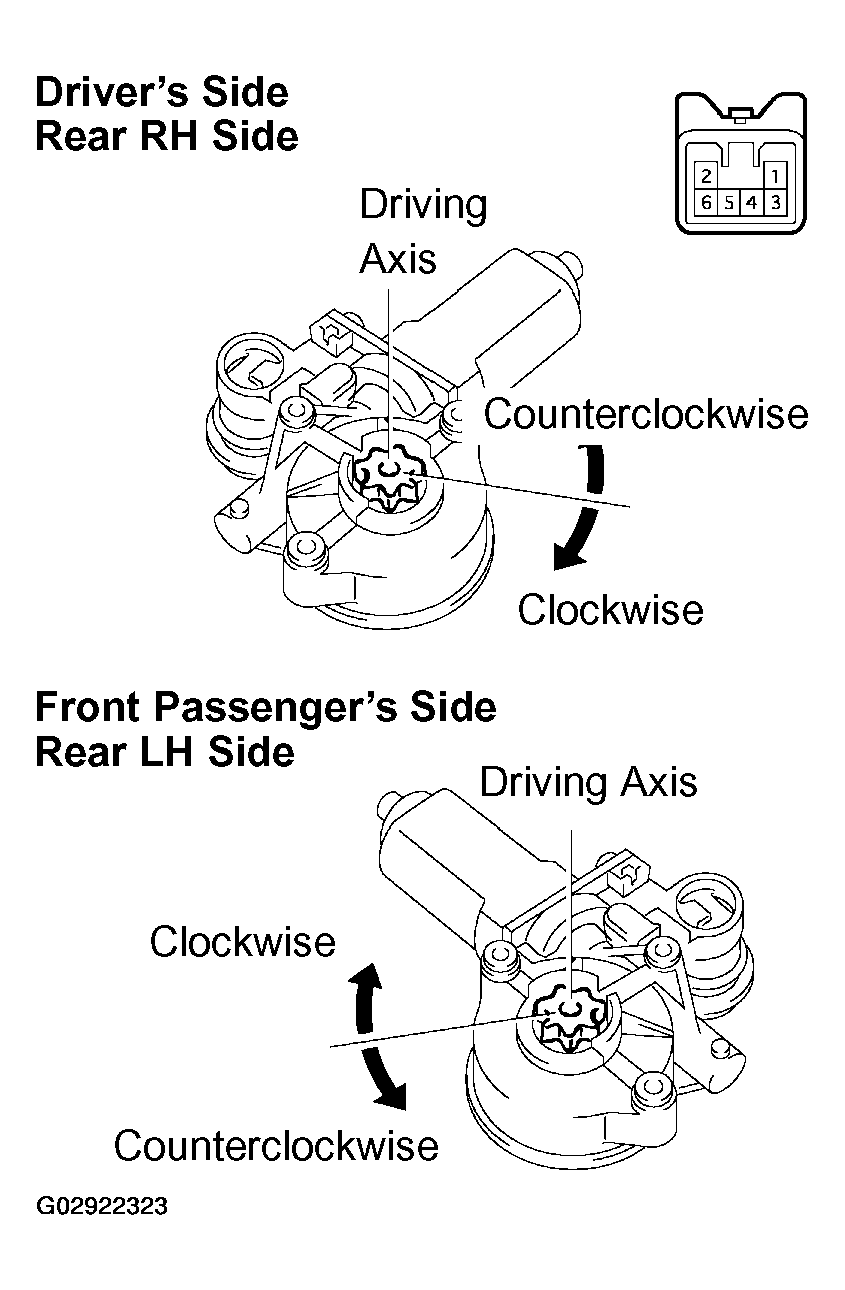

        Fig 6: Inspecting Power Window Regulator Motor
        G02922323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the PTC operation inside the regulator motor.
      NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
      1. Set a DC 400 A probe of the TOYOTA electrical tester in the wire harness of terminal 4 or 5.
        NOTE: Match the arrow mark of the probe with the current direction.
