2003 Toyota Corolla LE, AutomaticFACTORY OEM SERVICE PROCEDURE
Front Wheel Alignment Procedures: Adjustment
- INSPECT TIRE (See INSPECTION )
- MEASURE VEHICLE HEIGHT
Vehicle height:

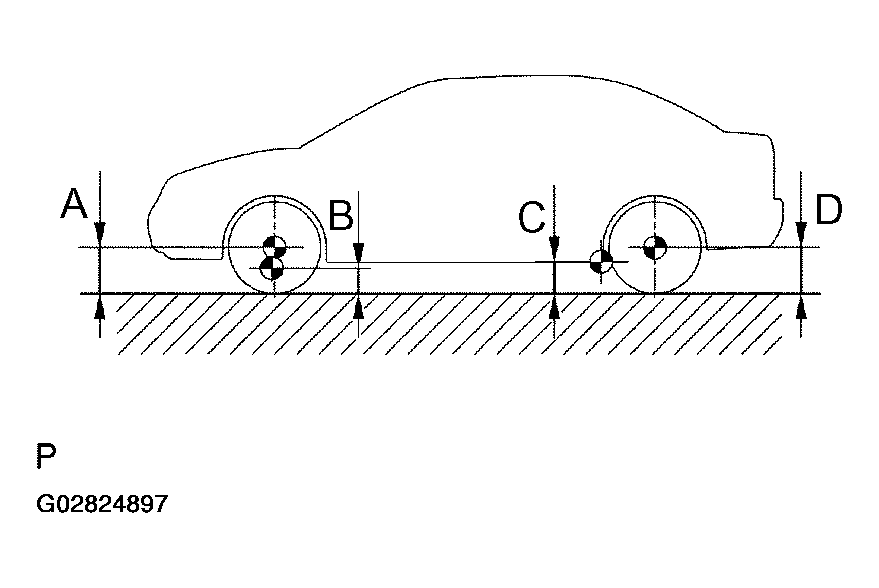

Vehicle Height TableFront A - B: 87 mm (3.43 in.) Rear D - C 43 mm (1.69 in.) - Measuring points:
- A: Ground clearance of front wheel center
- B: Ground clearance of lower suspension arm front bolt center
- C: Ground clearance of axle beam set bolt center
- D: Ground clearance of rear wheel center
