2003 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE

Engine Operating Condition

The values given below for normal condition are representative values, so a vehicle may still be normal even if it's value varies differ from those listed here. So do not decide whether a part is faulty or not solely according to the normal condition here.

  1. For CARB Mandated Signals, see Fig 1.
  2. For TOYOTA Enhanced Signals, see Fig 2.

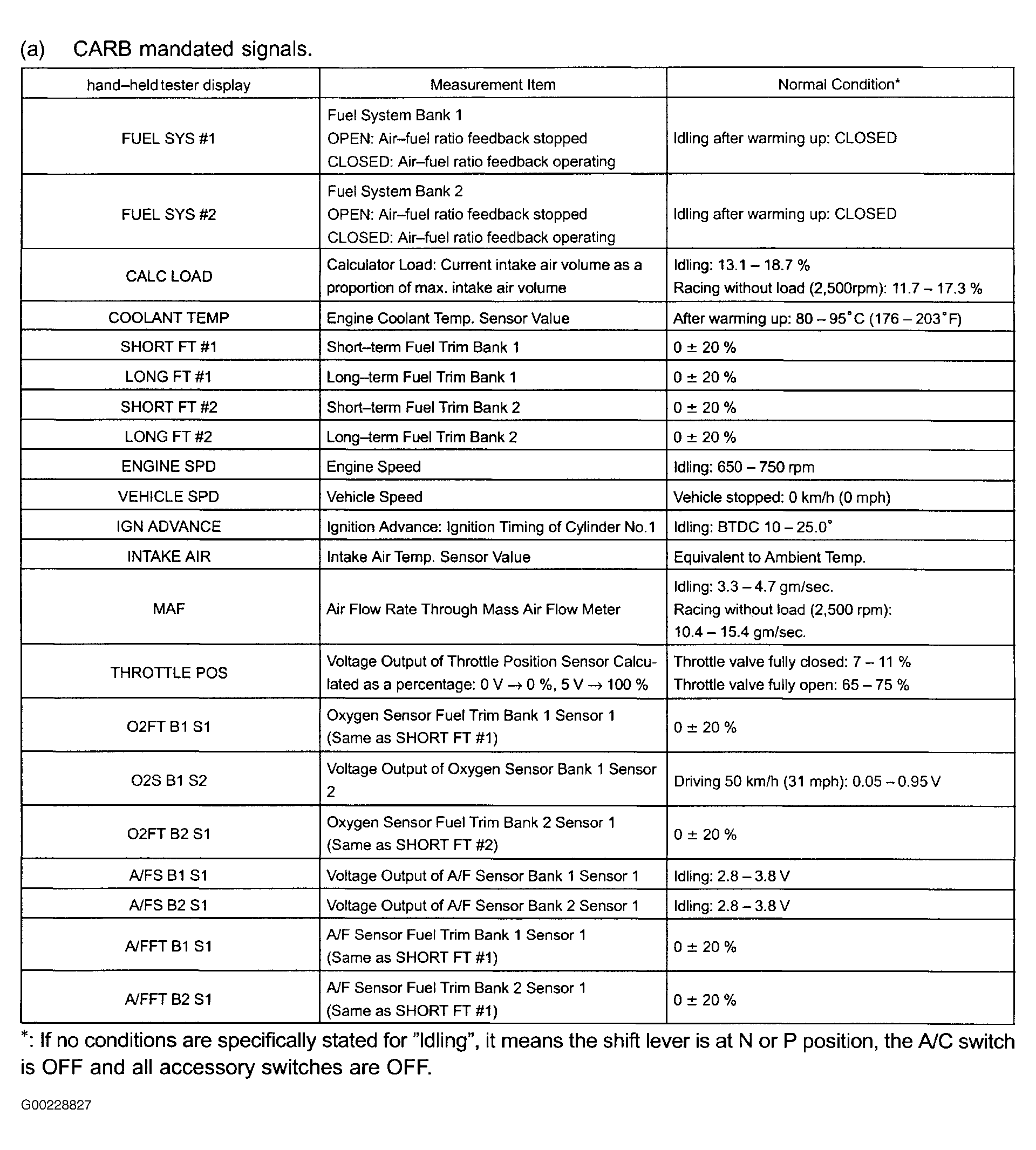

Fig 1: Identifying CARB Mandated Signals Chart
G00228827Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
