Hybrid Transaxle Assembly: Reassembly

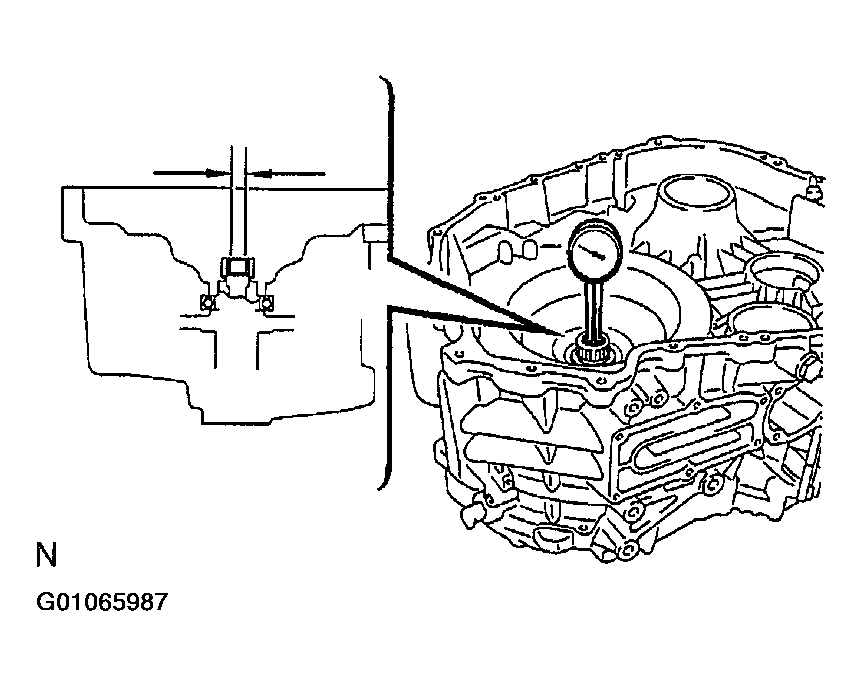

- Inspect rotor bush of MG2 assembly
.
Using a dial indicator, measure the inside diameter of the rotor bush.
Standard diameter: 20.025 - 20.046 mm (0.78838 - 0.78921 in.).
Maximum diameter: 20.096 mm (0.79118 in.).
If the inside diameter exceeds the limit, replace the MG2 assembly.

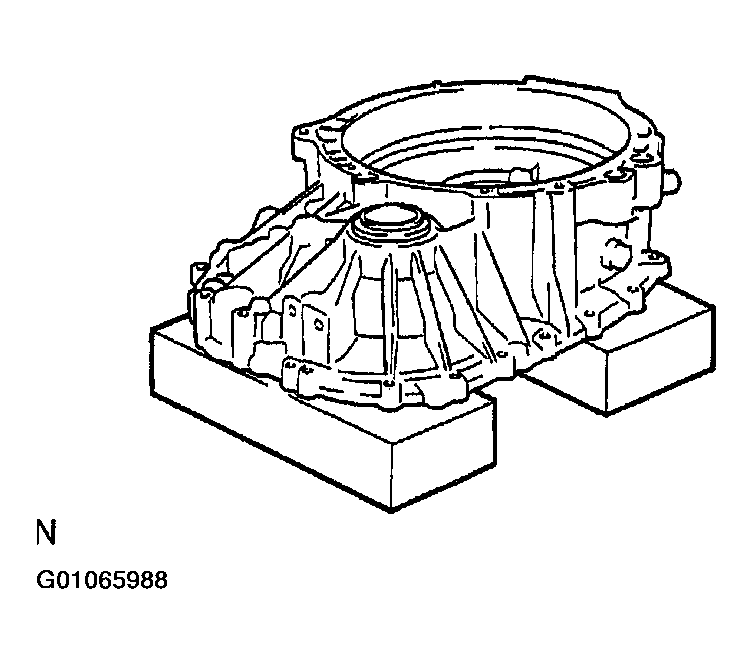

- Place wood block under MG1 assembly to stabilize .

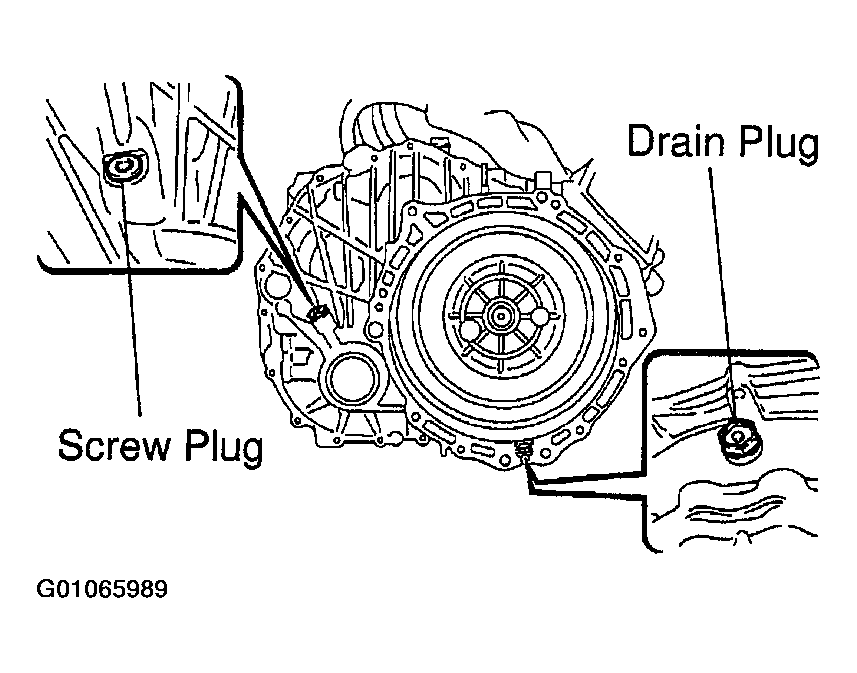

- Install drain plug and screw plug (MG1 Side)
:
- Apply liquid sealer to the screw plug and install it to the MG1 assembly with a hexagon wrench.
Sealant: Part No. 08833-00080, TREE BOND 1344, LOCTITE 242 or equivalent.
Torque: 12.7 N.m (130 kgf.cm, 9 ft.lbf) .
- Install a new gasket and the drain plug.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf) .
- Apply liquid sealer to the screw plug and install it to the MG1 assembly with a hexagon wrench.
