Differential Case: Reassembly
- Assemble differential case
:
- Coat the 2 side gear thrust washers and 2 pinion thrust washers with ATF.
- Install the 2 side gears, 2 pinions and 4 thrust washers to the case. See Figure.
- Check the side gear backlash.

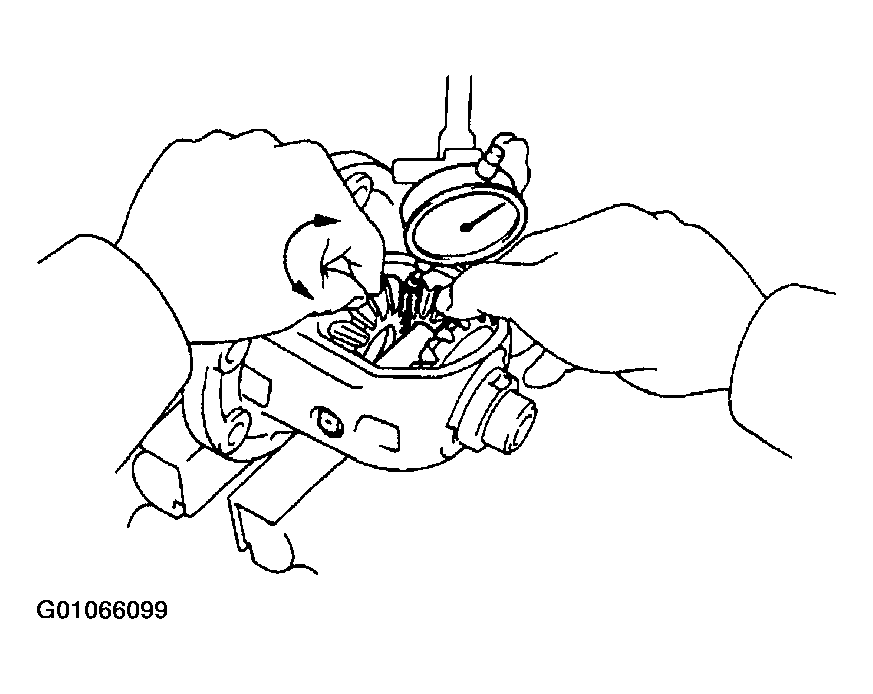

Measure the side gear backlash while pushing one pinion gear toward the case.
Standard backlash:
0.05 - 0.20 mm (0.0020 - 0.0079 in.)
Referring to Fig 2 , select thrust washers which backlash is surely within the specified range. Select washers of the same size for both sides.
