Column Shift Assembly: Installation
- Install shift lever assembly:
- Connect the shift lever assembly and transmission control cable. See steps 7 & 8 of REMOVAL .
- Connect the shift lever connector.

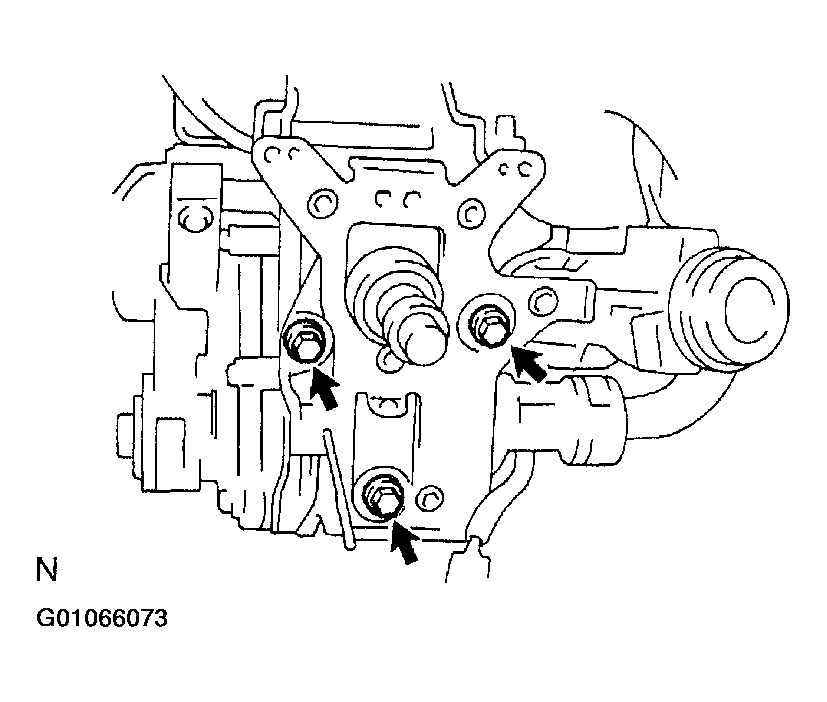

- Install the shift lever assembly with the 3 bolts.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf) .
- Install combination switch. See STEP 13 - INSTALL COMBINATION SWITCH WITH SPIRAL CABLE .
- Install column lower and upper panels. See STEP 15 - INSTALL LOWER INSTRUMENT FINISH PANELS .
- Install INSTRUMENT LOWER FINISH PANEL .
- Install steering wheel, see STEP 17 - INSTALL STEERING WHEEL .
- Install steering wheel pad, see STEP 18 - INSTALL STEERING WHEEL PAD .
