2002 Toyota PriusFACTORY OEM SERVICE PROCEDURE
Special Notes For Vehicle Inspection
- VEHICLE CONDITIONS
- Before activating the service mode, turn the air conditioner off, start the engine with the shift lever at P position, and check that the engine stops within several seconds after starting. (Engine warm up check).

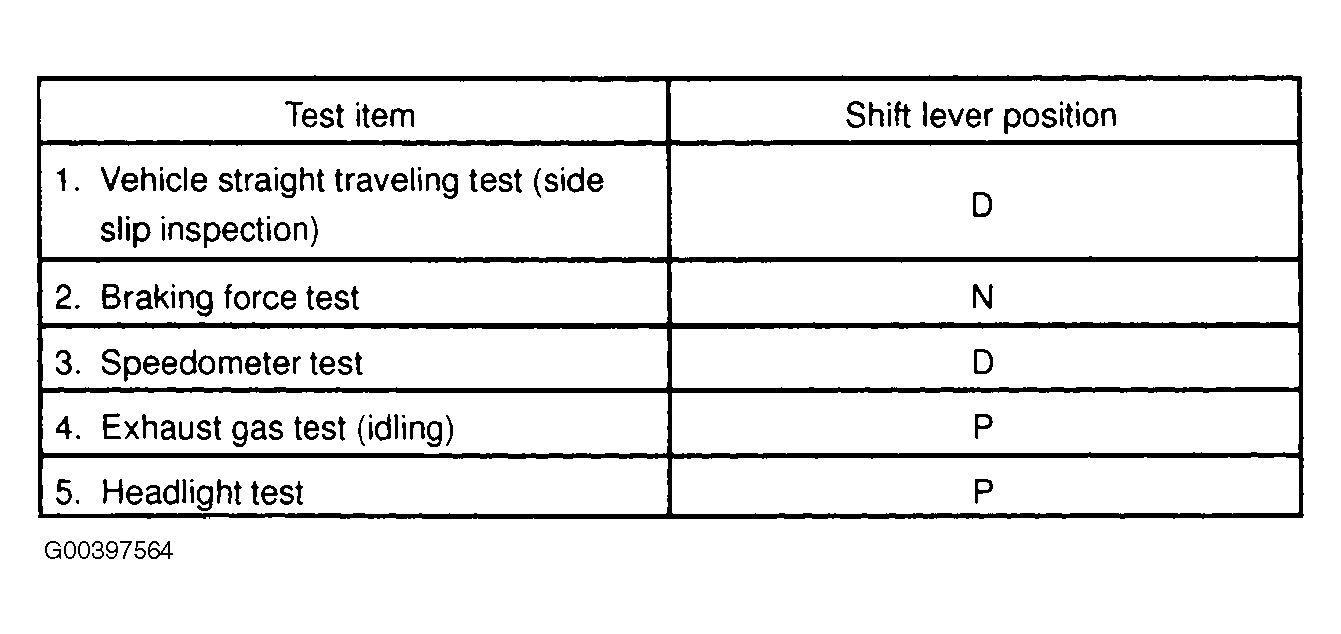

- Activate the service mode and inspect the vehicle. The shift position for each test is as described in Fig 1.
- Reset the service mode immediately after completion of inspection.CAUTION: Traveling on a road without resetting the service mode may damage the transaxle.
- SPECIAL NOTES FOR SPEEDOMETER TEST
- Depress the accelerator pedal slowly, and gradually accelerate at the time of measurement.CAUTION: Rapid starting or quick acceleration/deceleration based on the speedometer tester without load setting may damage the transaxle.
- After the measurement, use the brake to decelerate gradually and stop.
- Depress the accelerator pedal slowly, and gradually accelerate at the time of measurement.
- Special note for using the chassis dynamometer. Always set an appropriate load before starting the test.CAUTION: Rapid starting or quick acceleration/deceleration with insufficient load may damage the transaxle.
