2002 Toyota Land CruiserFACTORY OEM SERVICE PROCEDURE

Power Window Control System: Troubleshooting

Malfunction Symptoms

Malfunction Symptoms See
Driver's Door Does Not Operate  1
Passenger's And All Rear Doors Do Not Operate By Using The Switches At Each Seat  2
Any Of Passenger's And Rear Doors Do Not Operate By Using The Switches Of Each Seat  3
Passenger's And All Rear Doors Are Not Controlled Remotely By Using The Master Switch (Switches Of Each Door Can Be Operated)  4
AUTO UP And AUTO DOWN Do Not Operate (Prepare A Normal Master Switch)  5
DOWN Operation Operates During Door Glass AUTO UP Operation  6
Even Though A Foreign Object Is Caught, DOWN Operation does not function  7
After Ignition Switch Has Been Turned To OFF By Using A Key, Power Window Function Does Not Operate  8

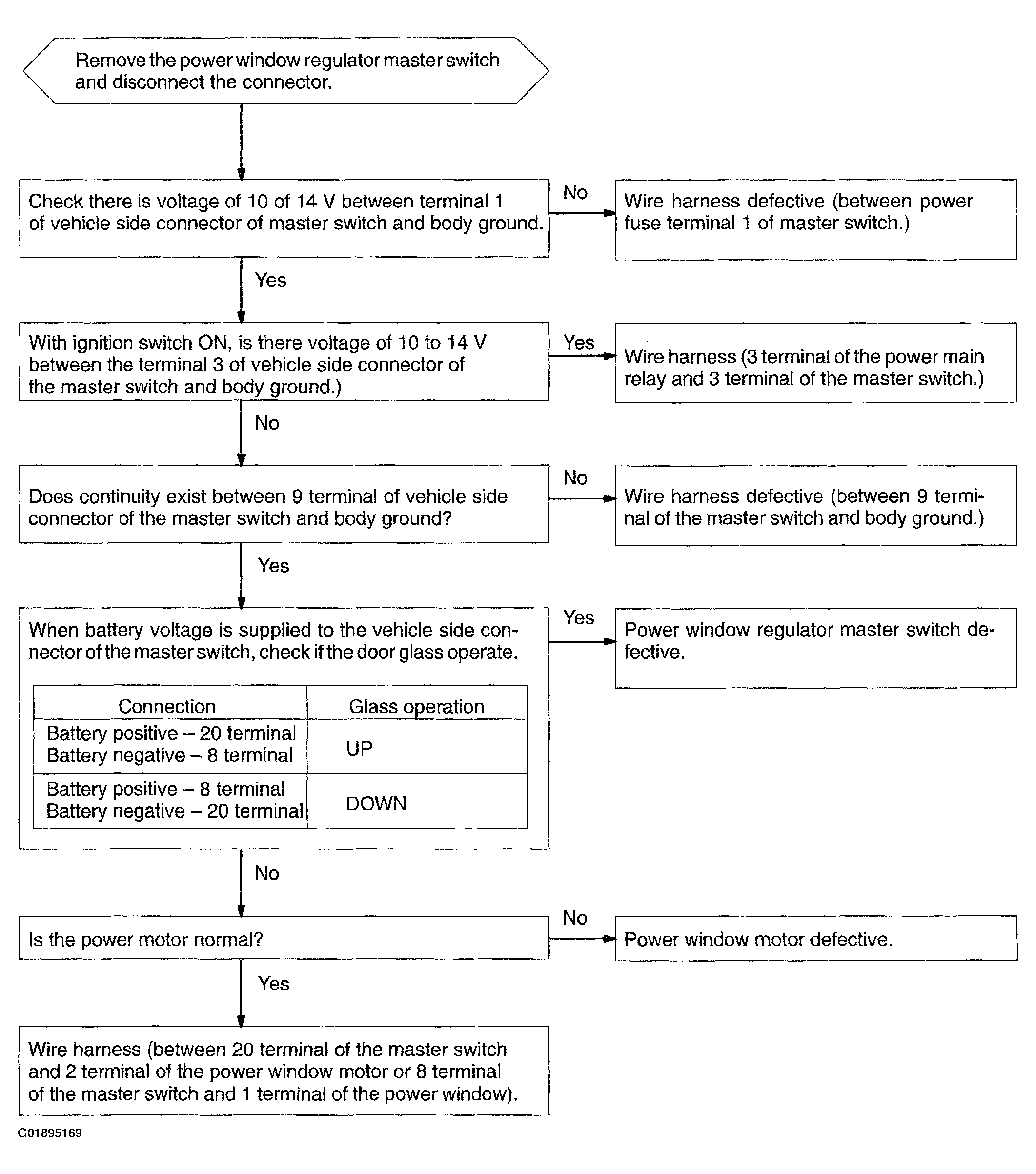

  1. Driver's Door Does Not Operate.
    Fig 1: Displaying Troubleshooting Work Flow
    G01895169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

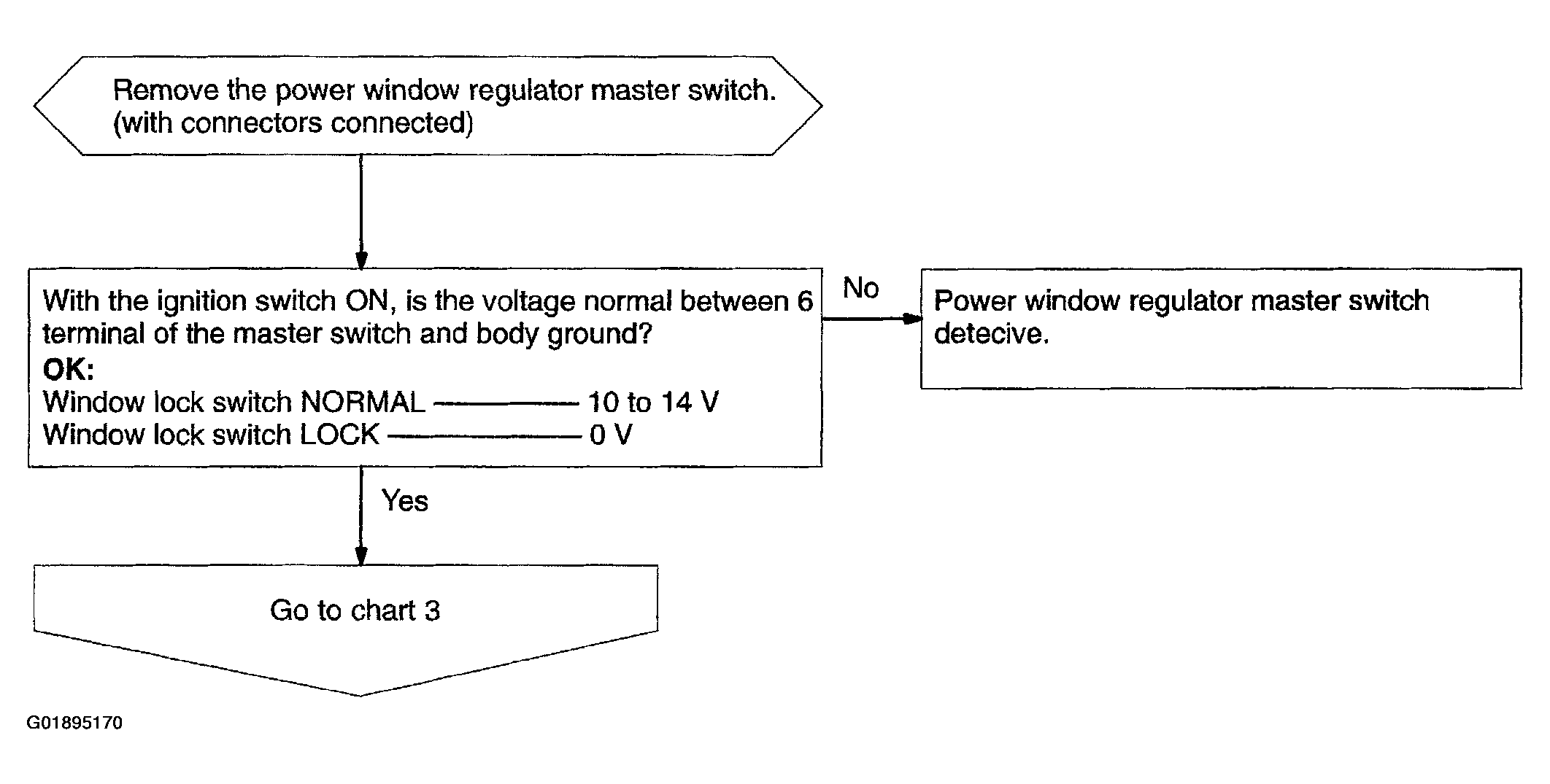

  2. Passenger's And All Rear Doors Do Not Operate By Using The Switches Of Each Seat.
    Fig 2: Displaying Troubleshooting Work Flow
    G01895170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

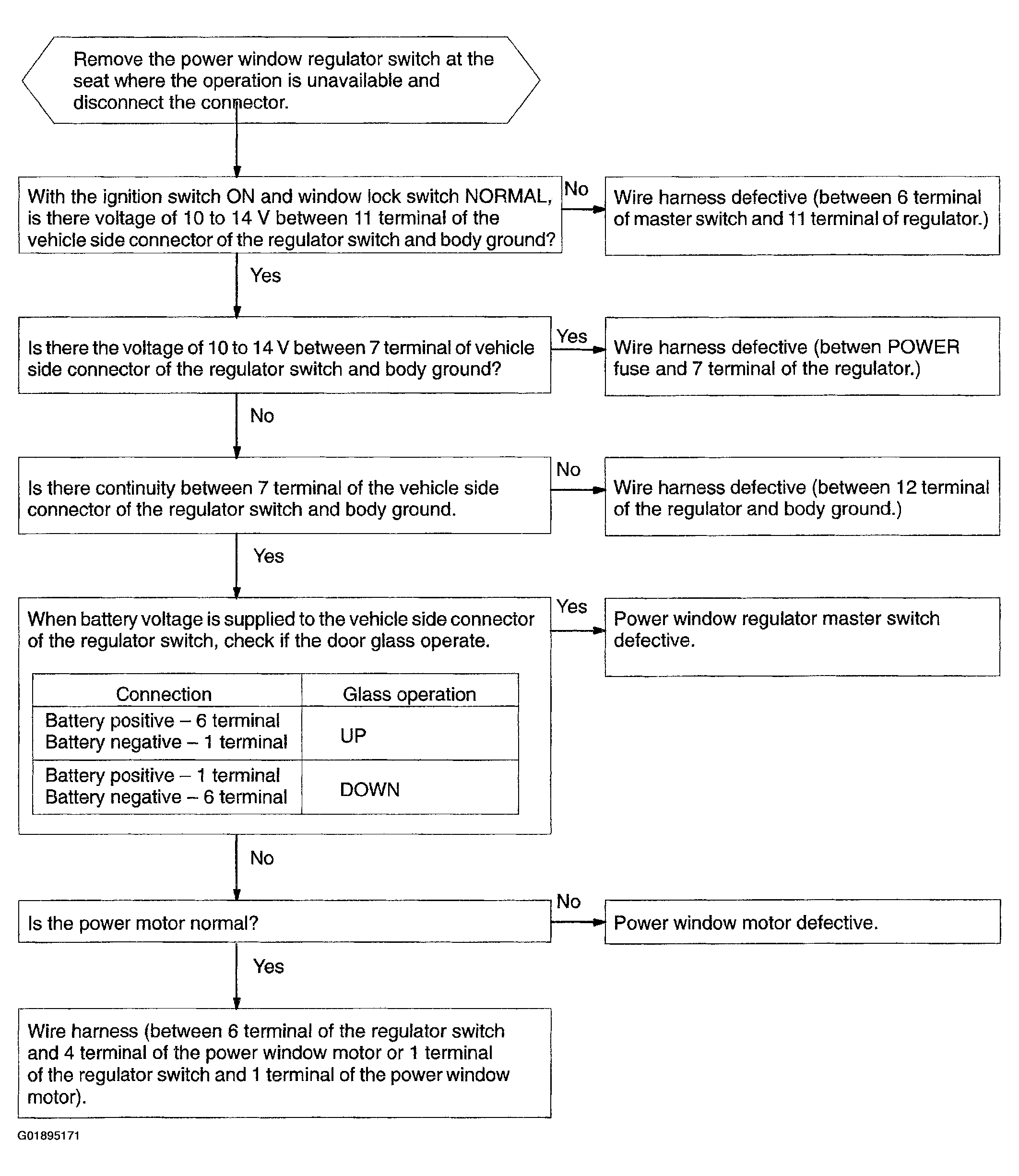

  3. Any Of Passenger's And All Rear Doors Does Not Operate By Using The Switches At Each Seat.
    Fig 3: Displaying Troubleshooting Work Flow
    G01895171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

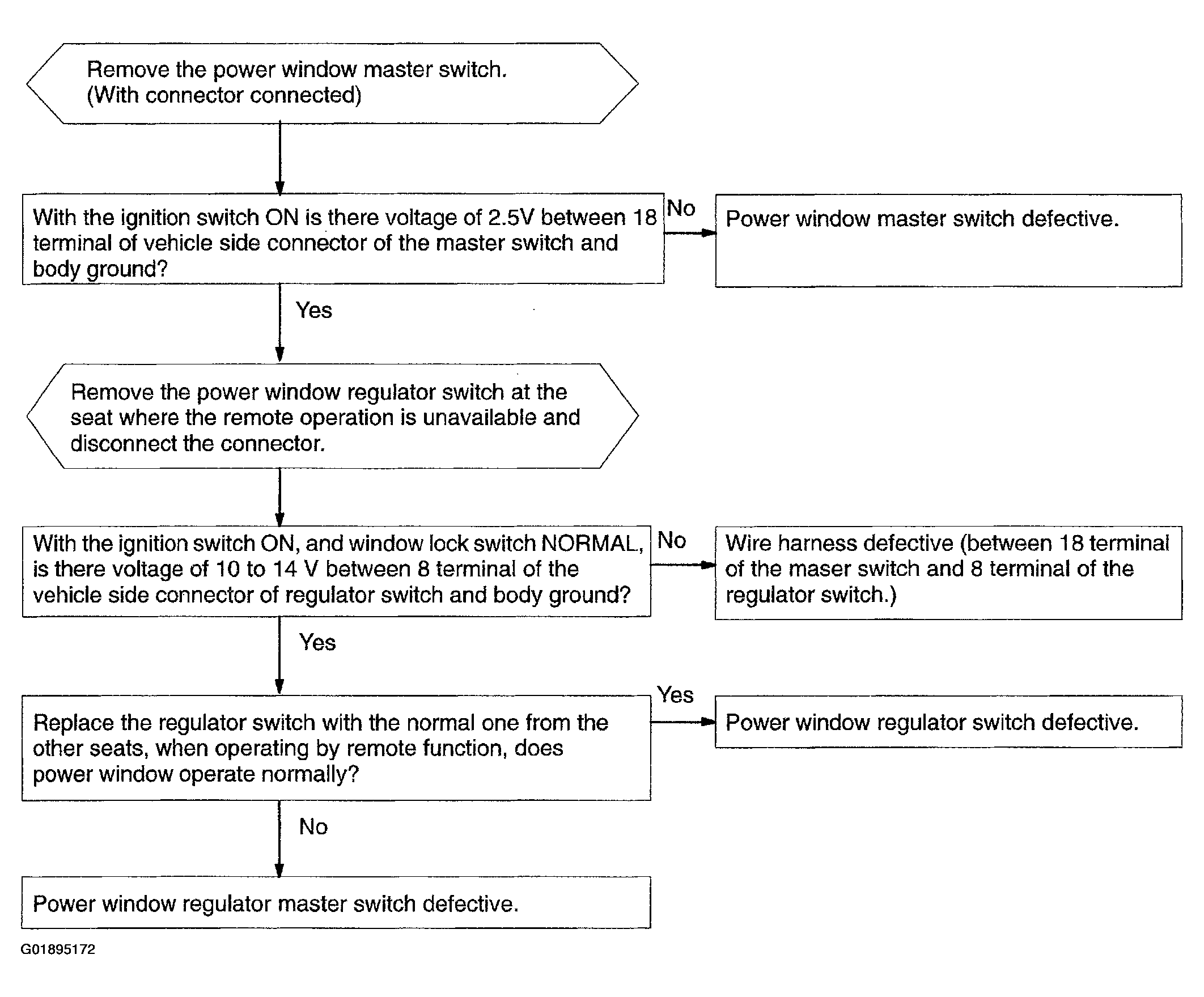

  4. Passenger's And All Rear Doors Are Not Controlled Remotely By Using The Master Switch. (Switches At Each Door Can Be Operated.)
    Fig 4: Displaying Troubleshooting Work Flow
    G01895172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

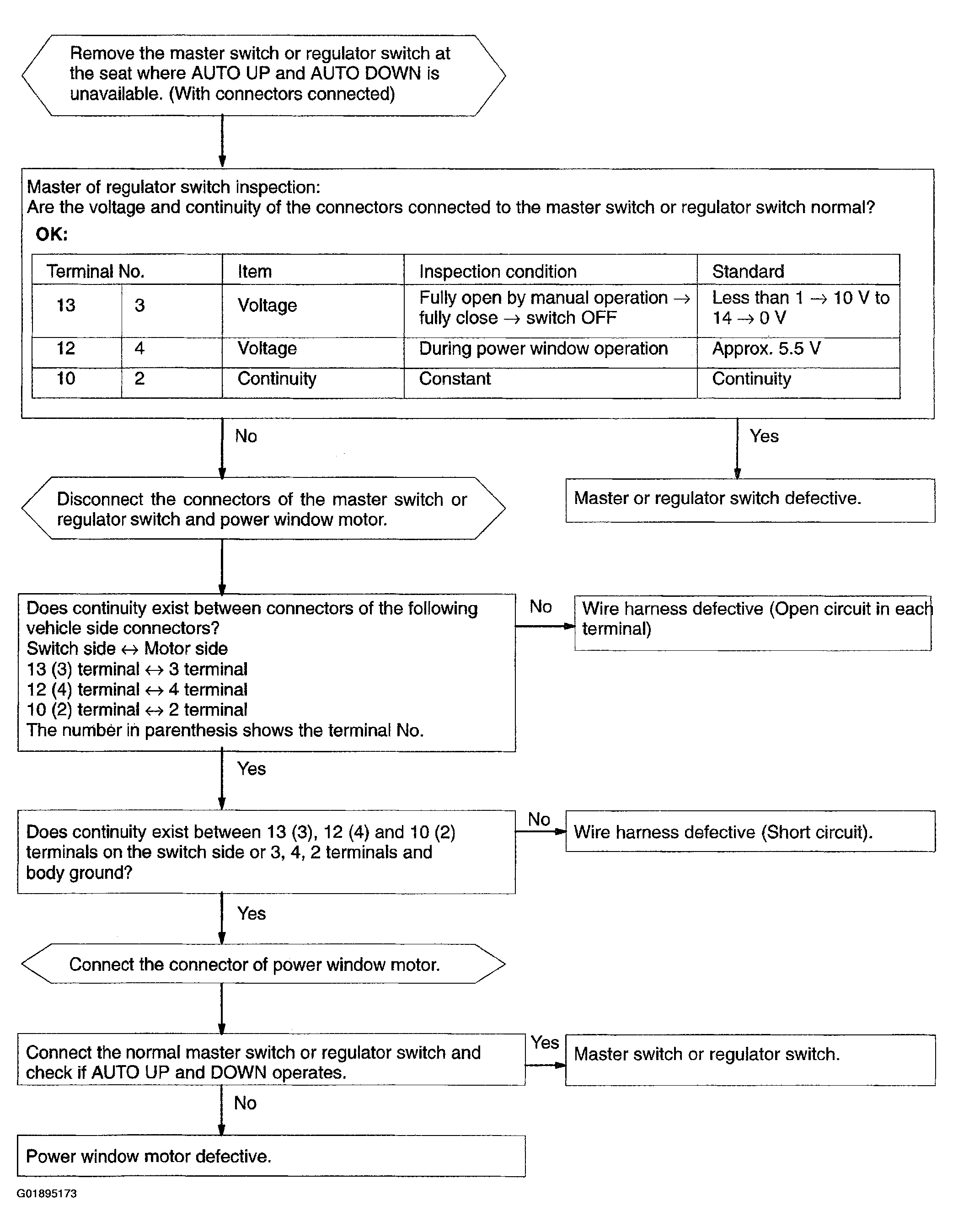

  5. AUTO UP And AUTO DOWN Do Not Operate. (Prepare A Normal Master Switch.)
    Fig 5: Displaying Troubleshooting Work Flow
    G01895173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

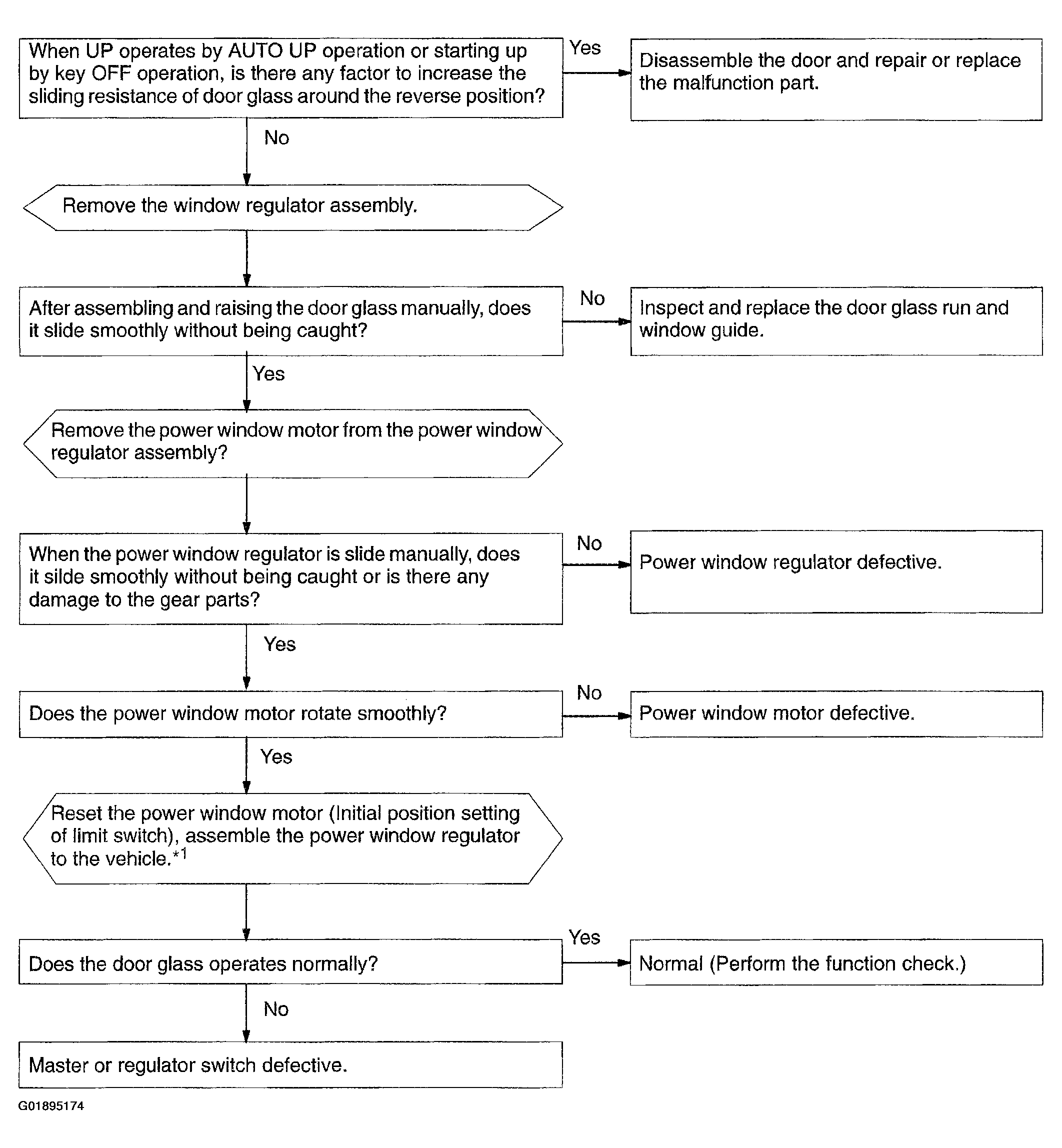

  6. DOWN Operates During Door Glass AUTO UP Operation.
    Fig 6: Displaying Troubleshooting Work Flow
    G01895174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

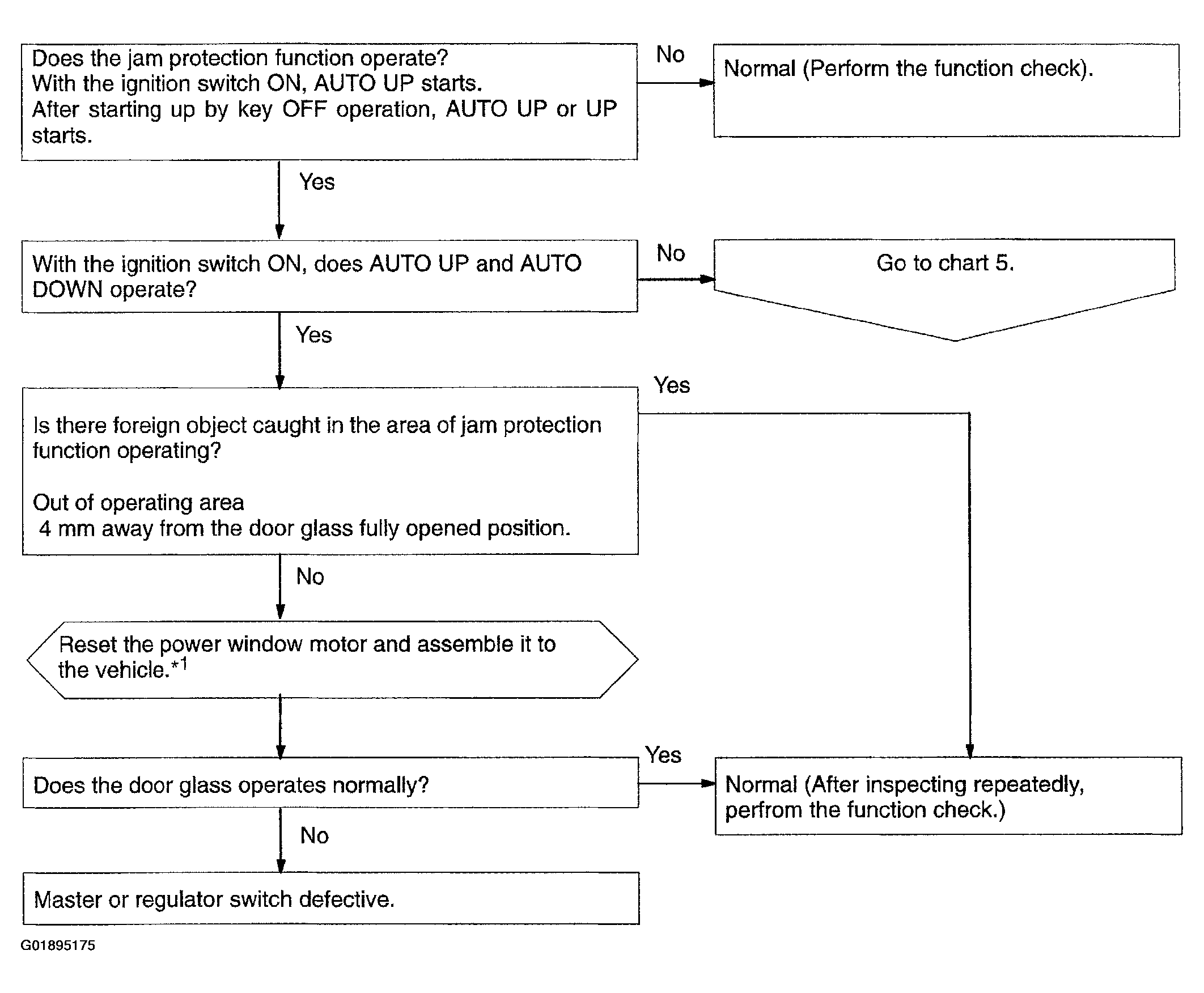

  7. Even Through A Foreign Object Is Caught, DOWN Operation Does Not Function.
    Fig 7: Displaying Troubleshooting Work Flow
    G01895175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

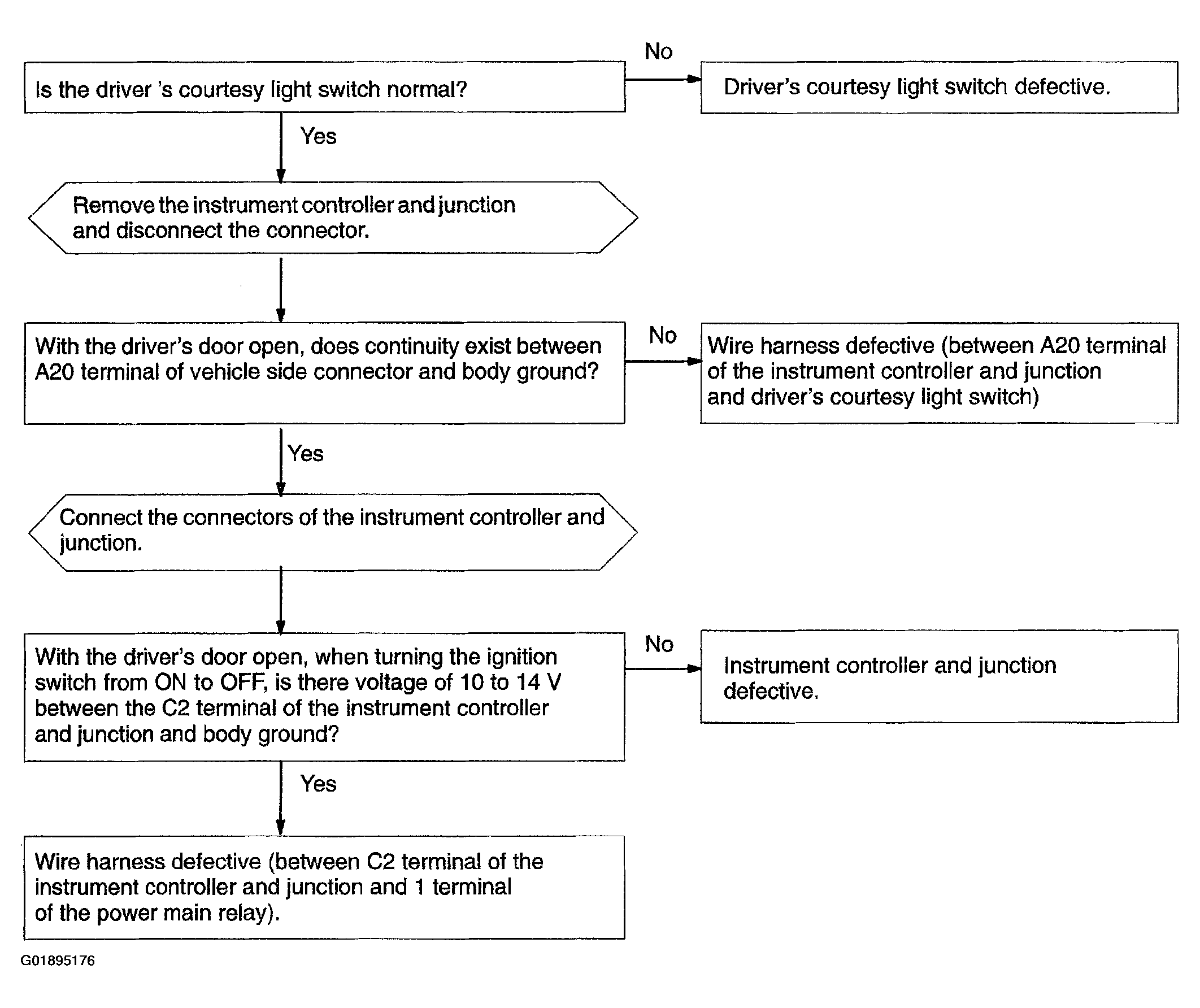

  8. After Ignition Switch Has Been Turned OFF By Using A Key, Power Window Function Does Not Operate.
    Fig 8: Displaying Troubleshooting Work Flow
    G01895176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
