For Vehicles Equipped With (VSC) System
- Confirm that the VSC warning light blinks.
- VSC system will be reset when the engine is restarted.
- Fasten the vehicle with lock chains.
- Notices When Using Drum Tester:

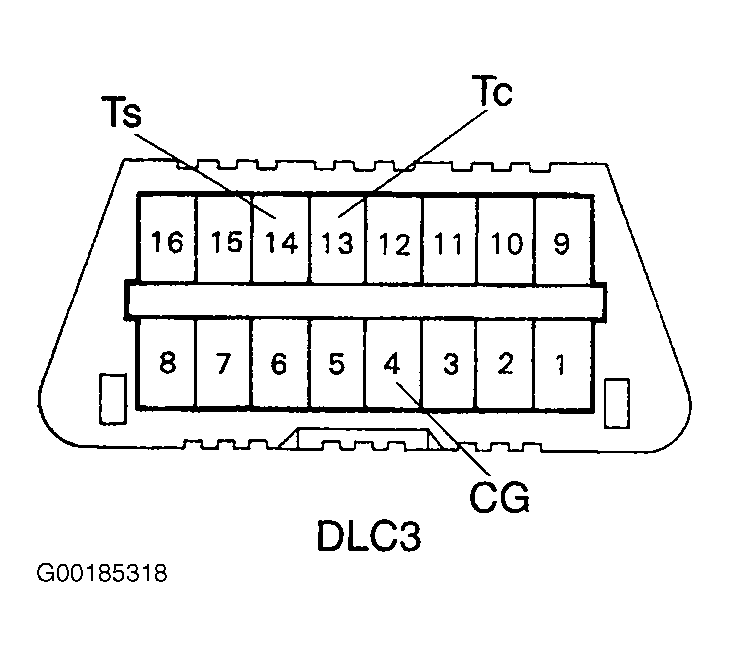

When using a drum tester, be sure to start the engine with the ignition OFF, and connect SST to the terminals TS and CG of the DLC3 before measurement in order to prohibit the VSC operation. See Fig 1. SST 09843-18040
- Notices Of Related Operations To VSC:
- Do not carry out unnecessary installation and removal, because it might disorder the adjustment of related parts to VSC.
- Be sure to carry out the preparation for operation and the confirmation of operation completion, in accordance with the instruction of the text, when the related operations to VSC are performed.
