2002 Toyota Avalon XLSFACTORY OEM SERVICE PROCEDURE
Component Locations
NOTE:

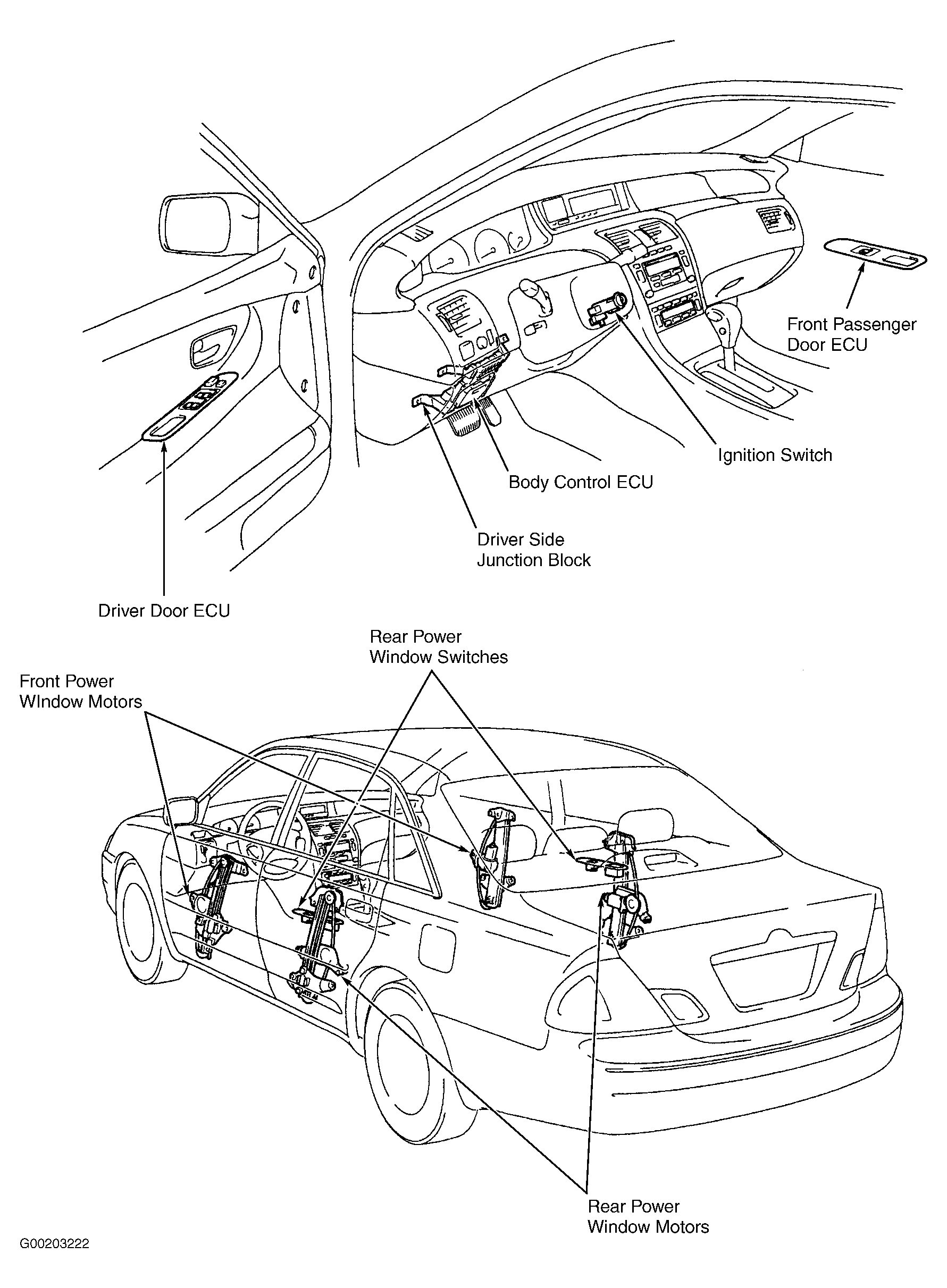

For power window component locations, see illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control ECU | Attached To Driver Side Junction Block |
| Driver Door ECU | Driver Door Armrest |
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column |
| Front Passenger Door ECU | Front Passenger Door Armrest |
| Ignition Switch | Right Side Of Steering Column |
| Power Window Motors | In Each Door Assembly |
| Rear Power Window Switches | On Each Rear Door |
