Power & Ground Circuits

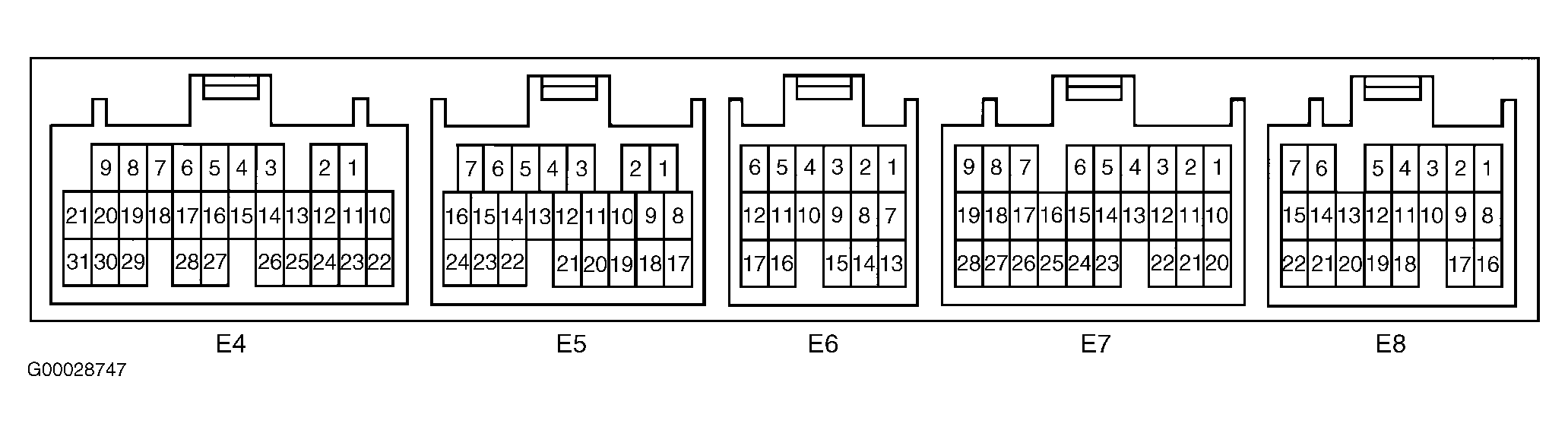

For testing of Engine Control Module (ECM) power and ground circuits, see ENGINE CONTROL MODULE POWER SOURCE CIRCUIT . Also see PIN VOLTAGE CHARTS article. For illustration of ECM location, see THEORY & OPERATION article. For identification of ECM electrical connector terminals, see Fig 1-Fig 11 .
