Driver Window DOWN Operation

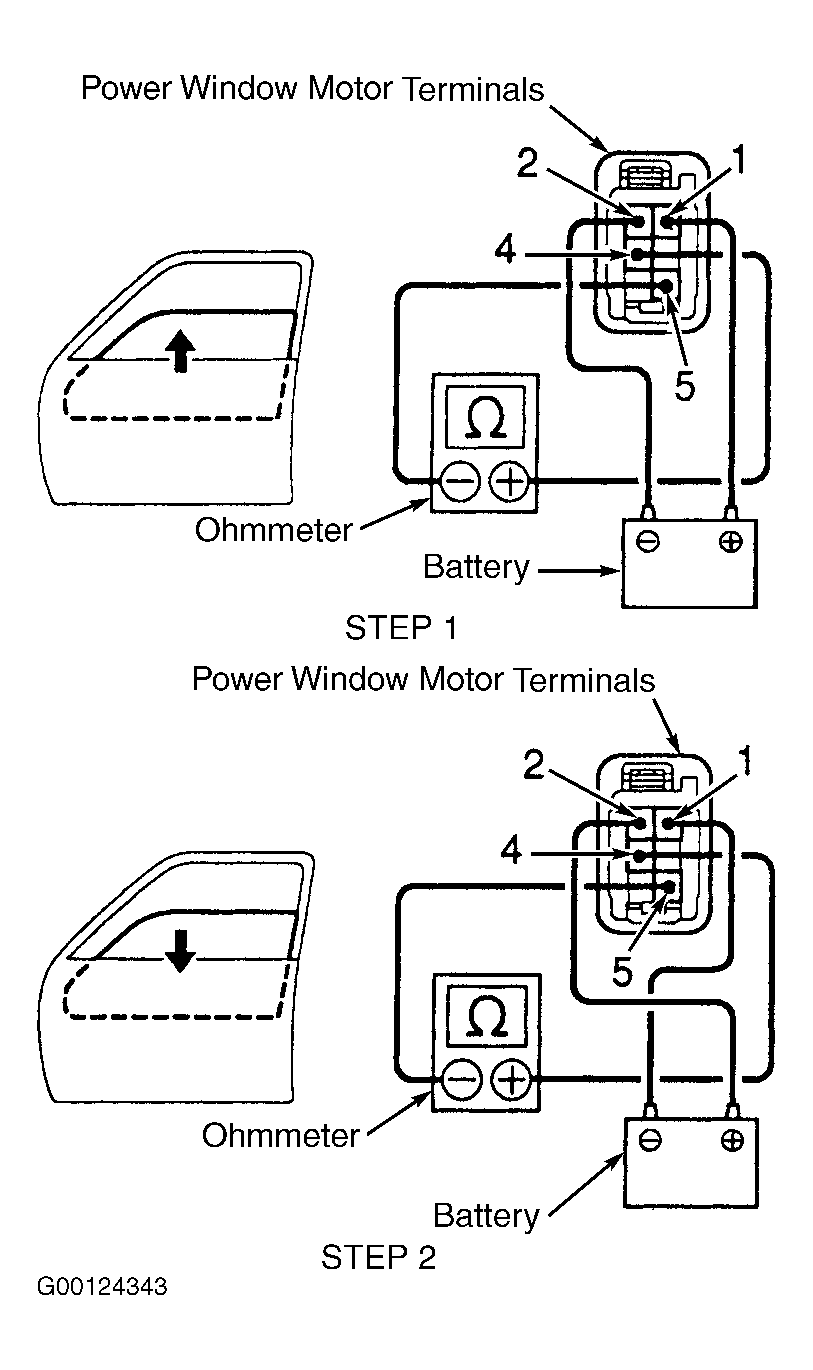

With power window motor 6-pin electrical harness connector disconnected, connect ohmmeter positive lead to terminal No. 4 and ohmmeter negative lead to terminal No. 5 of power window motor. Apply battery positive voltage to terminal No. 2 and battery negative voltage to terminal No. 1 of power window motor. See STEP 2 in illustration. See Fig 1. Ensure continuity exists when window goes down, and does not exist when window is fully opened. If continuity is not as specified, replace power window motor. See POWER WINDOW MOTOR under REMOVAL & INSTALLATION.
