2001 Toyota RAV4 Base, FWD, AutomaticFACTORY OEM SERVICE PROCEDURE
Power Window Motor
- Remove door panel for access to electrical connector at power window motor. Disconnect electrical connector for power window motor.

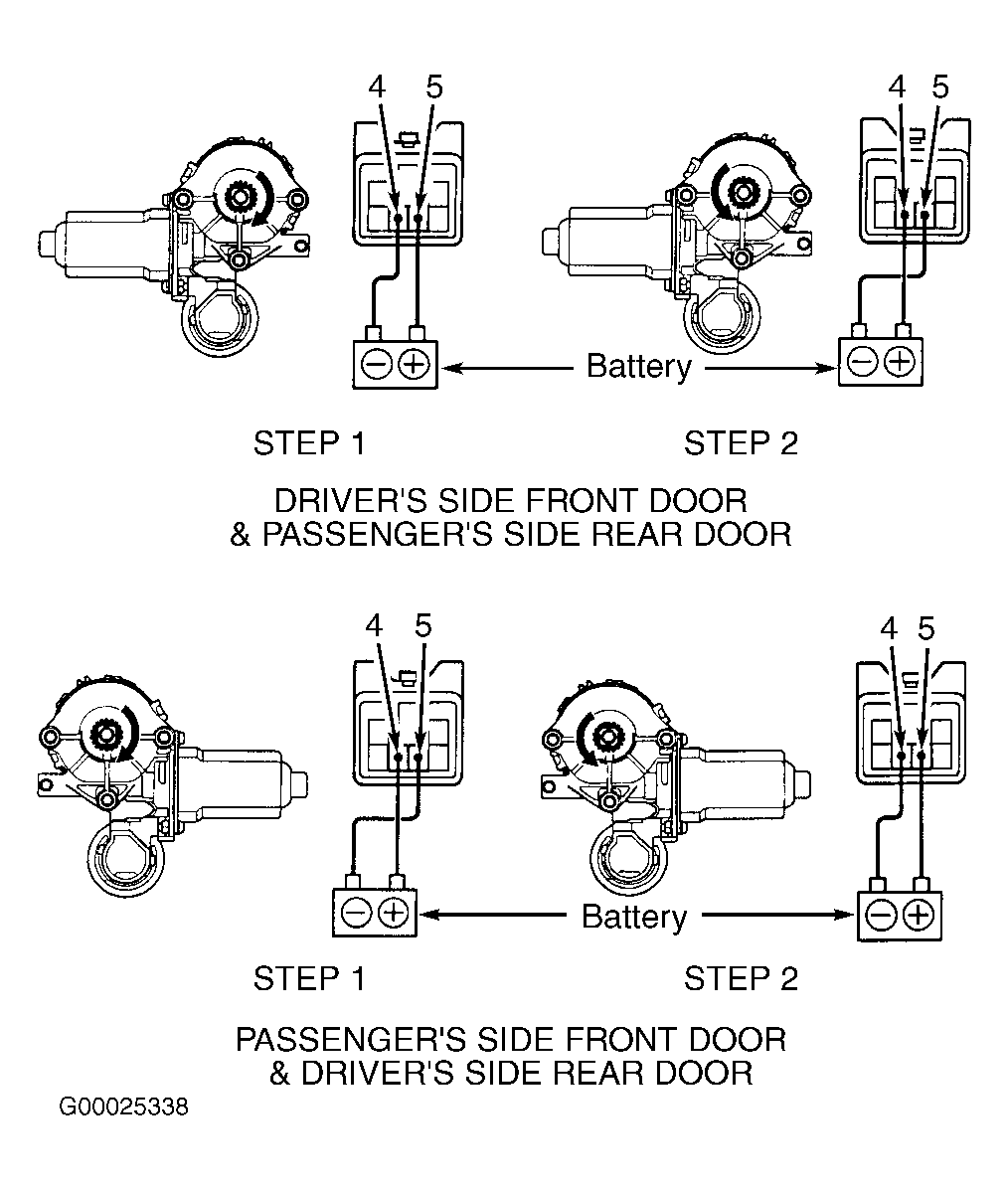

- Using jumper wires, apply battery voltage and ground to terminals No. 4 and 5 on electrical connector for power window motor and check that power window motor rotates clockwise. Perform STEP 1 in illustration. See Fig 1.
- Reverse jumper wires so polarity is reversed and check that power window motor rotates counterclockwise. Perform STEP 2 in illustration. See Fig 1. Replace power window motor if operation is not as specified. See POWER WINDOWS - TRUCKS article.
