2001 Toyota RAV4 Base, FWD, AutomaticFACTORY OEM SERVICE PROCEDURE

Power Window Master Switch

NOTE: Power window master switch is located on driver's side front door and power window switches are located on all other passenger doors. For testing of power window switch, see POWER WINDOW SWITCH .
  1. Power window master switch is located on driver's side front door. See Figure. Disconnect electrical connector from power window master switch. Note power window master switch electrical terminal identification and location of window lock switch. See Fig 1. When window lock switch is depressed, only driver's side front door power window will operate. When window lock switch is released, all the power windows will operate.
  2. Using ohmmeter, check that continuity is as specified between indicated power window master switch electrical terminals in relation to window switch application and window lock switch position. See POWER WINDOW MASTER SWITCH CONTINUITY  table. Replace power window master switch if continuity is not as specified.
    POWER WINDOW MASTER SWITCH CONTINUITY

    Application & Switch Position Switch Terminals No. Specification
    Driver's Side Front Door
    UP 1, 3 & 9; 4 & 7 Continuity
    OFF 1, 3 & 4; 1, 3 & 9 Continuity
    DOWN 1, 3 & 4; 7 & 9 Continuity
    Driver's Side Rear Door
    With Window Lock Switch Depressed (Windows Locked)
    UP 6 & 12 Continuity
    OFF 10 & 12 Continuity
    DOWN 6 & 10 Continuity
    With Window Lock Switch Released (Windows Unlocked)
    UP 1, 3 & 10; 6 & 12 Continuity
    OFF 1, 3 & 10; 1, 3 & 12 Continuity
    DOWN 1, 3 & 12; 6 & 10 Continuity
    Passenger's Side Front Door
    With Window Lock Switch Depressed (Windows Locked)
    UP 6 & 13 Continuity
    OFF 13 & 15 Continuity
    DOWN 6 & 15 Continuity
    With Window Lock Switch Released (Windows Unlocked)
    UP 1, 3 & 15; 6 & 13 Continuity
    OFF 1, 3 & 13; 1, 3 & 15 Continuity
    DOWN 1, 3 & 13; 6 & 15 Continuity
    Passenger's Side Rear Door
    With Window Lock Switch Depressed (Windows Locked)
    UP 6 & 18 Continuity
    OFF 16 & 18 Continuity
    DOWN 6 & 16 Continuity
    With Window Lock Switch Released (Windows Unlocked)
    UP 1, 3 & 16; 6 & 18 Continuity
    OFF 1, 3 & 16; 1, 3 & 18 Continuity
    DOWN 1, 3 & 18; 6 & 16 Continuity

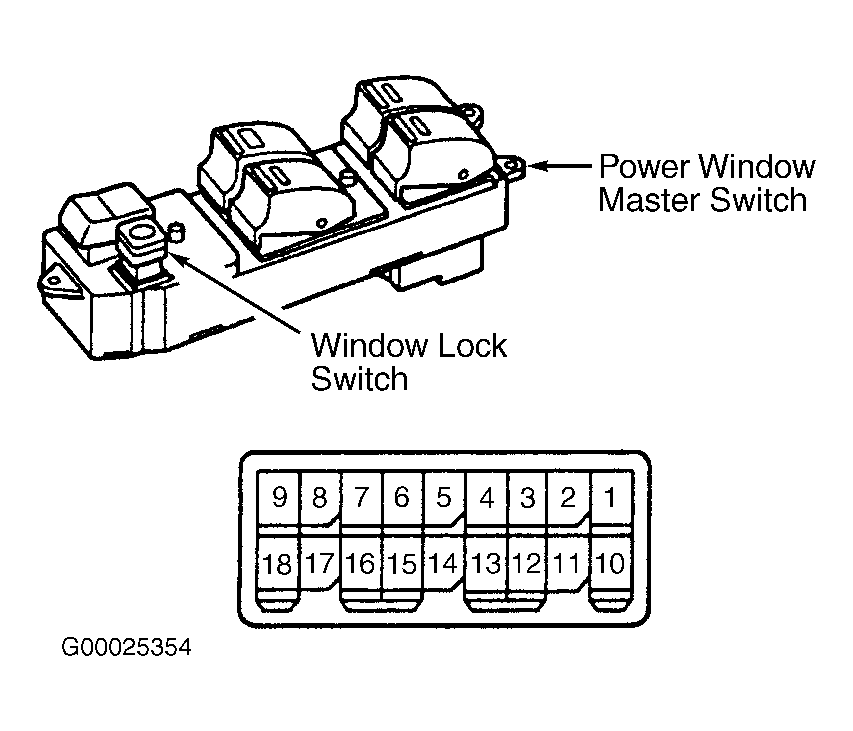

    Fig 1: Identifying Power Window Master Switch Electrical Terminals & Locating Window Lock Switch
    G00025354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
