2001 Toyota RAV4 Base, AWD, AutomaticFACTORY OEM SERVICE PROCEDURE
Headlight Relay
NOTE:
Headlight relay may also be referred to as H-LP relay.
- Ensure ignition is off. Remove headlight relay. Headlight relay is located in fuse/relay box at driver's side front corner of engine compartment and is marked as H-LP relay. See Figure.

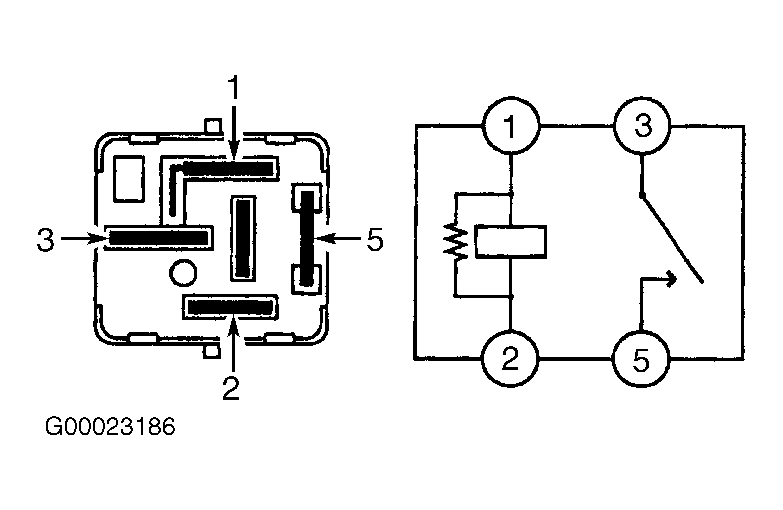

- Note identification of electrical terminals on headlight relay. See Fig 1. Using ohmmeter, check that no continuity exists between terminals No. 3 and 5 on headlight relay. Check that continuity exists between terminals No. 1 and 2 on headlight relay.
- Using jumper wires, apply battery voltage and ground to terminals No. 1 and 2 on headlight relay. Check that continuity now exists between terminals No. 3 and 5 on headlight relay. See Fig 1. Replace headlight relay if defective.
