Shift Lock System: Inspection
- INSPECT SHIFT POSITION SENSOR
- Remove the steering column upper cover and lower cover.
- Disconnect the shift position sensor connector.

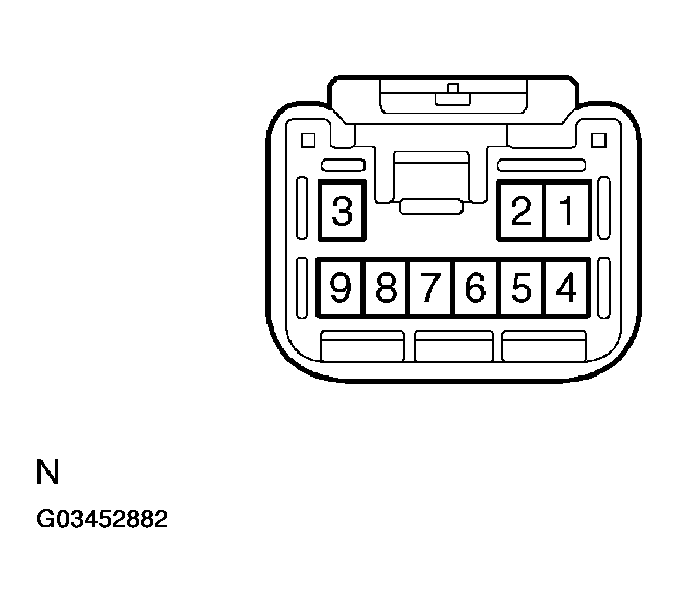

- Check continuity between terminals shown in SHIFT POSITION SENSOR TERMINALS CONTINUITY SPECIFICATIONS when the shift lever is moved to each position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SHIFT POSITION SENSOR TERMINALS CONTINUITY SPECIFICATIONSShift Position Terminal No. to continuity Terminal No. to continuity P 1-2 3-8-9 R 1-4 3-8-9 N 1-5 3-8-9 D 1-6 3-8-9 B 1-7 3-8-9 - Connect the shift position sensor connector.
- Install the steering column upper cover and lower cover.
- INSPECT SHIFT LOCK CONTROL ECU
Using a voltmeter, measure the voltage at each terminal.
NOTE: Do not disconnect the ECU connector.
