2001 Toyota PriusFACTORY OEM SERVICE PROCEDURE

On-Vehicle Repair

  1. REMOVE ENGINE UNDER COVER LH
  2. REMOVE OIL PUMP
    1. Remove the plug.
    2. Remove the O-ring from the plug.
      Fig 1: Removing O-Ring From Plug
      G03452719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 5 bolts and oil pump cover.

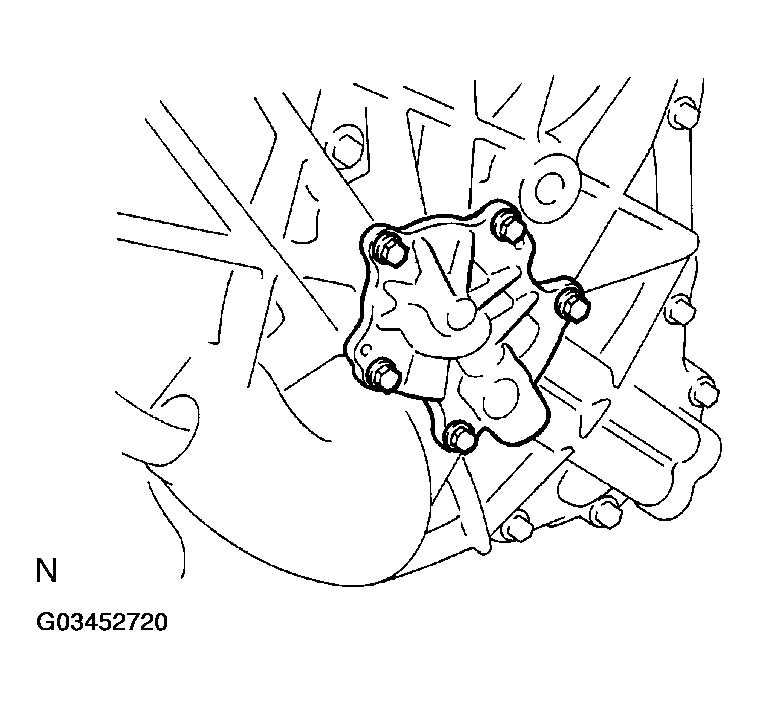

      Fig 2: Removing Oil Pump Cover
      G03452720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the O-ring.

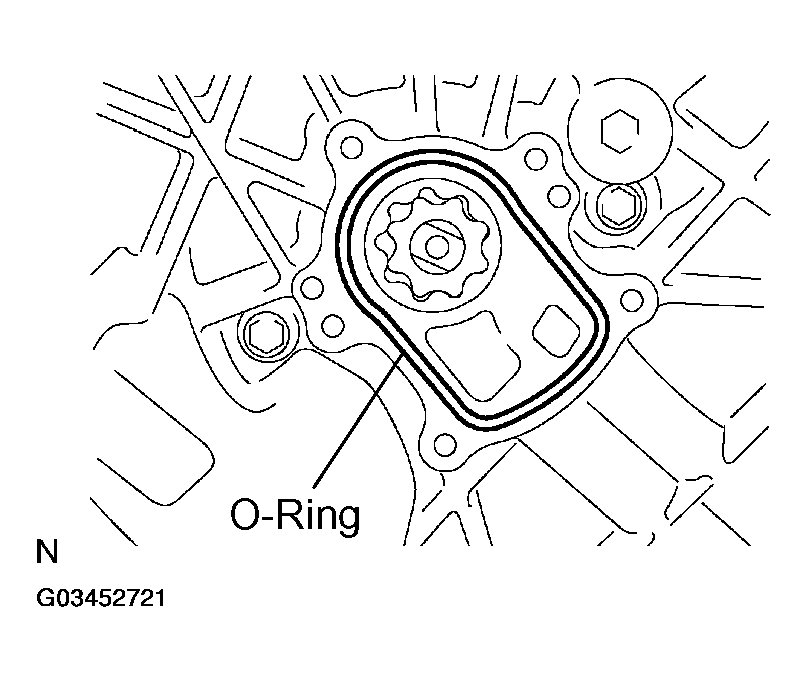

      Fig 3: Removing O-Ring
      G03452721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the oil pump driven rotor and drive rotor.

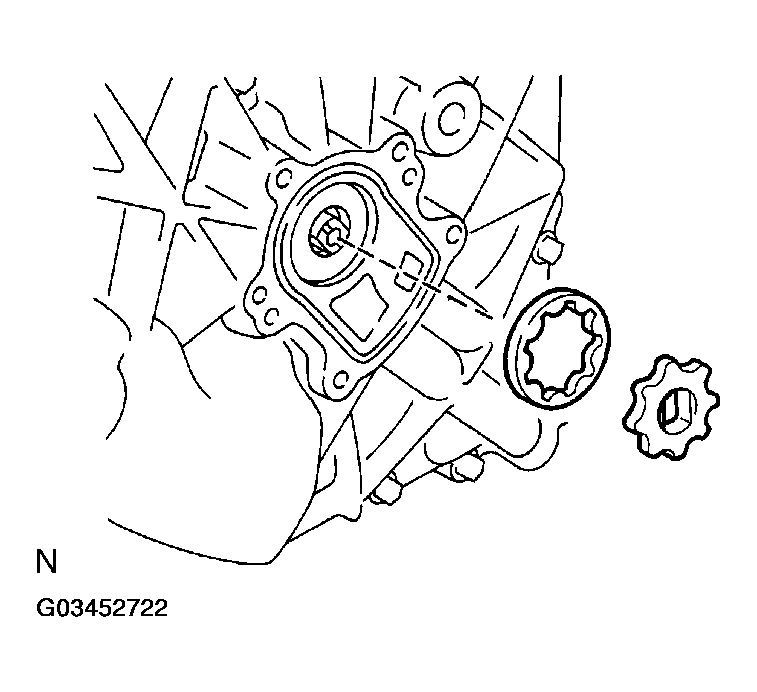

      Fig 4: Removing Oil Pump Driven Rotor And Drive Rotor
      G03452722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the oil pump drive shaft.

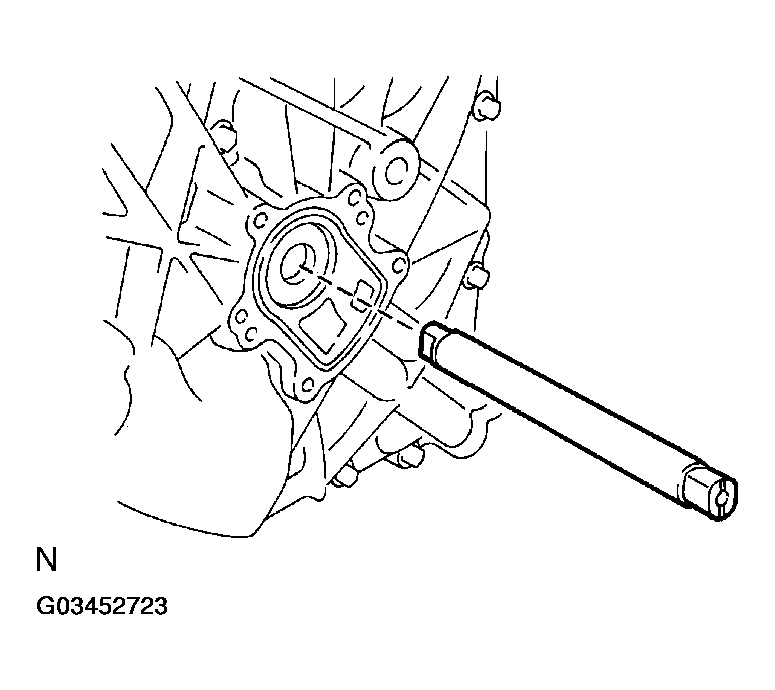

      Fig 5: Removing Oil Pump Drive Shaft
      G03452723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL OIL PUMP
    1. Apply ATF to each sliding part.
    2. Install the oil pump drive shaft.
    3. Install the oil pump driven rotor and drive rotor.
      Fig 6: Installing Oil Pump Driven Rotor And Drive Rotor
      G03452724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install a new O-ring.

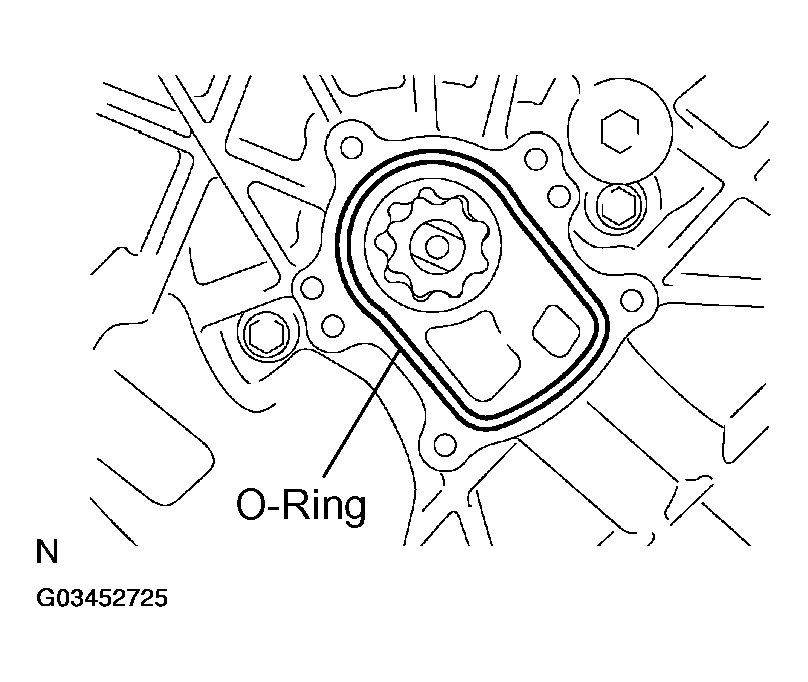

      Fig 7: Installing O-Ring
      G03452725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Apply liquid sealer to 2 or 3 threads of the bolt end.

      Sealant Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

      Fig 8: Locating Liquid Sealer Applying Point
      G03452726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the oil pump cover with the 5 bolts.

      Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

    7. Install a new O-ring and the plug.

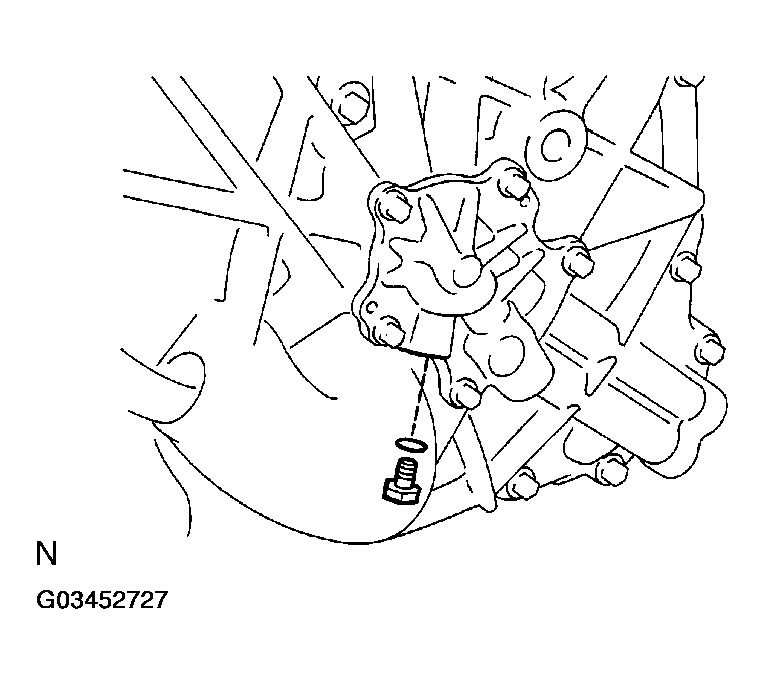

      Fig 9: Installing O-Ring And Plug
      G03452727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.35 N.m (75 kgf.cm, 65 in..lbf)
