HV Battery: Reassembly

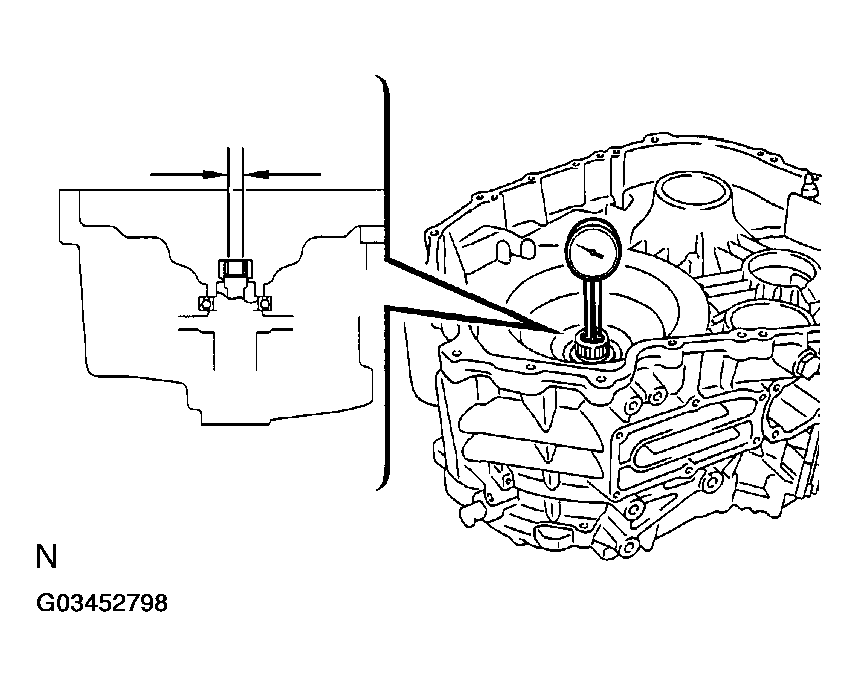

- INSPECT ROTOR BUSH OF MG2 ASSEMBLY
Using a dial indicator, measure the inside diameter of the rotor bush.
Standard diameter:
20.025-20.046 mm (0.78838-0.78921 in.)
Maximum diameter:
20.096 mm (0.79118 in.)
If the inside diameter exceeds the limit, replace the MG2 assembly.

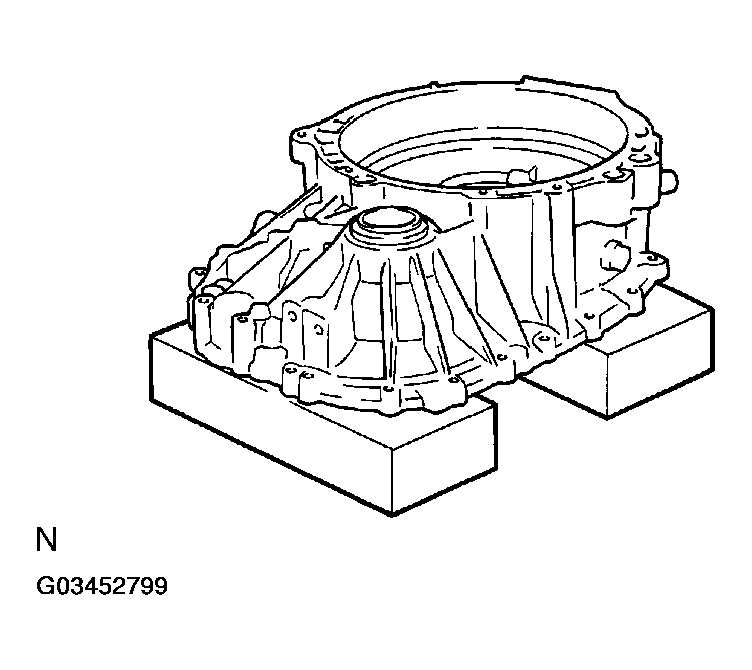

- PLACE WOOD BLOCK UNDER MG1 ASSEMBLY TO STABILIZE

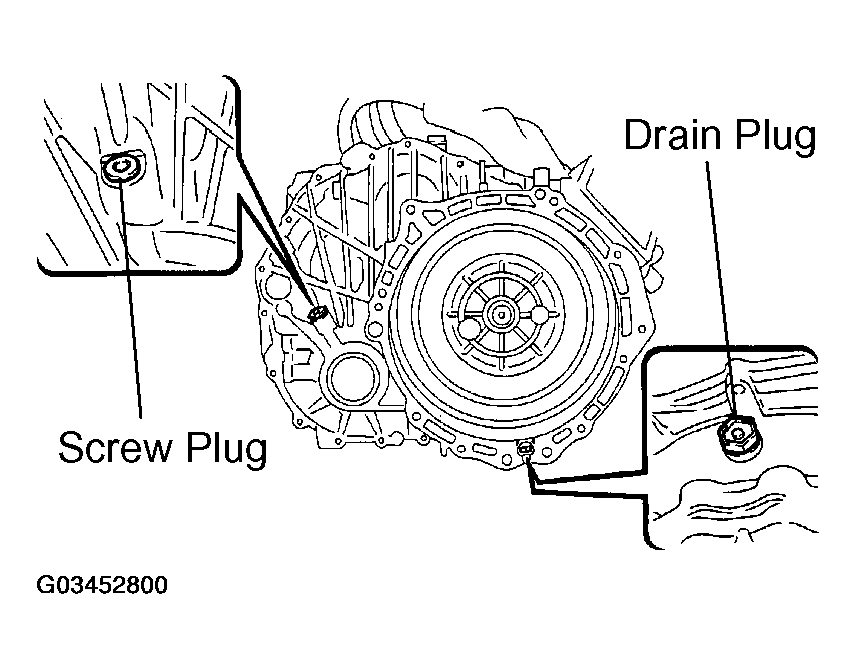

- INSTALL DRAIN PLUG AND SCREW PLUG (MG1 side)
- Apply liquid sealer to the screw plug and install it to the MG1 assembly with a hexagon wrench.
Sealant:
Part No. 08833-00080, TREE BOND 1344, LOCTITE
242 or equivalent
Torque: 12.7 N.m (130 kgf.cm, 9 ft.lbf)
- Install a new gasket and the drain plug.
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
- Apply liquid sealer to the screw plug and install it to the MG1 assembly with a hexagon wrench.

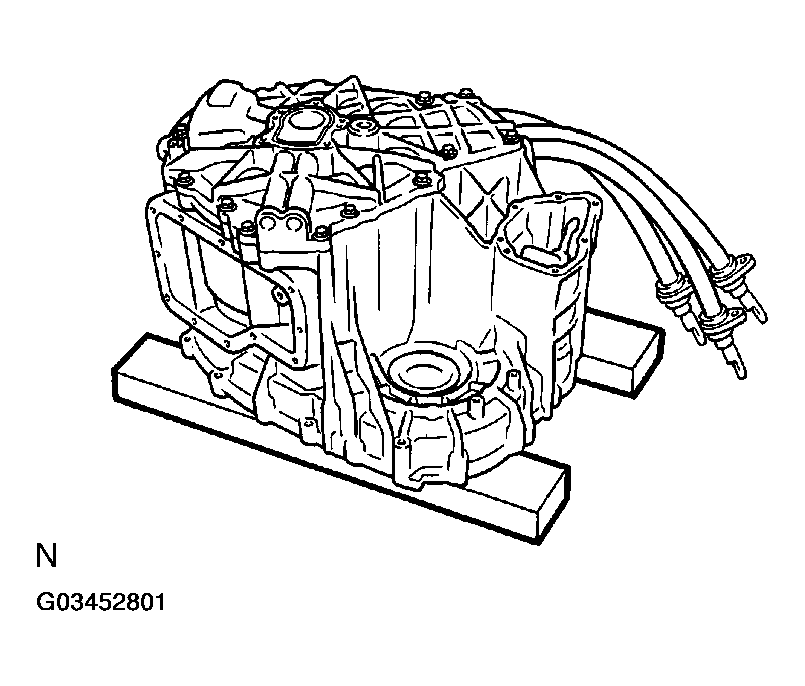

- PLACE WOOD BLOCK UNDER MG2 ASSEMBLY
