HV Battery: Disassembly
- INSTALL ENGINE HUNGER

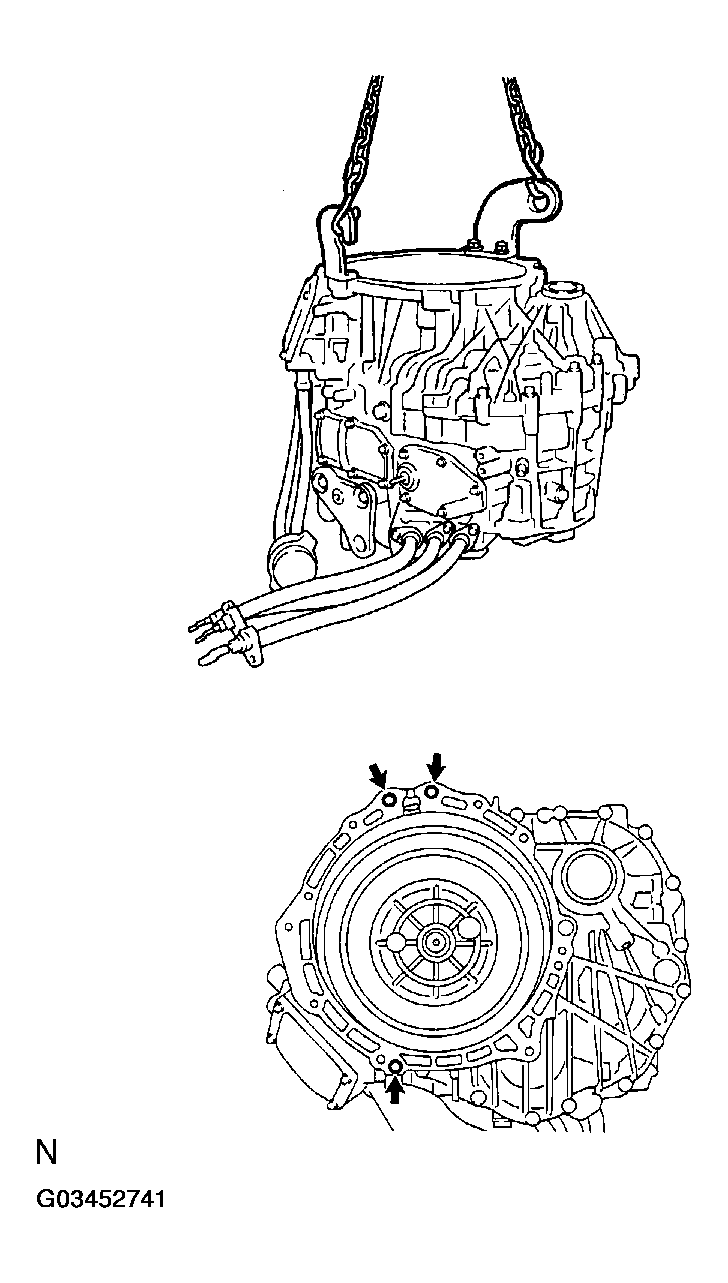

Install the engine hanger onto the MG1 side as shown in Fig 1, and lift it up by a chain device.
Engine hanger part No.: 12281-67070, S1228-11781
Bolt part No.: 91642-81045 91642-81265 2 pieces
Nut part No.: 90178-10001 90179-12147 2 pieces
