2001 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Counter Driven Gear: Reassembly

INSTALL NEW TAPERED ROLLER BEARING (MG1 SIDE)
Using SST and a press, press in a new tapered roller bearing. SST 09608-06041

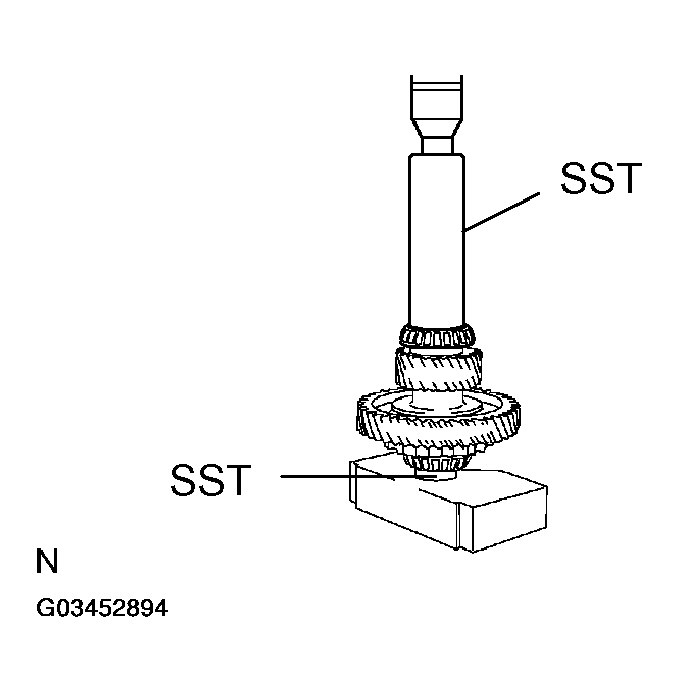

Fig 1: Installing Tapered Roller Bearing (MG1 Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NEW TAPERED ROLLER BEARING (MG2 SIDE)

Using SST and a press, press in a new tapered roller bearing. SST 09608-06041, 09950-60010 (09951-00370)

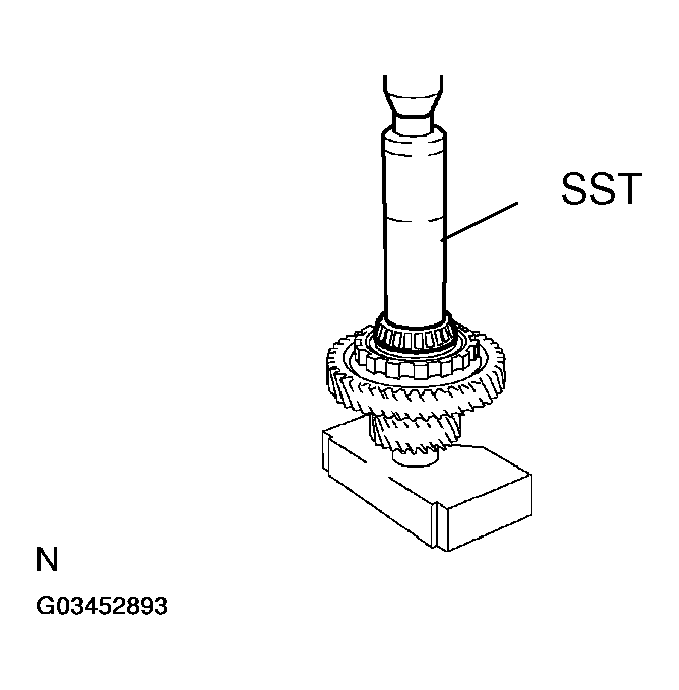

Fig 2: Installing Tapered Roller Bearing (MG2 Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
