2001 Toyota PriusFACTORY OEM SERVICE PROCEDURE

Counter Drive Gear: Disassembly

REMOVE BALL BEARING LH (MG2 SIDE)
Using SST and a press, drive out the ball bearing.

SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

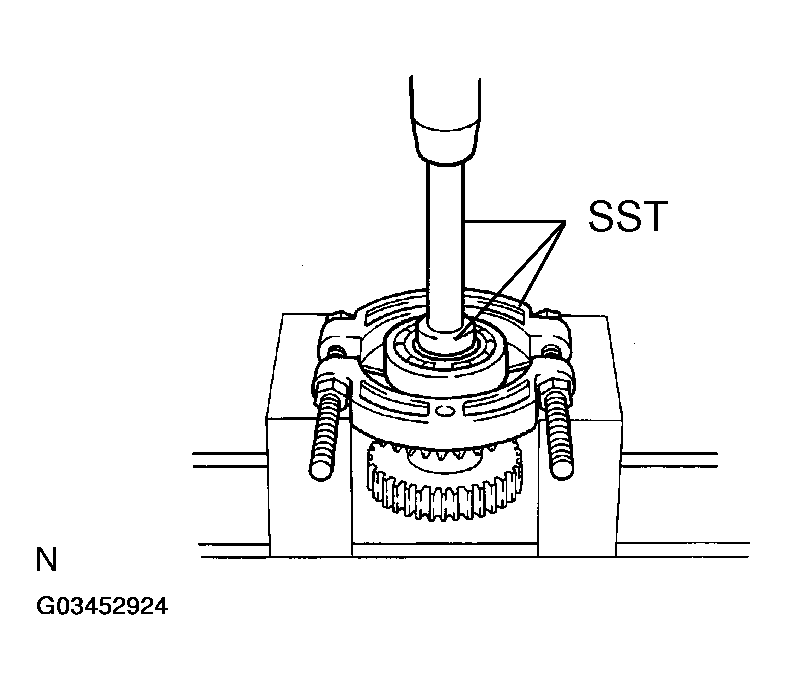

Fig 1: Removing Ball Bearing LH (MG2 Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BALL BEARING RH (MG2 SIDE)
1. Using SST and a press, drive out the ball bearing.
  SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

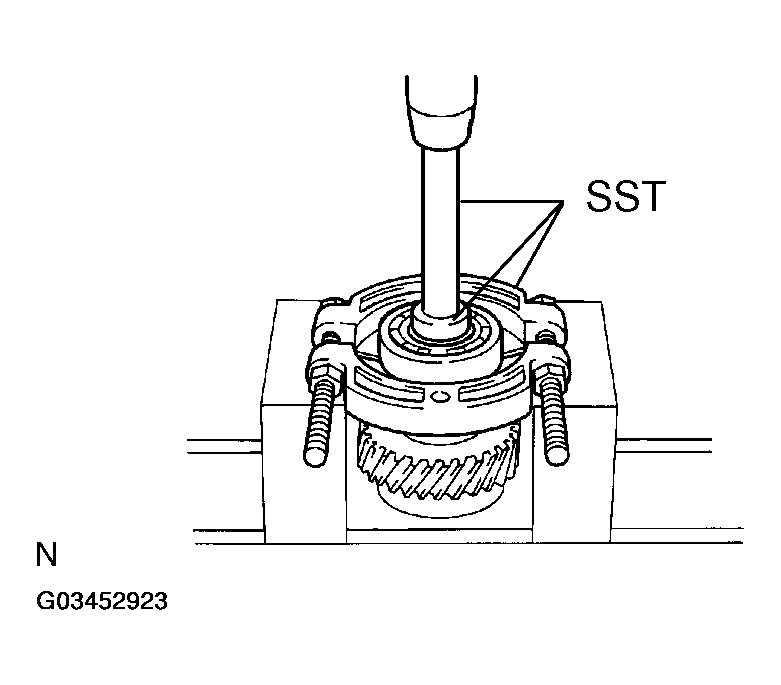

  Fig 2: Removing Ball Bearing RH (MG2 Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
