2001 Toyota PriusFACTORY OEM SERVICE PROCEDURE
Column Shift Assembly: Removal
NOTE:
Do not disassemble the shift lever assembly.
- REMOVE STEERING WHEEL PAD (See REMOVAL )
- REMOVE STEERING WHEEL (See REMOVAL )
- REMOVE INSTRUMENT LOWER FINISH PANEL (See REMOVAL & INSTALLATION (PRIUS) )
- REMOVE COLUMN LOWER AND UPPER PANELS (See REMOVAL )
- REMOVE COMBINATION SWITCH (See REMOVAL )

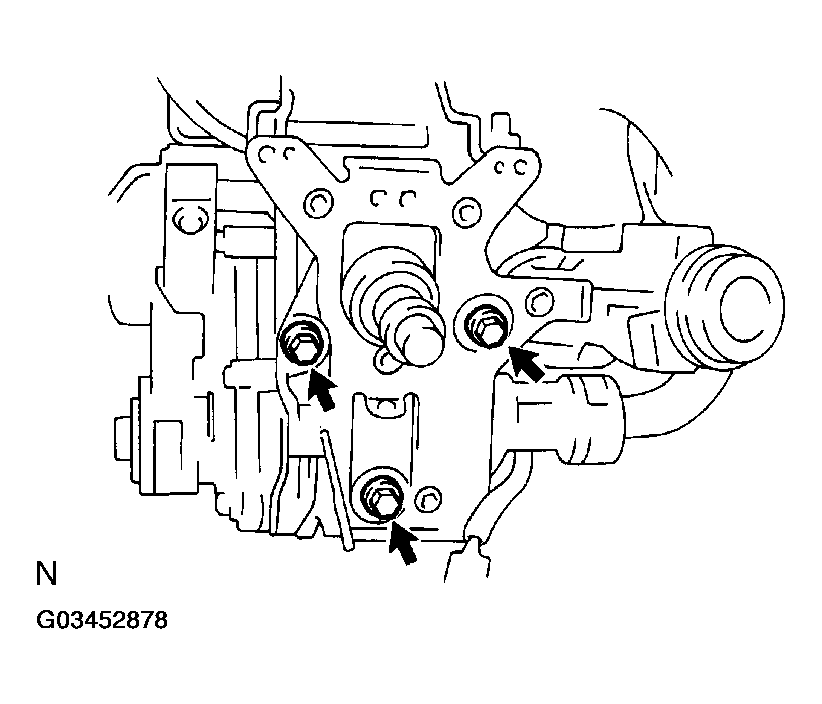

- REMOVE SHIFT LEVER ASSEMBLY
- Remove the 3 bolts.
- Disconnect the shift lever connector.
- Disconnect the shift lever assembly and transmission control cable (See REMOVAL ).
- Remove the shift lever assembly.
