Ignition Timing: Inspection
- Activate Transit To Inspection Mode And Warm Up Engine (
PRECAUTION
)
.
Allow the engine to warm up to normal operating temperature.

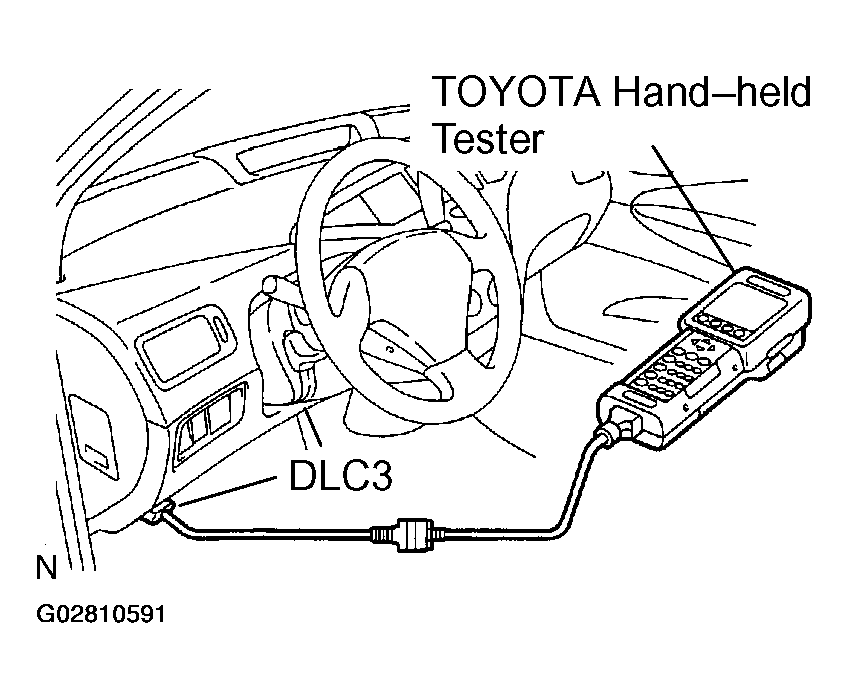

- Connect Toyota Hand-Held Tester
- Connect the TOYOTA hand-held tester to the DLC3.
- Please refer to the TOYOTA hand-held tester operator's for further details.

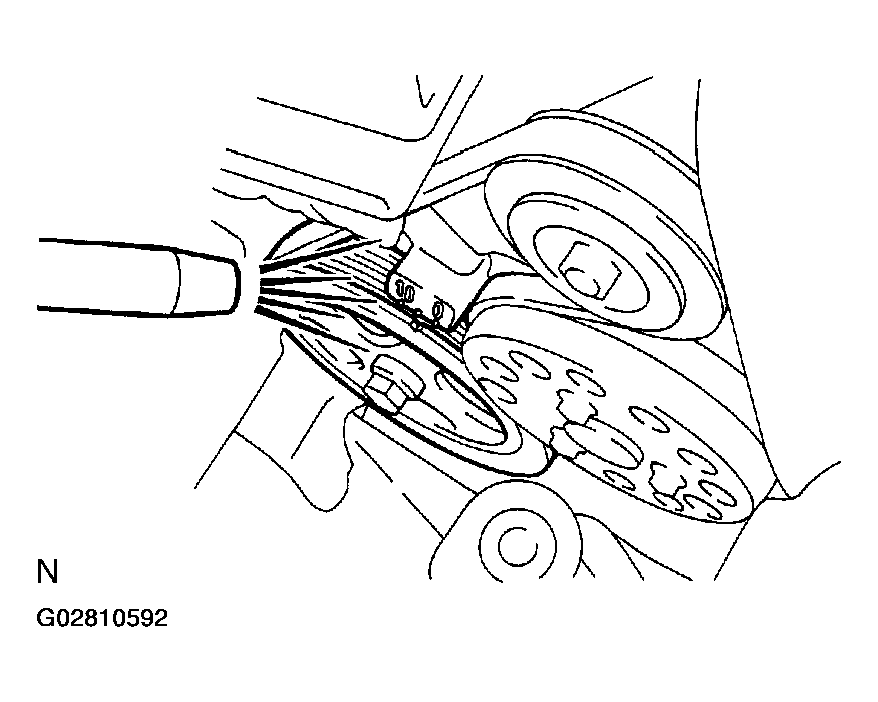

- Connect Timing Light To Engine
.
Using a timing light, check the ignition timing.
Ignition timing: 7 - 15° BTDC @ idle (Transmission in parking range)
- Disconnect Timing Light From Engine .
- Disconnect Toyota Hand-Held Tester .
- Stop Engine .
